AVENAR panel AVENAR panel series | en 17
Bosch Sicherheitssysteme GmbH
System manual
2022-07 | 5.0 | F.01U.378.910
In combination with an AVENAR panel 8000, standard or premium license, an AVENAR keypad
8000 can be used as a redundant panel controller. Only in this case the rail connector is
needed.
Installation
Refer to the installation guide for the FPE-8000-FMR Remote keypad (F.01U.347.558) available
for download at www.boschsecurity.com.
2.4 Housings for frame Installation

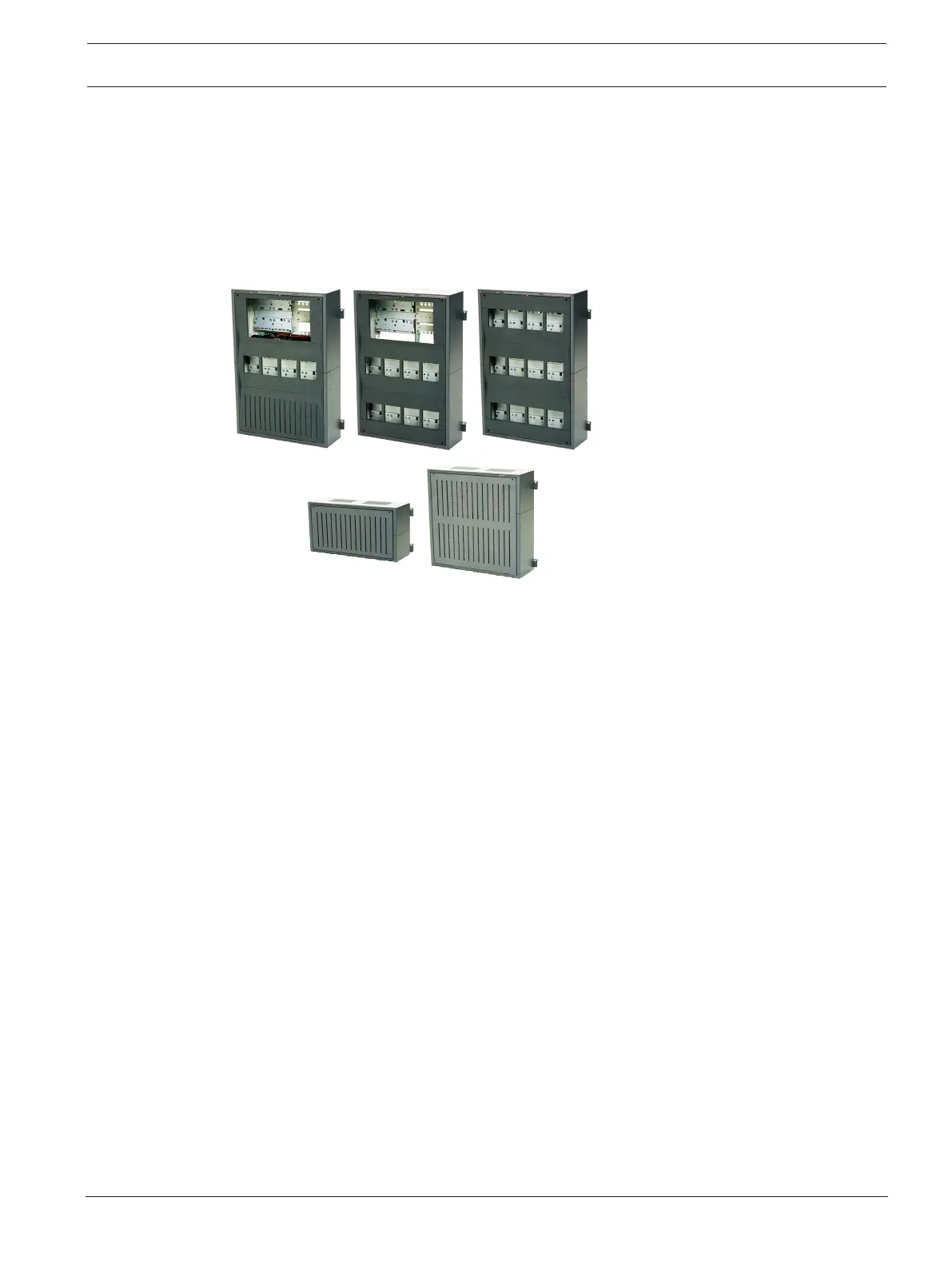

Figure2.3: Housings for frame installation
Frame installation housings are always used in conjunction with the associated mounting
frame.
The housings are hooked into the mounting frame and can be swiveled to the front for
installation and servicing. The mounting frames are screwed to the wall surface and hold the
pre-cabling.
Alternatively to surface mounting, installation in 482.6mm (19") racks is also possible using
special installation kits.
12V/45Ah batteries can be used in the frame installation housing.
The modular system makes it easy to extend the system.
Housing Designs and Combinations
Two frame installation housings are available as a base unit:
– CPH0006A (for 6 modules) or
– MPH0010A (for 10 modules)
These housings can accommodate a panel controller with an operating and display unit.
The CPH0006A and MPH0010A basic housings can be extended to meet individual
requirements using:
– EPH0012A extension housing for an additional 12 modules, frame installation
– PSF0002A or PMF0004power supply housing for two or four 12V/45Ah batteries
respectively and an additional power supply unit.
– USF0000A Universal Housing Small, Frame Installation.
A power supply bracket for a UPS power supply is fitted ex-works in housing units
CPH0006A, PSF0002A and PMF0004A.
Mounting Frames
All mounting frames have integrated terminal blocks for the mains supply, integrated junction
boards, as well as permanently installed cable ducts to facilitate clear and tidy cable routing.
The mounting frames are available in three sizes:
