2.5 Housings for wall mounting

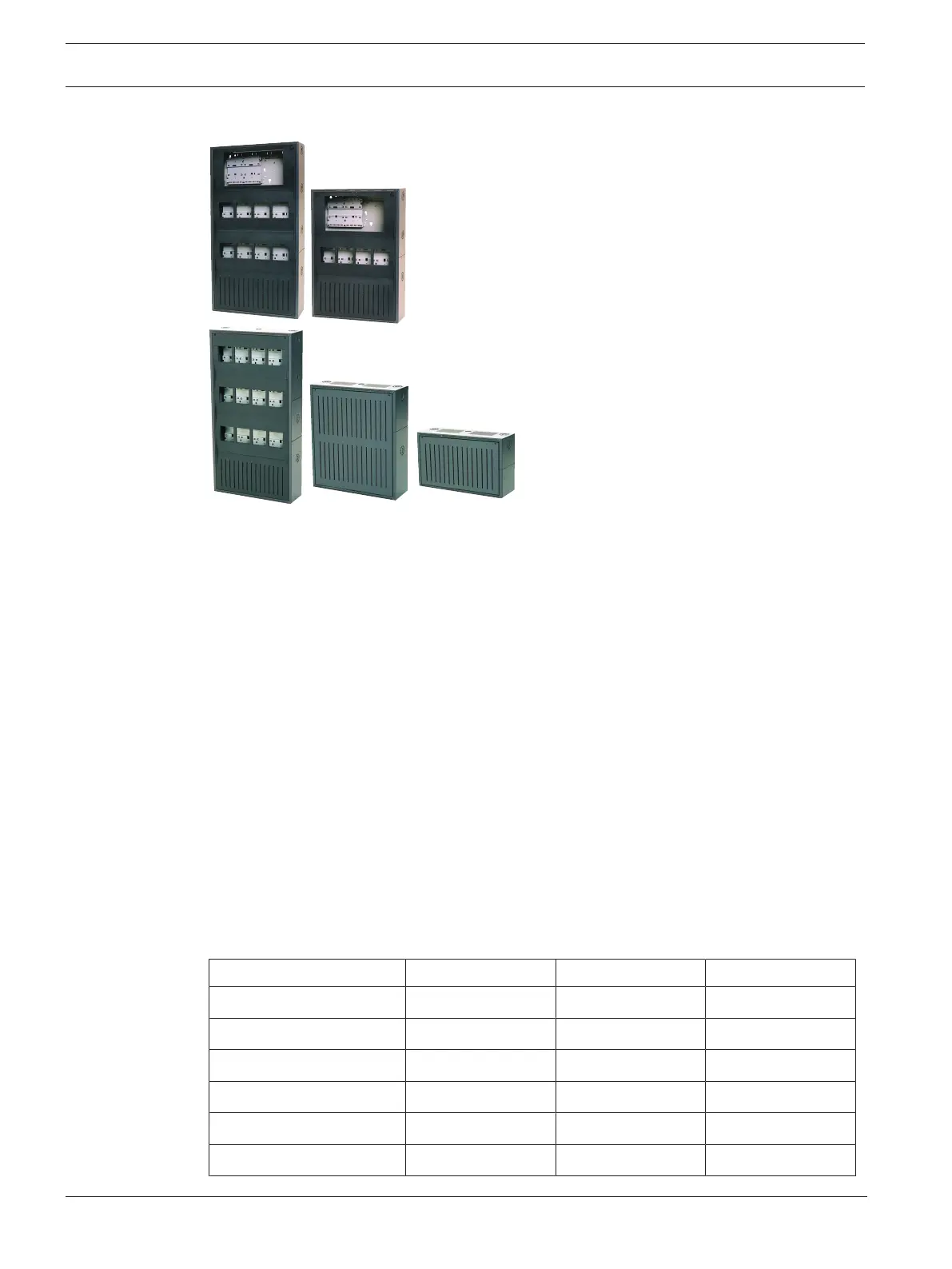

Figure2.4: Housings for wall mounting
Wall mounting housings are screwed directly onto the wall. This reduces the installation depth
by approx. 9cm, although the smaller 12V/28Ah batteries must be used as a result.
The modular system makes it easy to extend the system.
Housing Designs and Combinations
Two wall mounting housings are available as a base unit:
– HCP0006A (for 6 modules), and
– HBC0010A (for 10 modules)
These housings can accommodate a panel controller with operating and display unit as the
central element.
The HCP0006A and HBC0010A basic housings can be extended to meet individual
requirements using:
– HBE0012A Modular Extension Housing for an additional 12modules, and 2 x 12V/28Ah
batteries
– PSS0002A or PSB0004A Power Supply housings for additional power supply units and
12V/28Ah batteries
Equipment Limits
The table below shows the maximum number of:
– Modules
– Panel rails (short PRS-0002-C, long PRD 0004 A)
Housing type Modules Short rail Long rail
HCP 0006 A 6 1 1
HBC 0010 A 10 1 2
HBE 0012 A 12 - 3
PSS 0002 A - - -
PSB 0004 A - - -
DIB 0000 A - - -
