– Optional: accessories for housing
– Power supply unit and batteries
– Panel rail
– Panel controller
– Functional modules
4 After installation
Store all documents.
4.3 Installation of CPH 0006 A, fully assembled panel
The installation sequence is given by the numbers 1 to 9.
UPS 2416 A
PRD 0004 A
PRS-0002-C
CPH 0006 A
1
2
3
7
BCM-0000-B
12 V / 45 Ah
5
12 V / 45Ah
6
<= 4 Module
8
4
FBH 0000 A / FHS 0000 A
HMP 0003 A

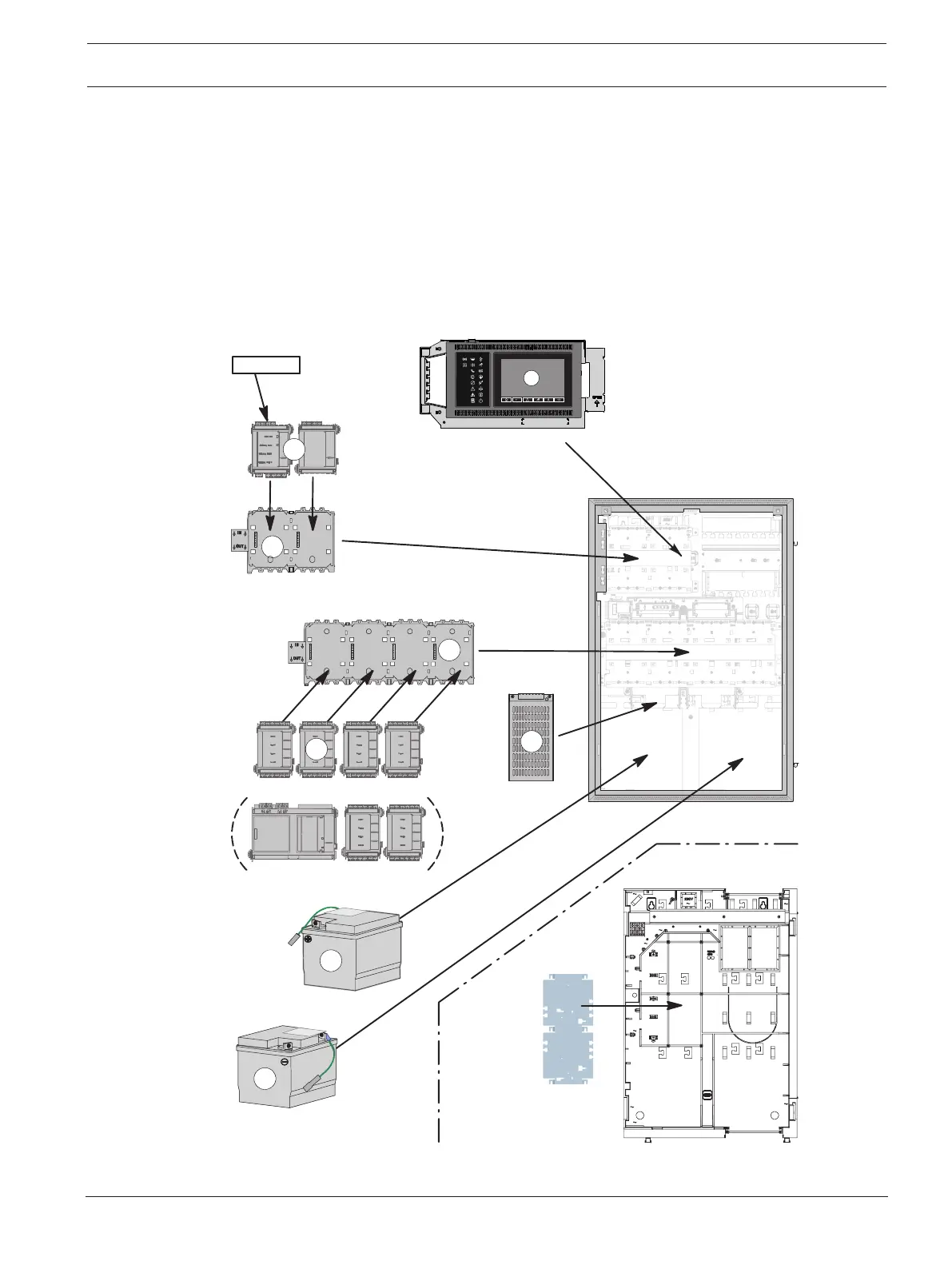

Figure4.1: Installation of CPH 0006 A fully configured panel
