42 en | Planning AVENAR panel
2022-07 | 5.0 | F.01U.378.910
System manual
Bosch Sicherheitssysteme GmbH
1
2
BCM
BCM
4
3
A6142
S
PU
A6
1
4
2SP
U
A6142SPU
A61
4
2SPU
EPH 0012 A
MPH 0010 A
A2000FSPA
2
000FSP
12 V / 45 Ah12 V / 45 Ah 12 V / 45 Ah12 V / 45 Ah
12 V / 45 Ah12 V / 45 Ah 12 V / 45 Ah12 V / 45 Ah

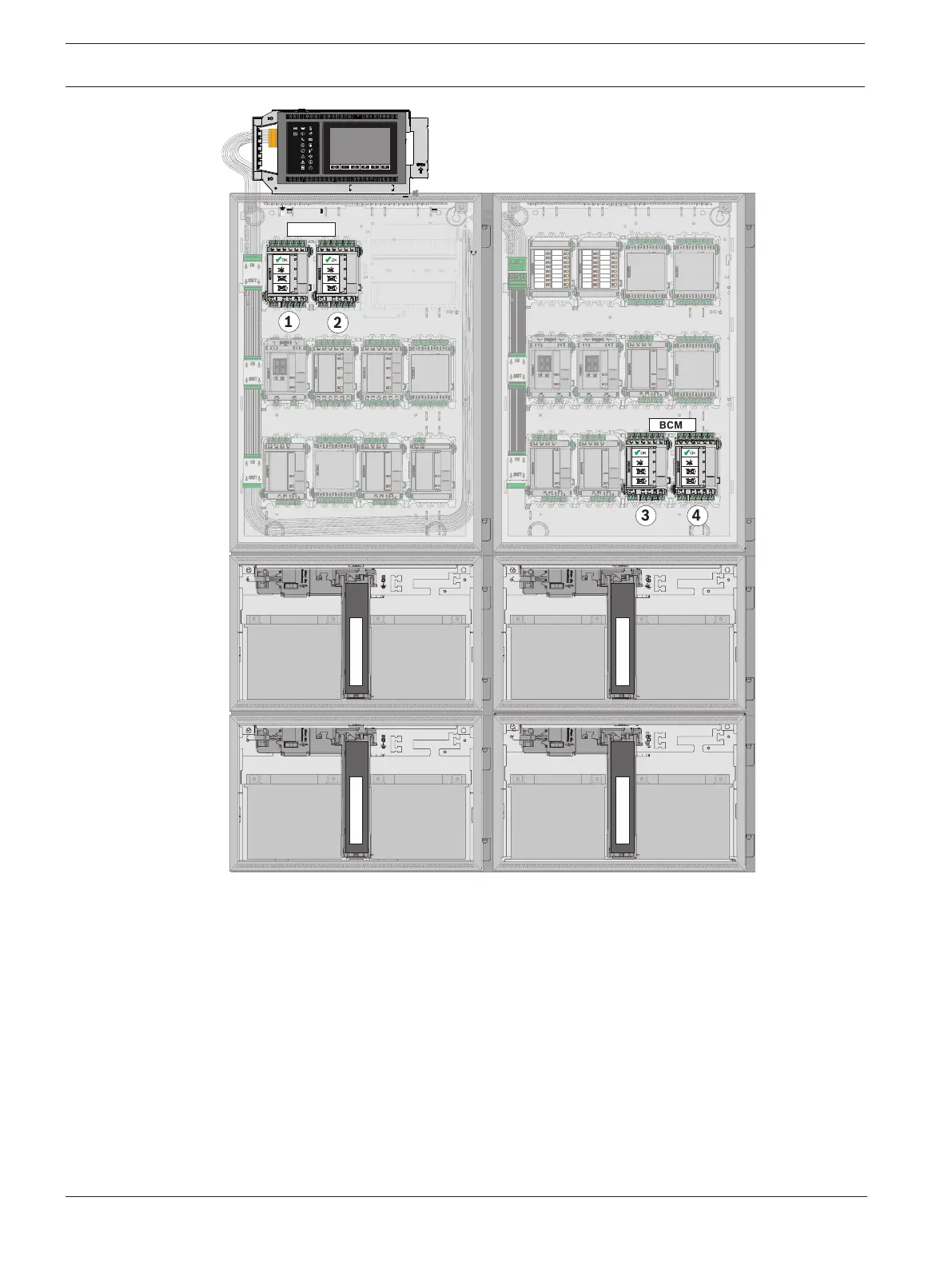

Figure3.6: Configuration of 1 to 4 BCM modules (frame installation)
Configuration with 5 to 8 BCM-0000-B modules in wall mounting housings
2 BCM-0000-B modules on short panel rail
2 BCM-0000-B modules at the end of the long panel rail
The remaining BCM-0000-B modules on a panel rail in the center of the system.
Each BCM-0000-B module requires one UPS 2416 A power supply unit.
