2.6 Dimensions and description

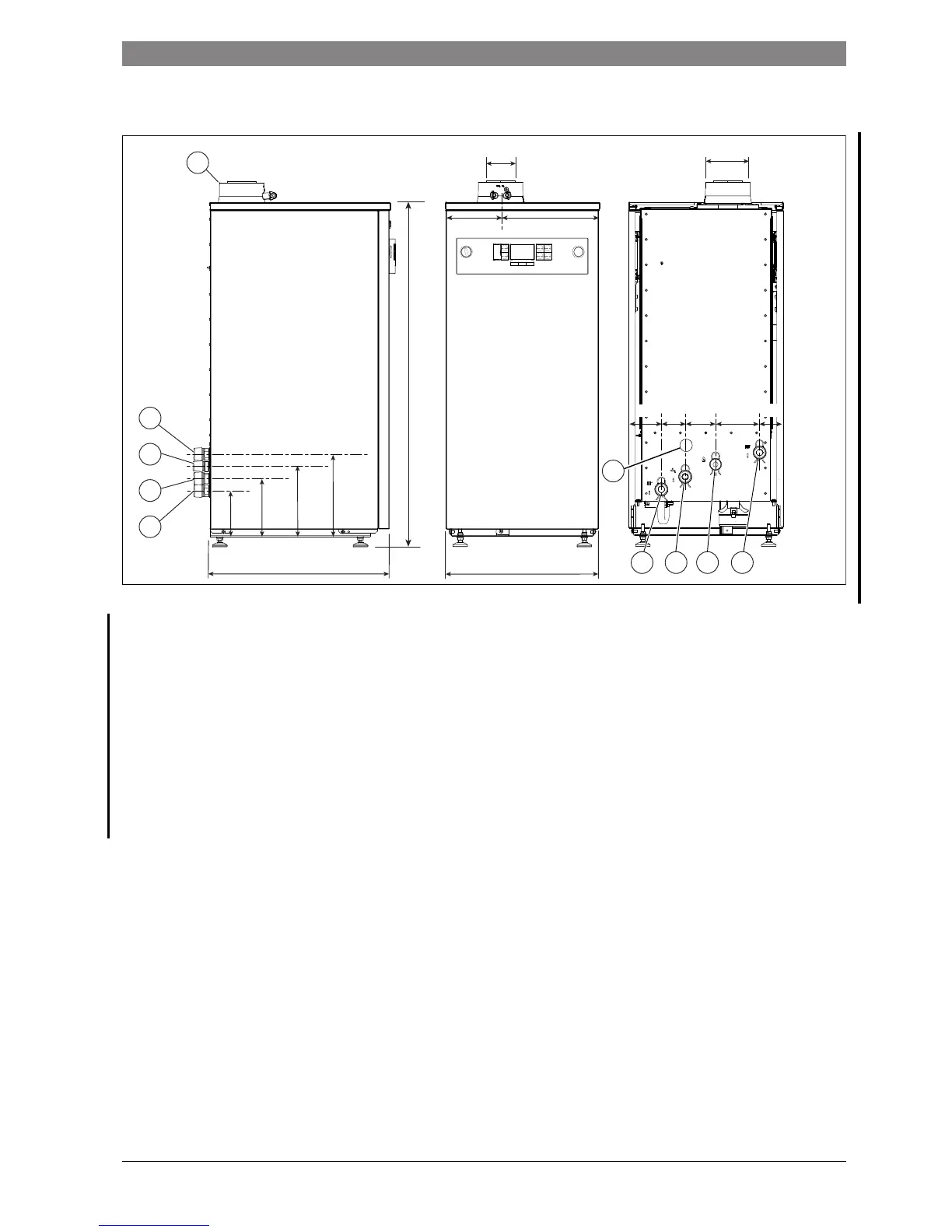

Fig. 2 Pipe work connector location
Regular boiler:
[1] Hot water flow (1”)
[2] Gas (3/4”)
[3*] Not used on the regular boiler
[4] Hot water return (1”)
[5] Condensate outlet
[6] 80/125 Flue outlet
System boiler:
[1] Heating and DHW flow (1”)
[2] Gas (3/4”)
[3*] DHW return (1”) (only if optional diverter valve kit is fitted)
[4] Heating return (1”)
[5] Condensate outlet
[6] 80/125 Flue outlet
1
6
2
3*
4
6720809859-10.1Wo
123*4
466
394
61
78 111
141 253
Ø80
Ø125
98
130
162
193
5
83
59
900 - 930
