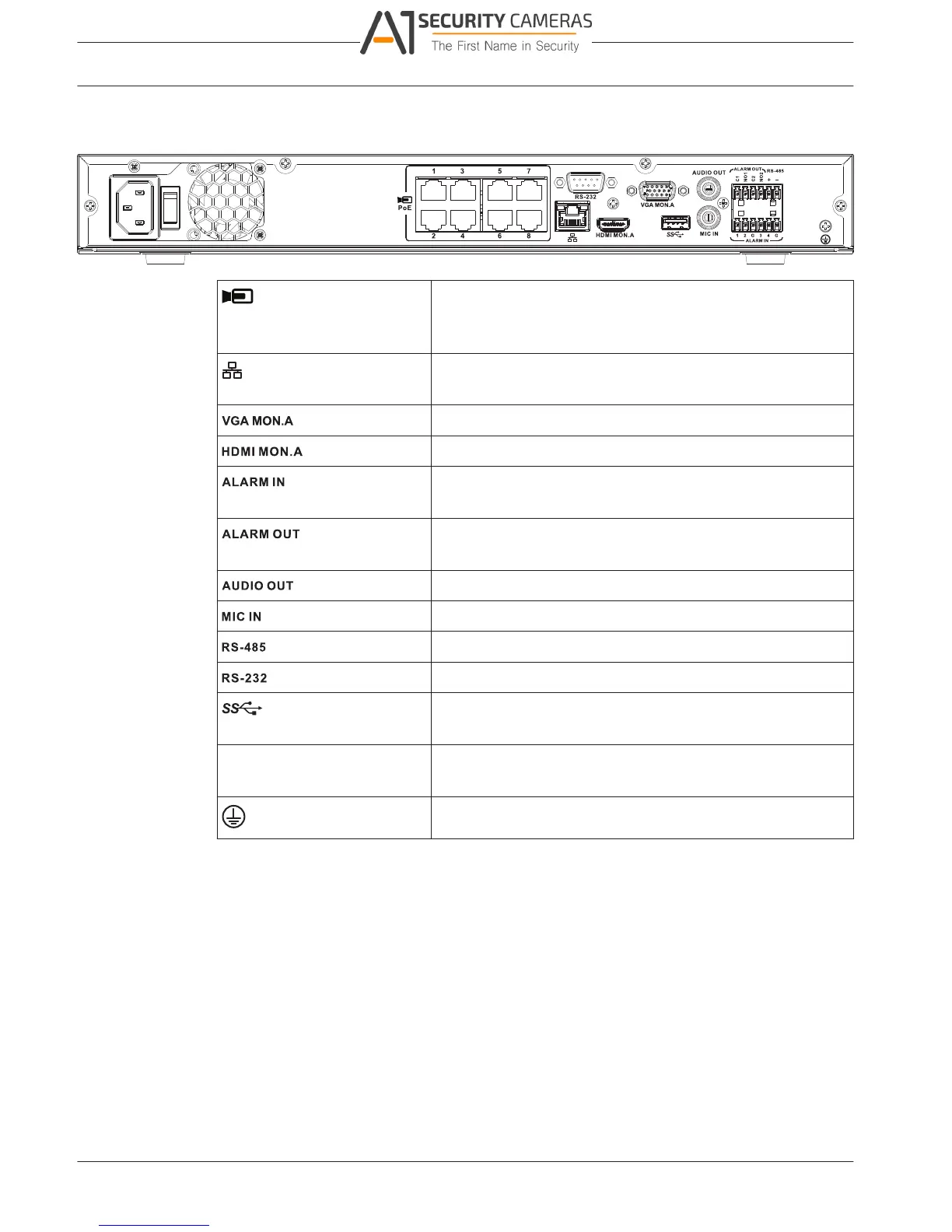

Back panel connectors DIVAR network 2000 (8 PoE)
PoE
Max. 8 RJ45 PoE ports (115 W; 25.5 W max. per port)
connected with DHCP configuration (maximum 16 IP
channels possible)
RJ45 Ethernet connection (10/100/1000Base-T according to
IEEE802.3)
1 D-SUB (Monitor output)
1 HDMI (Monitor output)
4 screw terminal inputs, cable diameter AWG26‑16 (1.29–
0.4 mm)
2 screw terminal outputs, cable diameter AWG26‑16 (1.29–
0.4 mm)
1 RCA (Audio output)
1 RCA (Audio input)
Screw terminal output
DB9 male, 9-pin D-type (for service)
One USB (3.0) connector for mouse or USB memory device;
One USB (2.0) also on front panel
Power input with On/Off
switch
100~240 VAC, 50-60 Hz, 3.5 A, 190 W
Ground connection
