Bosch DIVAR 2000 User Manual

DIVAR 2000 / DIVAR 3000 / DIVAR
Web Client Software | en 71
5000
9
9.1
9.2
Web Client Software
Getting started
How to log on
1. Open your web browser and enter the IP address for the DIVAR in the address column.
For example, if your DVR IP is 10.10.3.16, then enter http:// 10.10.3.16

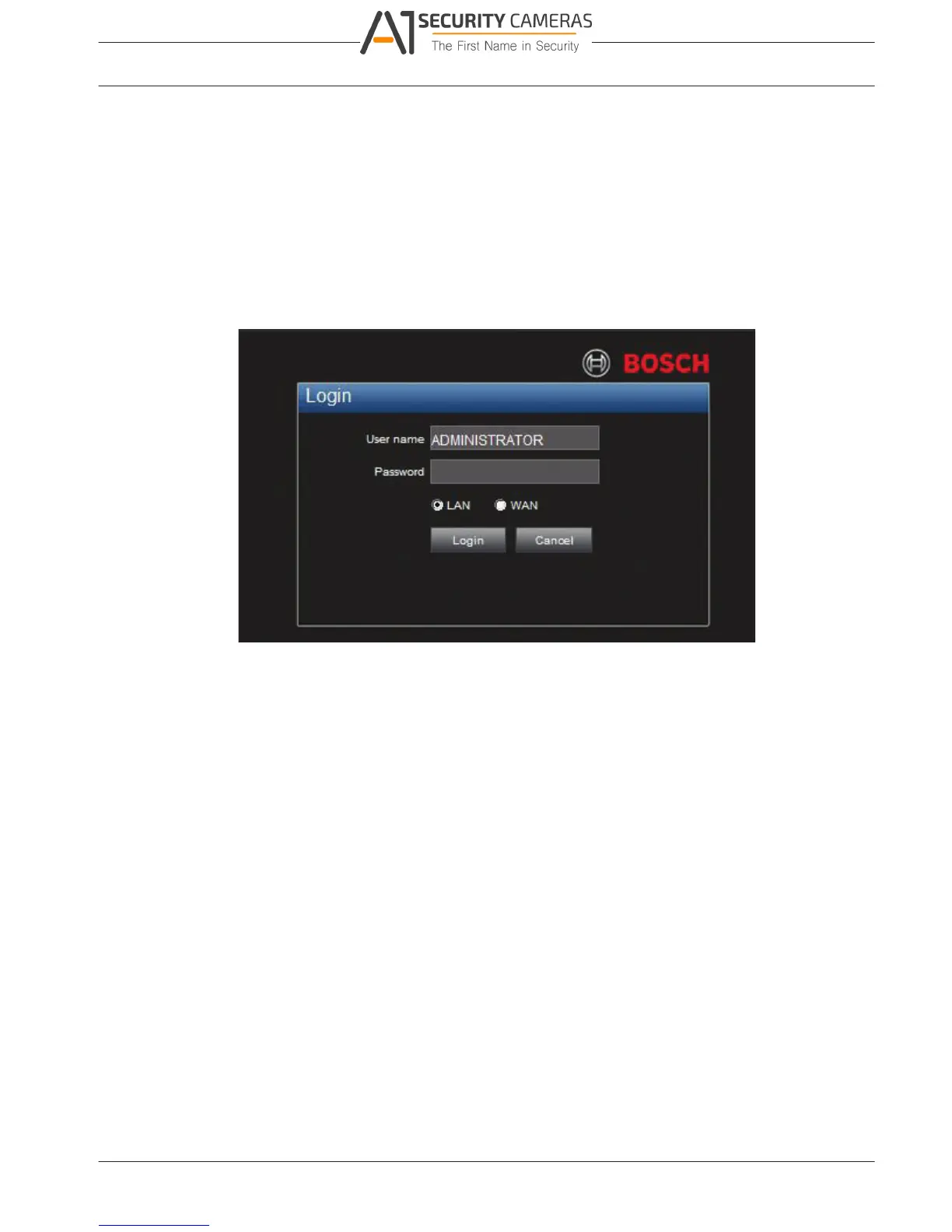

2. If Web Client is already installed, the following Login screen is shown (if Web Client is not
installed, check with your administrator for how to do this):
9.3
9.3.1
9.3.2
3. Input your user name and password.
4. Select the login mode: LAN or WAN (LAN is for smaller networks; WAN is best for larger
networks and the internet – the differences are described in the following pages).
5. Click <Login> to access the Web Client ‘Live’ window – see below.
Note 1: A disclaimer screen may initially appear (click <Accept> to continue).
Note 2: For security reasons, your password must be defined after you first login.
Note 3: If the maximum number of users for the Web Client is exceeded, a message is
displayed.
Web client live window
Playback mode
Event search
Click Event search to search and playback a selected event.
Choose here:
– Type: Choose from All (default), Motion or Alarm
– Channel: Choose All or specific channels
– Start time: Choose start date and time for search
– End time: Choose end date and time for search
Press <Search> to start the event search (all the events found will be listed in the table
below). If required, scroll to a particular page in the list of events.
To export the event file, press <Export> to export the file (a popup screen appears asking
where to export the file, and the file format). Assign the fields and press <Export> again).
Bosch Security Systems Operation Manual 2016.09 | v1.0 | AM18-Q0717
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com

Bosch DIVAR 2000 Specifications

General

Number of fans	1 fan(s)
Input bandwidth	256 Mbit/s
Number of users	128 user(s)
Recording modes	Manual, Schedule, Stop
Output bandwidth	128 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Supported resolutions	3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	720p, 1080p
Video motion detection	Yes
Video formats supported	H.264, H.265, M-JPEG
DC-in jack	No
Disc types supported	DVD, DVD+R, DVD+RW
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS/DDNS, IP Filter, PPPoE, FTP
Power over Ethernet (PoE) ports quantity	8
HDD capacity	2000 GB
HDD interface	Serial ATA III
Maximum storage capacity	6 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Total Power over Ethernet (PoE) budget	115 W
Power over Ethernet (PoE) power per port	25.5 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 93 %
Mobile operating systems supported	Android, iOS
Sustainability certificates	RoHS
Certification	FCC, UL, CE,
Product color	Black

Weight and Dimensions

Depth	323 mm
Width	375 mm
Height	53 mm
