5.3
DIVAR 2000 / DIVAR 3000 / DIVAR
Hardware setup | en 25
5000

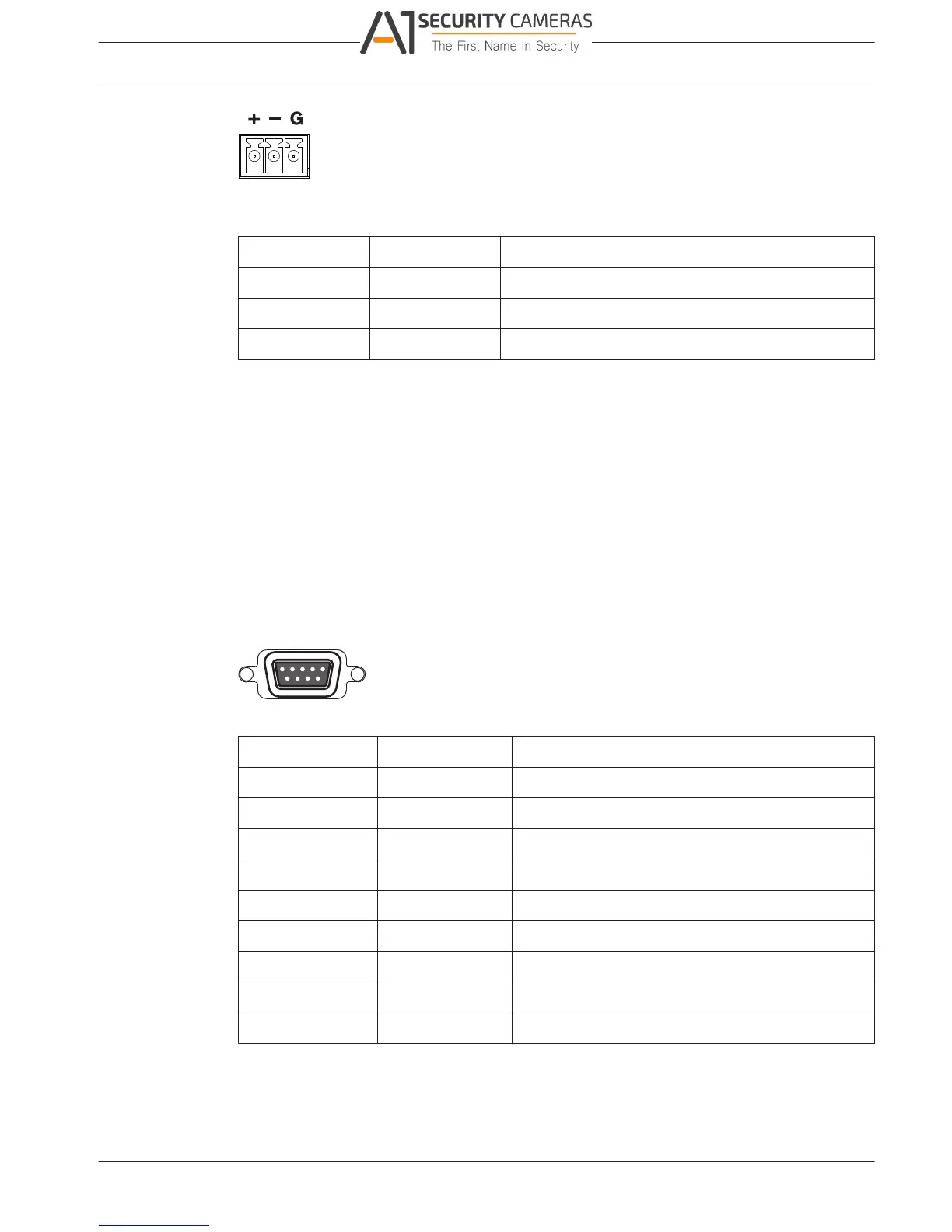

Figure 5.1: RS485 connector
Signal name Pin number Description
TX + 1 Data transmission
TX - 2 Data transmission
GND 3 Shield
Max. signal voltage is -8 to +12 V. The recommended cable cross section is AWG 28-16
(0.08-1.5 mm2).
RS232 port connections
The RS232 port can be used to connect different devices:
Console
PTZ Matrix - a pan and tilt control unit (using RS232 to Biphase converter)
The device type and required settings can be assigned in the menu (Settings > System >
Serial Port).
Specifications
Connector type: 9-pole D-type male connector
Maximum input voltage: ±25 V
Communication protocol: Output signals according EIA/TIA-232-F
Figure 5.2: RS232 serial port
Signal name Pin number Description
DCD_in 1 Carrier detection signal (not used)
RX 2 RS232 receive signal
TX 3 RS232 transmit signal
N/C 4 No connection
System ground 5 System ground
N/C 6 No connection
RTS 7 RS232 request to send signal
CTS 8 RS232 clear to send signal
N/C 9 No connection
Alarm I/O connections
Alarm inputs and outputs are fitted as screw down terminal blocks on the unit. Cable cross
section is AWG 26-16 (1.29 to 0.4 mm
2
).
Bosch Security Systems Operation Manual 2016.09 | v1.0 | AM18-Q0717
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
5.4

Table of Contents

Other manuals for Bosch DIVAR 2000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Bosch DIVAR 2000 and is the answer not in the manual?

Bosch DIVAR 2000 Specifications

General IconGeneral
Number of fans1 fan(s)
Input bandwidth256 Mbit/s
Number of users128 user(s)
Recording modesManual, Schedule, Stop
Output bandwidth128 Mbit/s
Maximum resolution3840 x 2160 pixels
Video input channels16 channels
Supported resolutions3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes720p, 1080p
Video motion detectionYes
Video formats supportedH.264, H.265, M-JPEG
DC-in jackNo
Disc types supportedDVD, DVD+R, DVD+RW
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports9
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS/DDNS, IP Filter, PPPoE, FTP
Power over Ethernet (PoE) ports quantity8
HDD capacity2000 GB
HDD interfaceSerial ATA III
Maximum storage capacity6 TB
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Total Power over Ethernet (PoE) budget115 W
Power over Ethernet (PoE) power per port25.5 W
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)0 - 95 %
Operating relative humidity (H-H)0 - 93 %
Mobile operating systems supportedAndroid, iOS
Sustainability certificatesRoHS
CertificationFCC, UL, CE,
Product colorBlack
Weight and Dimensions IconWeight and Dimensions
Depth323 mm
Width375 mm
Height53 mm
