SM Series Heat Pump
SM Series Heat Pump8733942411 (2017/07) Subject to change without prior notice

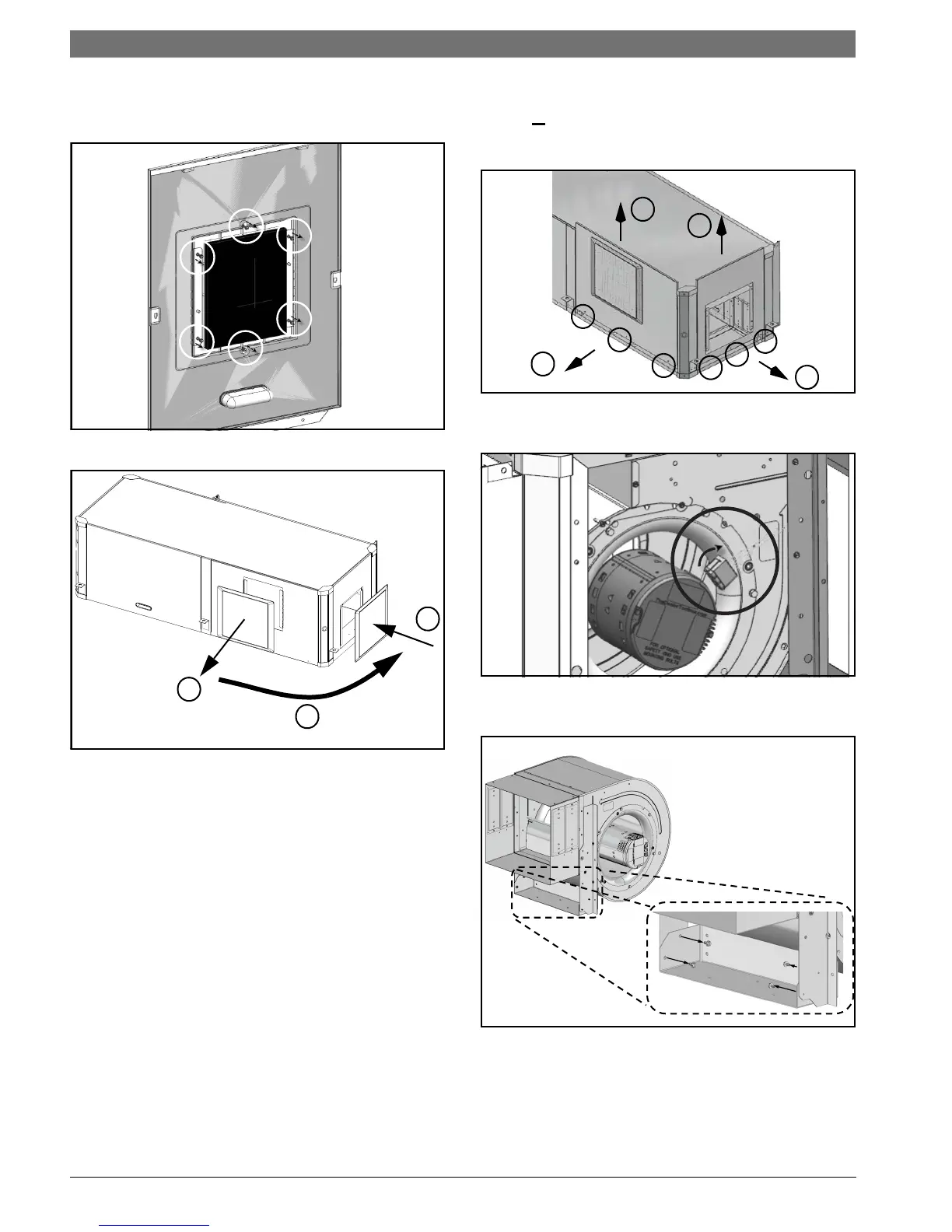

10 | Horizontal Configurability
4. Slide blower assembly away from mounting bracket.
(Figure #23)
Figure # 23
5. Remove and retain (1) vertical bracket by removing
(2) screws. (Figure #24)
Figure # 24
6. Remove and discard horizontal blower bracket by
removing (3) screws. (Figure #25)
Figure # 25
7. Rotate the blower into its new position.(Figure#26)
Figure # 26
8. Remove and retain remaining vertical blower
bracket by removing (2) screws. (Figure #27)
Figure # 27
9. Remove the blower assembly by sliding it forward.
(Figure #28)
NOTICE: Air coil is in close proximity to the
blower. Air coil fins are easily damaged.
Great care must be taken during this step to
avoid coil damage. Shipping cardboard can
be used as protection during blower
removal and installation.
Unit top is notched to allow blower to slide through.
