Horizontal Configurability | 7SM Series Heat Pump
8733942411 (2017/06)Revised 07-17
Required Tools
• 5/16" hex head driver
• 3/8" hex head driver
• 7/16" hex head driver
• Flathead screw driver
• Phillips screw driver
• 1/4” hex head driver
• Needle nose pliers
• 5/16”-1/4” ratchet wrench
Instructions - Left-Hand Unit (SM0**-
1HZ-*L*-**)

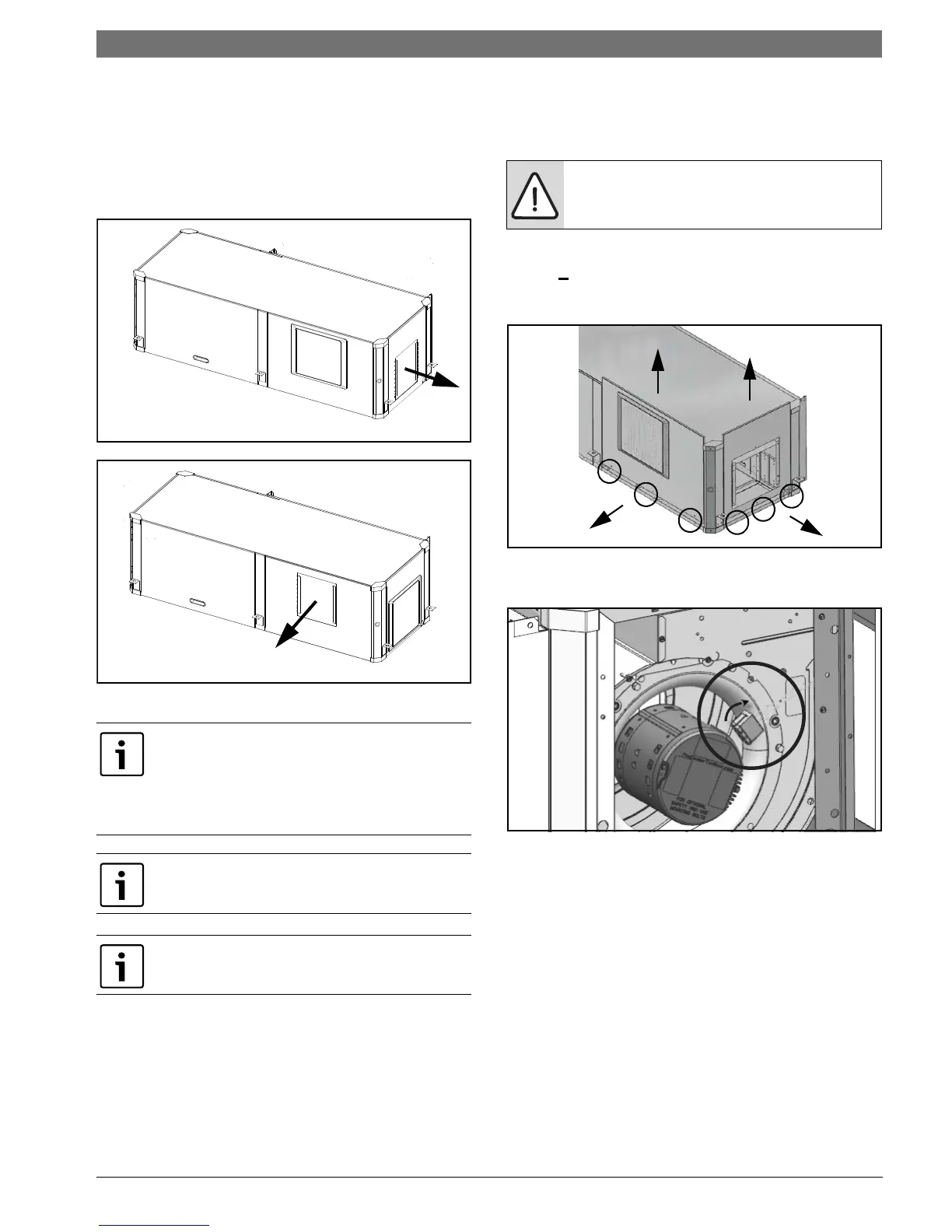

1. Remove and retain end and side panels.(Figure #6)
Figure # 6
2. Disconnect blower motor wiring and ground wire
fastened to blower housing.(Figure#7)
Figure # 7

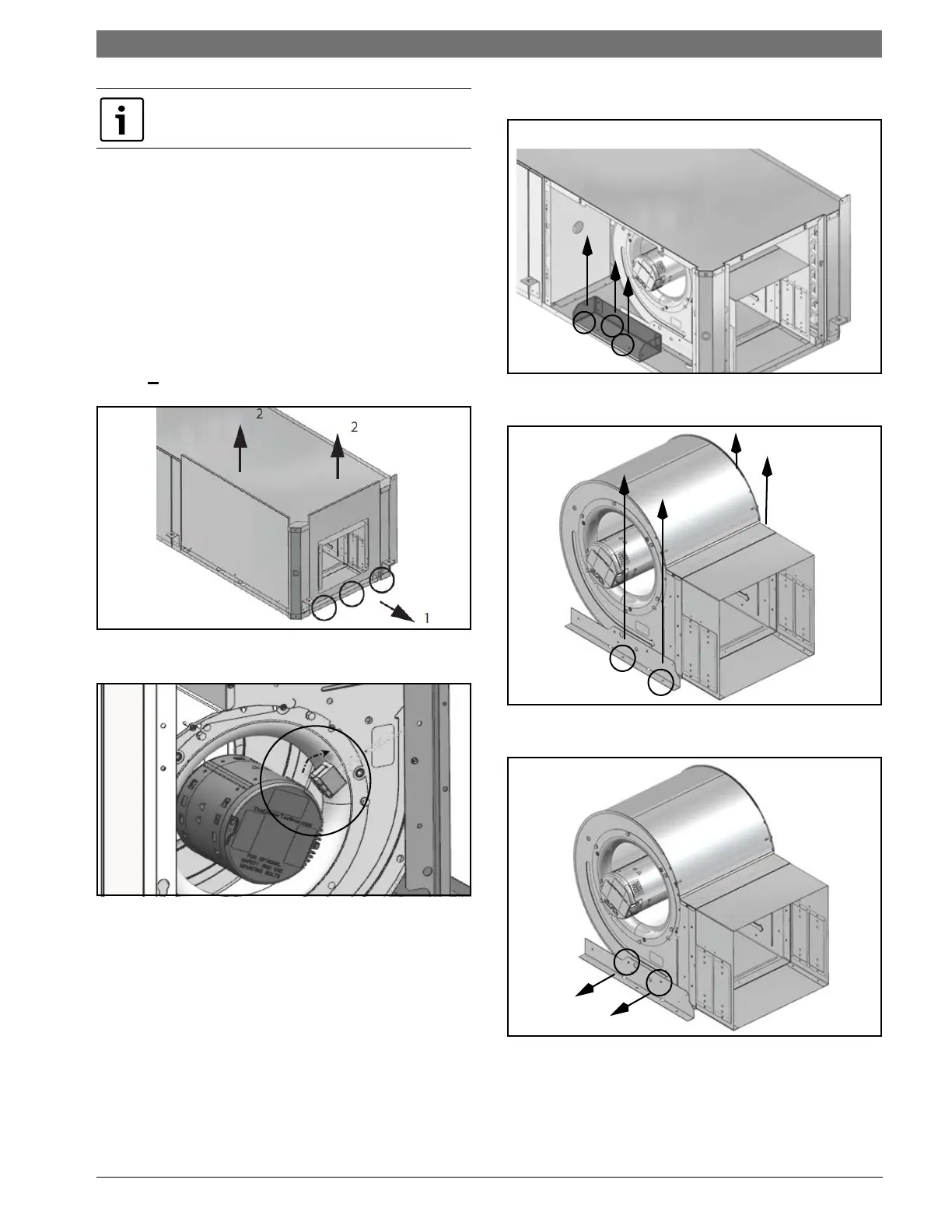

3. Remove and retain bracket by removing (3) screws.
(Figure #8)
Figure # 8
4. Loosen blower assembly by removing (4) screws.
(Figure #9)
Figure # 9
5. Remove and retain bracket by removing (2) screws.
(Figure #10)
Figure # 10
Blower configuration changes should be done prior
to unit being installed in the final location.
