SM Series Heat Pump
SM Series Heat Pump8733942411 (2017/07) Subject to change without prior notice

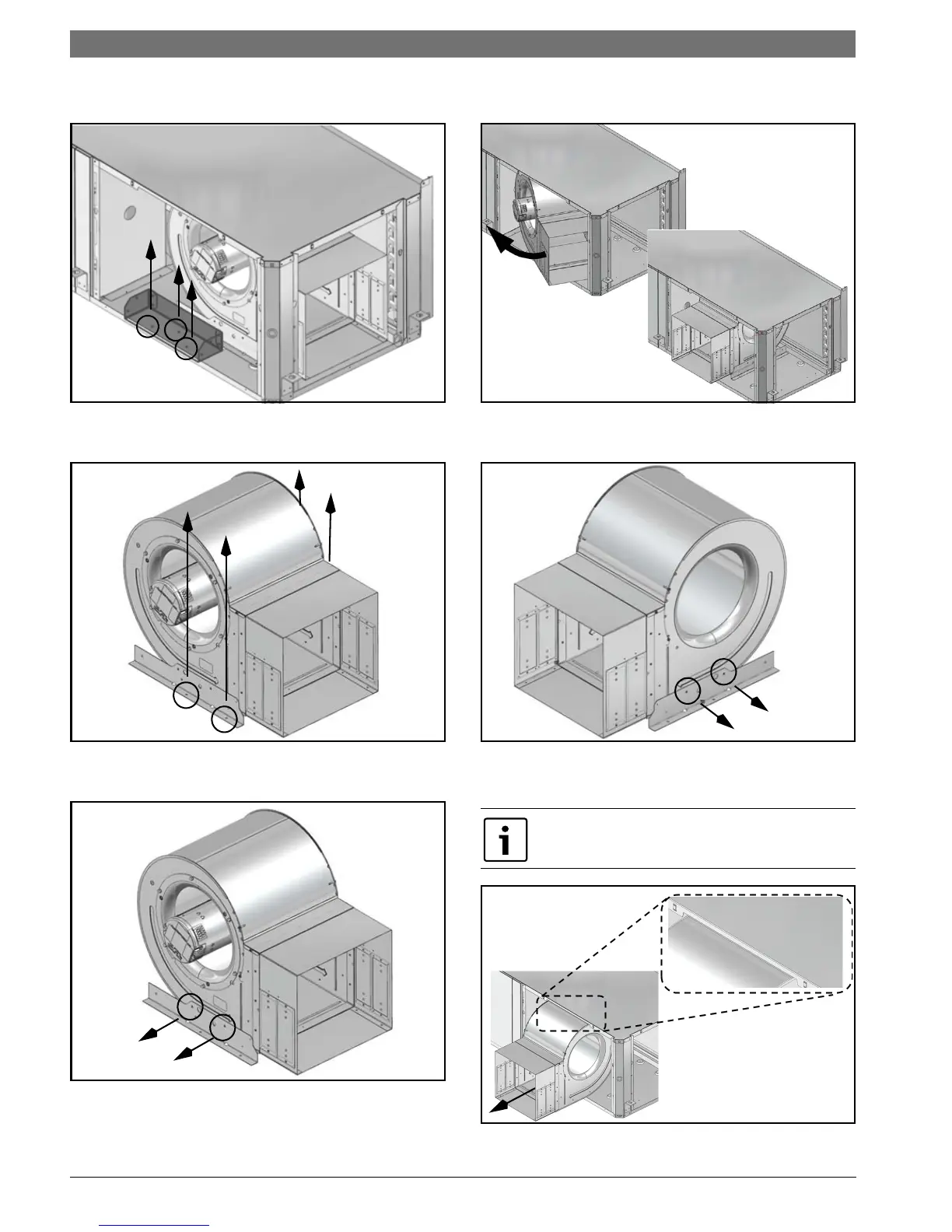

8 | Horizontal Configurability
6. Rotate the blower into its new position.(Figure#11)
Figure # 11
7. Remove and retain remaining bracket by removing
(2) screws. (Figure #12)
Figure # 12
8. Remove the blower assembly by sliding it forward.
(Figure #13)
Figure # 13
9. Remove and discard blower collar by removing (8)
screws. (Figure #14)
Figure # 14
10. Reorient the blower assembly 180 degree with
blower “belly” down and slide back into the cabinet.
(Figure #15)
Figure # 15
11. Reinstall bracket in the new vertical position using
(2) screws. (Figure #16)
Figure # 16
Unit top is notched to allow blower to slide through.
