Bosch Greensource CDi Series - Counter-Flow Configurability; Vertical Configurability

Counterflow Configurability | 11SM Series Heat Pump
8733942411 (2017/06)Revised 07-17

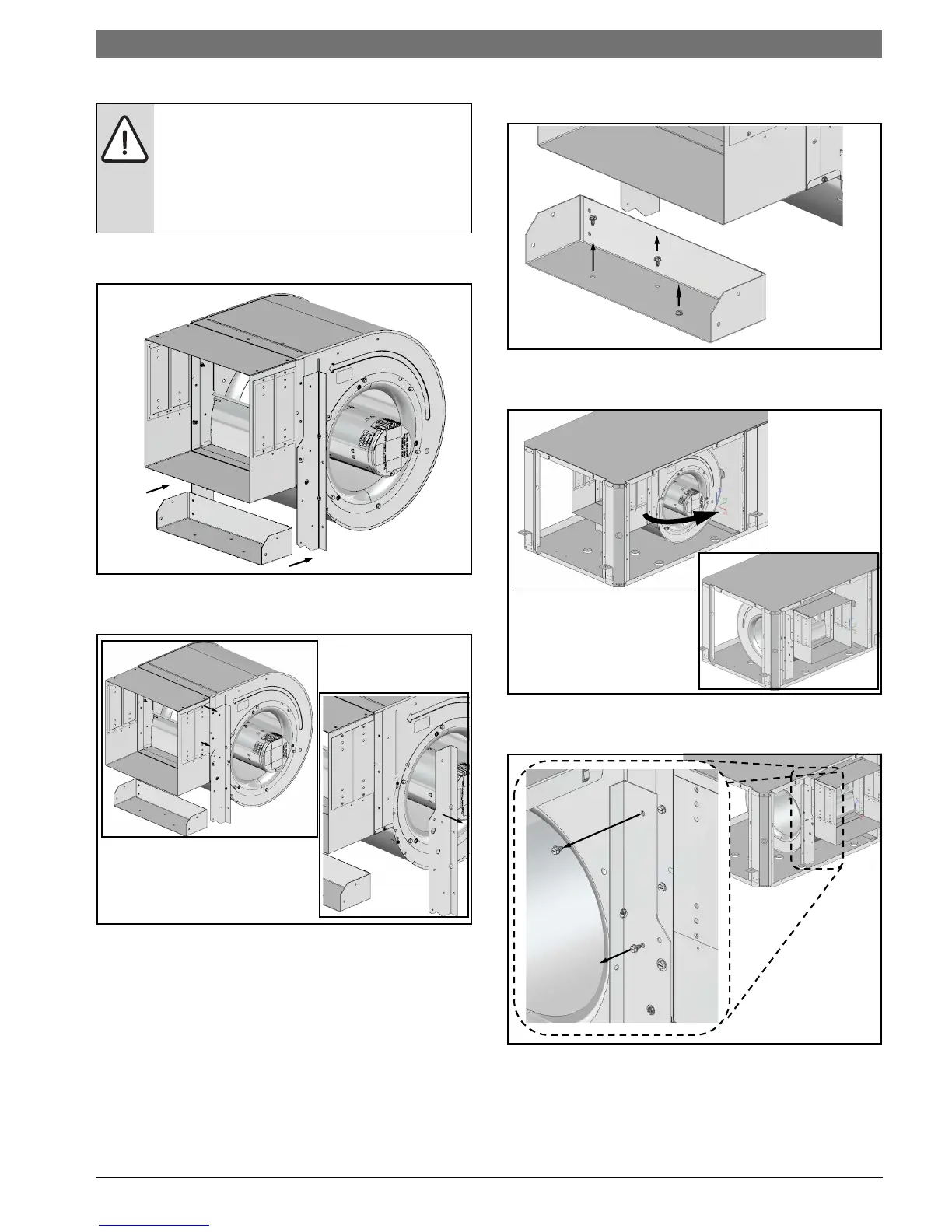

Figure # 28
10. Remove and discard blower collar by removing (8)
screws. (Figure #29)
Figure # 29
11. Reorient the blower assembly 180 degree with
blower “belly” up. (Figure #30)
Figure # 30
12. Move the blower back into the cabinet. (Figure #31)
Figure # 31
13. Reinstall (2) vertical blower brackets in the new
horizontal position using (4) screws. (Figure #32)
Figure # 32
14. Secure (2) the new horizontal blower brackets to
the unit base using (4) screws. (Figure#33)
Figure # 33
15. Reconnect blower motor wiring and ground wire.
16. Install the new blower panel from the accessory kit.
COUNTERFLOW CONFIGURABILITY
The counterflow configuration water source heat pump
is a dedicated down flow configuration. Available from
the factory in left-hand and right-hand return air
configurations.
VERTICAL CONFIGURABILITY
The vertical configuration water source heat
pump is a dedicated up flow configuration.
Available from the factory in left-hand and right-hand
return air configurations.
