-8-
The end of the workpiece which, during a rip type
operation, is pushed into the cutting tool first.
!
A non-through cut which produces a special shape
in the workpiece used for joining or decoration.
! &$'%)
Any cutting operation where the blade does not ex-
tend through the workpiece (e.g. Dado, Rabbet).
"'%%&
A device used to feed the workpiece through the
saw during narrow ripping-type operation and helps
keep the operator’s hands well away from the blade.
Use the Push Stick for rip widths less than 6 inches
and more than 2 inches.
"'%!
A device used for ripping-type operations too narrow
to allow use of a Push Stick. Use a Push Block for
rip widths less than 2 inches.
$&
A notch in the edge of a workpiece. Also called an
edge dado.
$""
A cutting operation along the length of the workpiece
cutting the workpiece to width.
$(!'&! %"$ '&$"
The number of turns completed by a spinning object
in one minute
&$'%)
Any cutting operation where the blade extends
through the workpiece.
Disconnect plug from power source before performing any assembly, adjustment or repair
to avoid possible injury.
!
WARNING

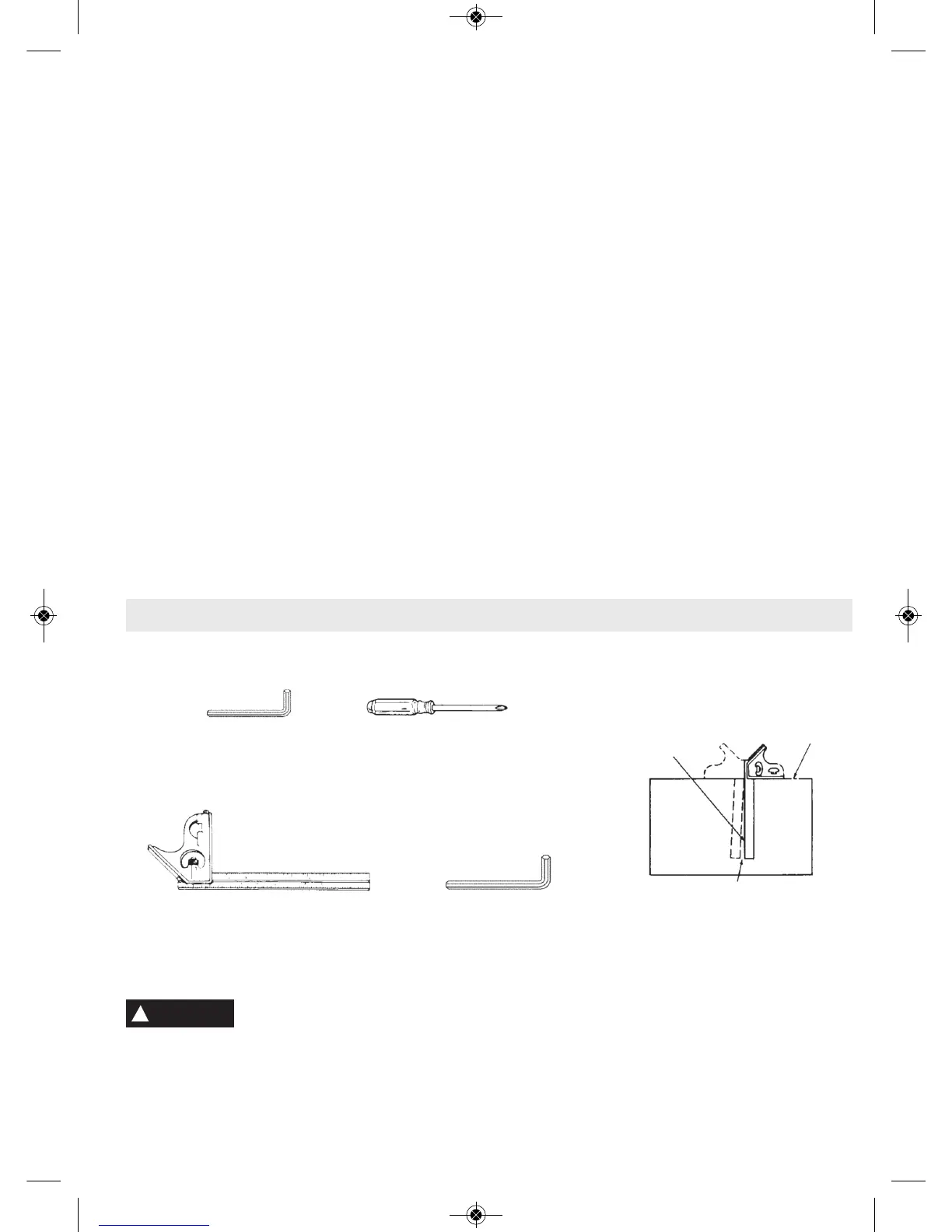

COMBINATION SQUARE
PHILLIPS SCREWDRIVER
HEX “L” WRENCH
(Supplied-Tool Adjustment)
5 MM
SHOULD BE NO GAP OR OVERLAP
HERE WHEN SQUARE IS FLIPPED
OVER IN DOTTED POSITION.
COMBINATION SQUARE MUST BE TRUE
DRAW LIGHT LINE ON
BOARD ALONG THIS EDGE.
STRAIGHT EDGE OF BOARD
3/4" THICK. THIS EDGE
MUST BE PERFECTLY
STRAIGHT.
&;;8? 11010;>??19.8E:006A?@91:@
HEX “L” WRENCH
(Supplied-Insert Plate)
2 MM
