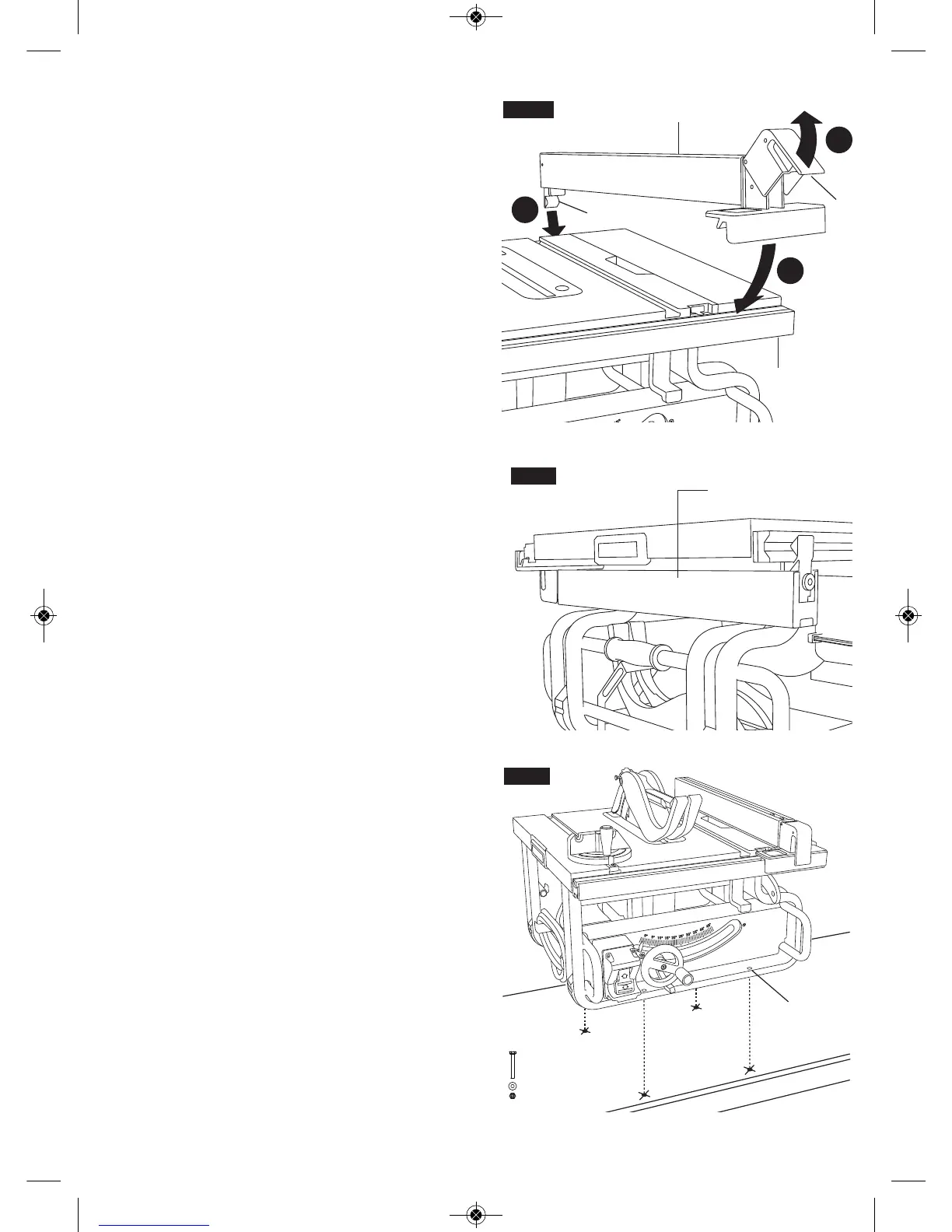

1. Raise rip fence handle , so holding clamp is
out far enough to fit on the table and into “V”
groove located on the back of rear rail (Fig. 14).
2. Position the rip fence over table holding up
the front end, first engage holding clamp with
rear rail.
3. Lower front end onto front rail .
4. Lower rip fence handle to lock.
;@1To store rip fence follow same procedure as
above under the table (Fig. 15).
!' & &&%)
If table saw is to be used in a permanent location, it
should be fastened securely to a firm supporting sur-
face such as a stand or workbench, using the four
mounting holes (Fig. 16).
1. If mounting to a workbench, the base should be
bolted securely using 1/4" hex bolts (not included)
through mounting holes .
5:@ If workbench is 3/4” thick, bolts will have to
be at least 3-1/2” long - if workbench is 1-1/2”
thick, bolts should be at least 4-1/2” long.
2. Locate and mark where the saw is to be mounted,
relative to holes in the base of the tool.
3. Drill four (4) 3/8" diameter holes through work-
bench.
4. Place table saw on workbench aligning holes in
base with holes drilled in workbench.
5. Insert four (4) 1/4" dia. bolts through holes in base
and supporting surface; then secure with (4) 1/4”
flat washers and (4) 1/4" hex nuts.
