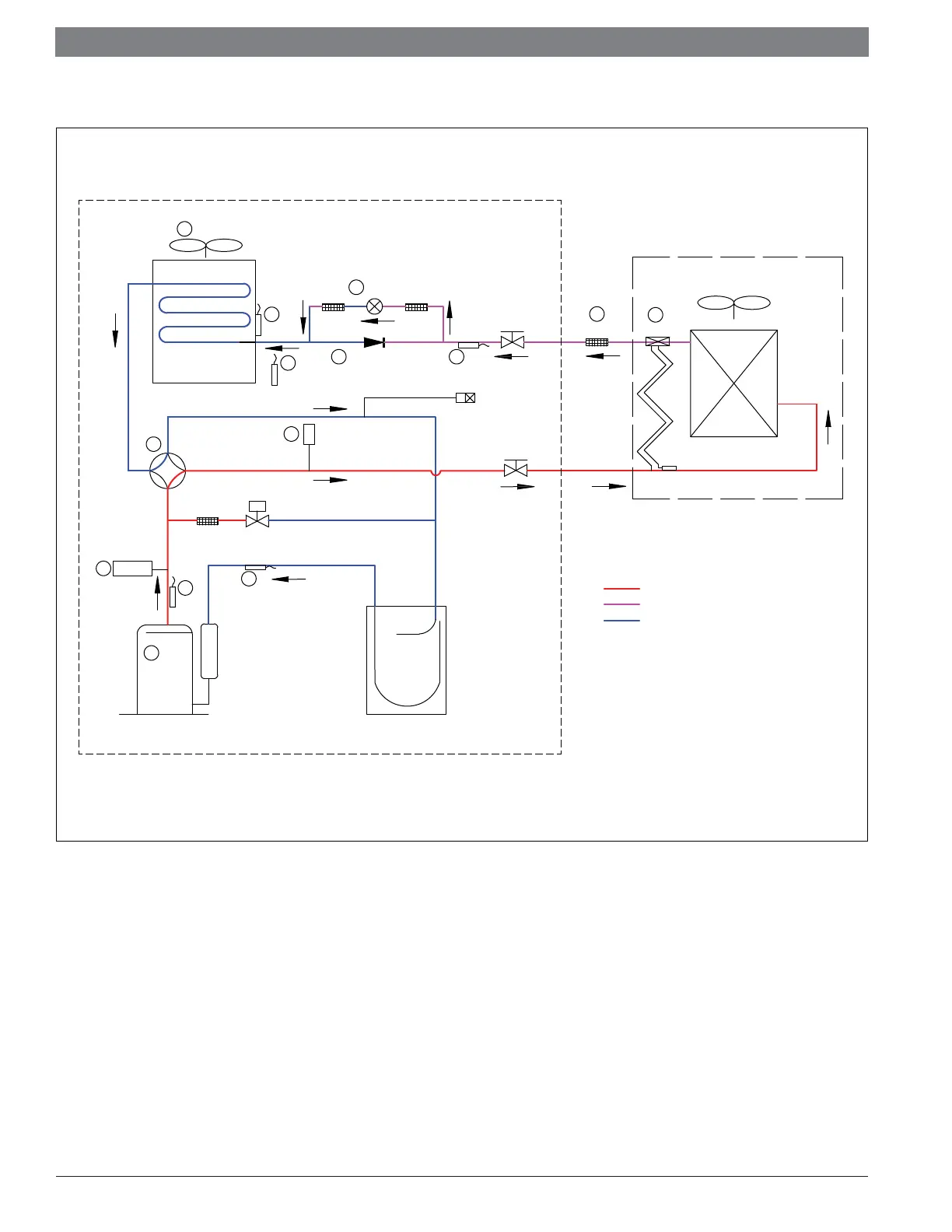

9.2 Heating Operation
Figure 8
High pressure gas
High pressure liquid
Low pressure
Liquid Service Valve
Suction Service Valve
Accumulator
INV
FAN
Reversing
Valve
Bi-flow Filter Drier
EEV
T4
Check valve
Evaporator Coil
T3
T5
HPS
Pressure
Transducer
A
E
H
D
C
J
B
G
F
Compressor
I
Gauge port of heat pump
FAN
TXV
Condenser
Coil
FAN ON
Indoor unit
Thermostat "ON"
N
Th
PEV
T3L
P
M
L
O
Outdoor unit
Strainer
Strainer
Strainer
Refrigerant fl ow during heating operation/heating oil return
 operation

Bosch IDS 2.0 Specifications

General

Refrigerant	R-410A
Stages	Variable
Voltage	208/230 V
System Type	Air Source Heat Pump
Compressor Type	Inverter-driven
Sound Level	As low as 56 dB
Heating Capacity	Varies by model
Cooling Capacity	Varies by model
Noise Level	45 dB to 60 dB
Operating Temperature Range (Heating)	-20°C to 35°C
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Seasonal Coefficient of Performance (SCOP)	Not Available
