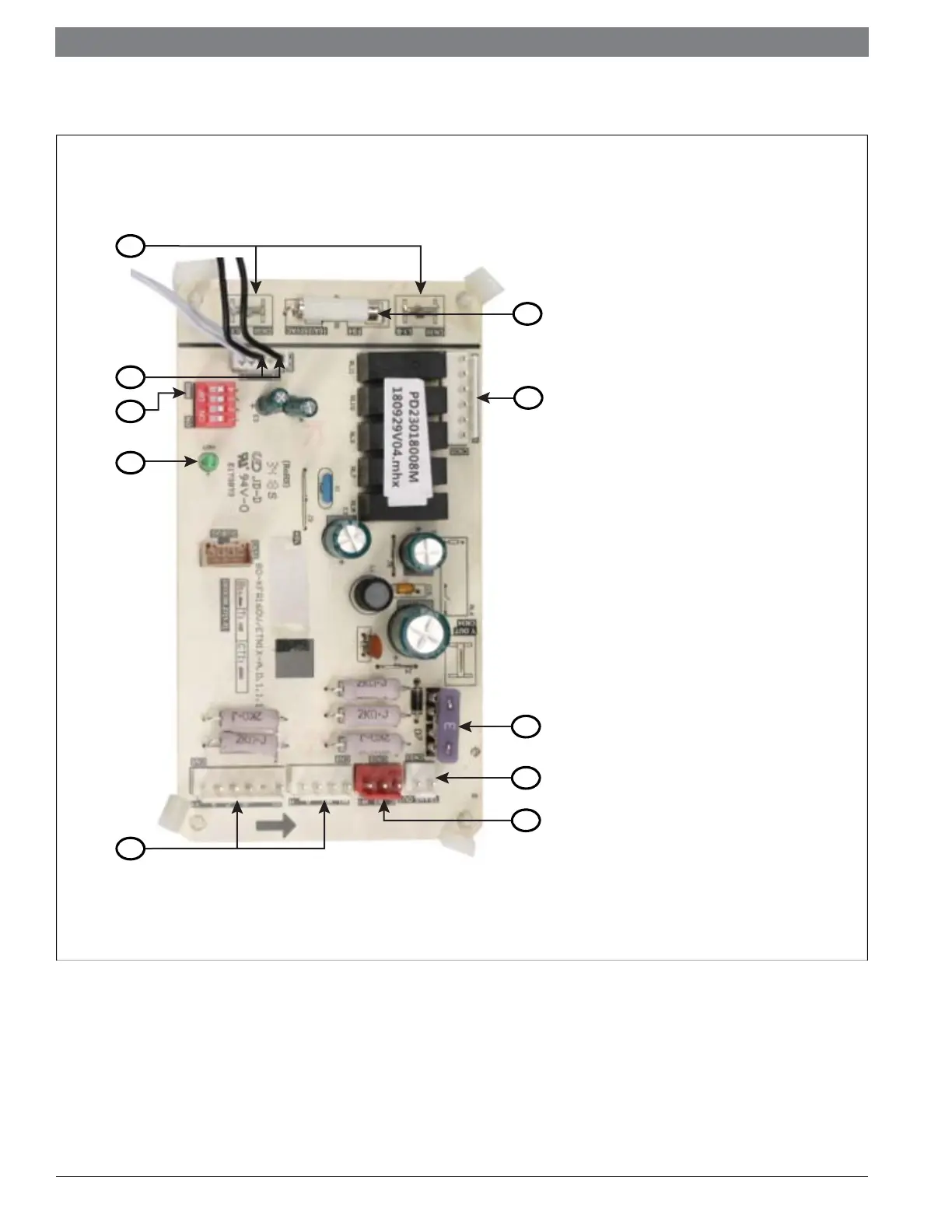

12.1.3 BVA2.0 Indoor Unit Control Board
Figure 15
No. Function Description
1 SW6 Dipswitches
2 T2 Sensor
3 High Voltage Connection
4 Non-replaceable Fuse
5 Indoor Blower Connection
6 Replaceable Fuse
7 Transformer Connection
8 Electric Heat Kit Connection
9 Thermostat Connection
10 Status LED
2
1
3
4
5
6
7
8
9
10
BVA2.0 Indoor unit control board
