10 en | System overview PLENA matrix
2020-12 | V1.1 |
User manual
Bosch Security Systems B.V.

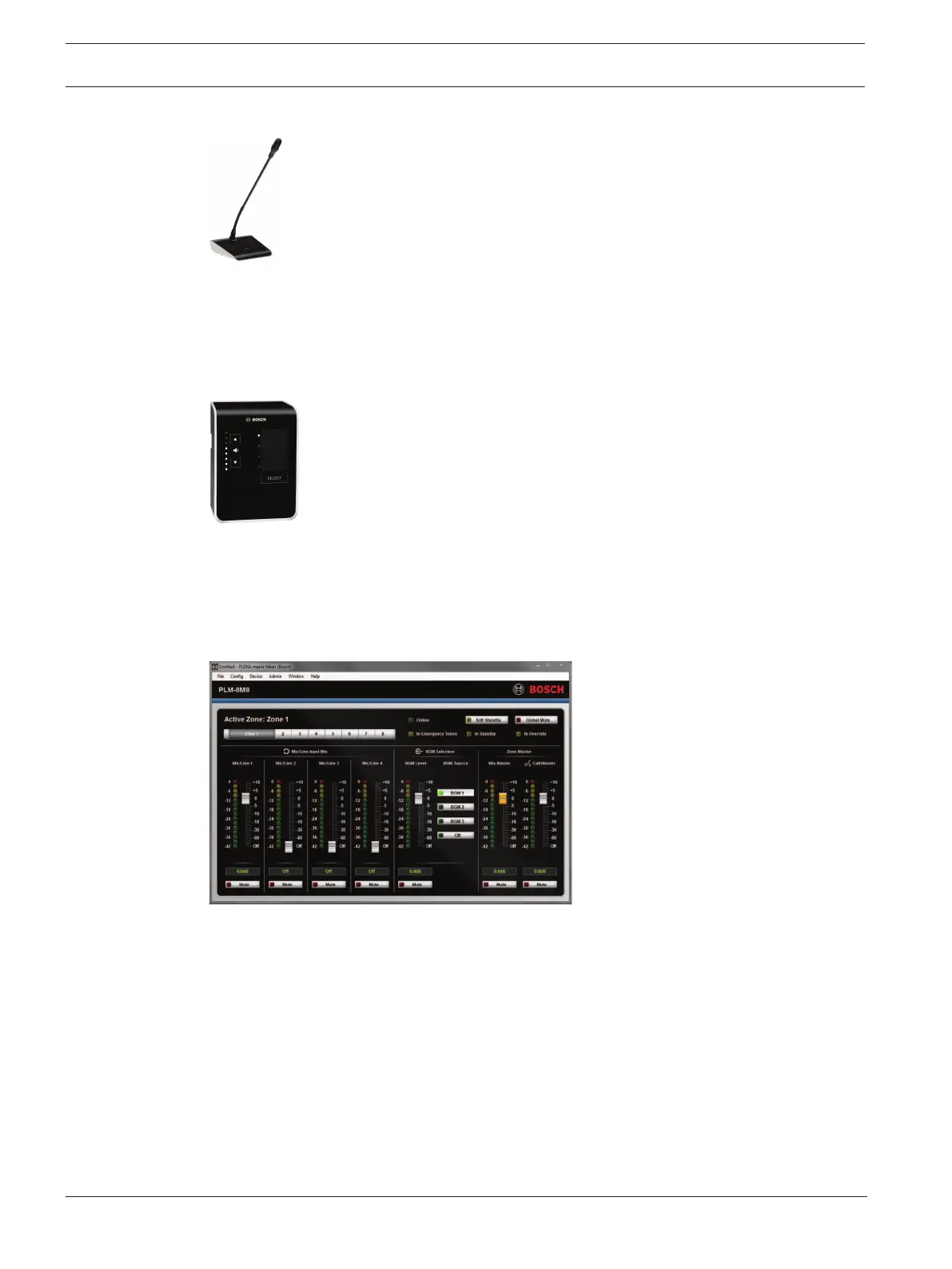

– PLM‑8CS – 8 Zone Call Station:
The 8 Zone Call Station is used to make announcements in designated zone configurations. A
total of 8 call groups can be configured in the DSP Matrix Mixer and activated via the
capacitive touch areas on the surface. The call station is powered via the PLM‑8M8 DSP Matrix
Mixer over standard CAT‑5 cables. The unit’s communication is via RS485, so multiple call
stations can be looped‑through to add more call stations to the system.
– PLM‑WCP – Wall Control Panel:
The wall control panel is used to select the input source and to adjust the audio volume level
in the pre‑selected loudspeaker zones. The wall control panel uses the same CAT‑5 cabling as
the PLM‑8CS 8 Zone Call Station with communication via RS485 and is also powered from the
PLM‑8M8 DSP Matrix Mixer. The supplied wall‑mount bracket is used to install the wall control
panel.
– PC Configuration and User GUI:
The PC GUI offers a configuration page and user operation page to setup and control the
PLM‑8M8 DSP Matrix Mixer and also the PLM‑4Px2x Amplifiers. The software GUIs are able to
be downloaded from the Bosch website: www.boschsecurity.com.
