Control Output Mapping Table

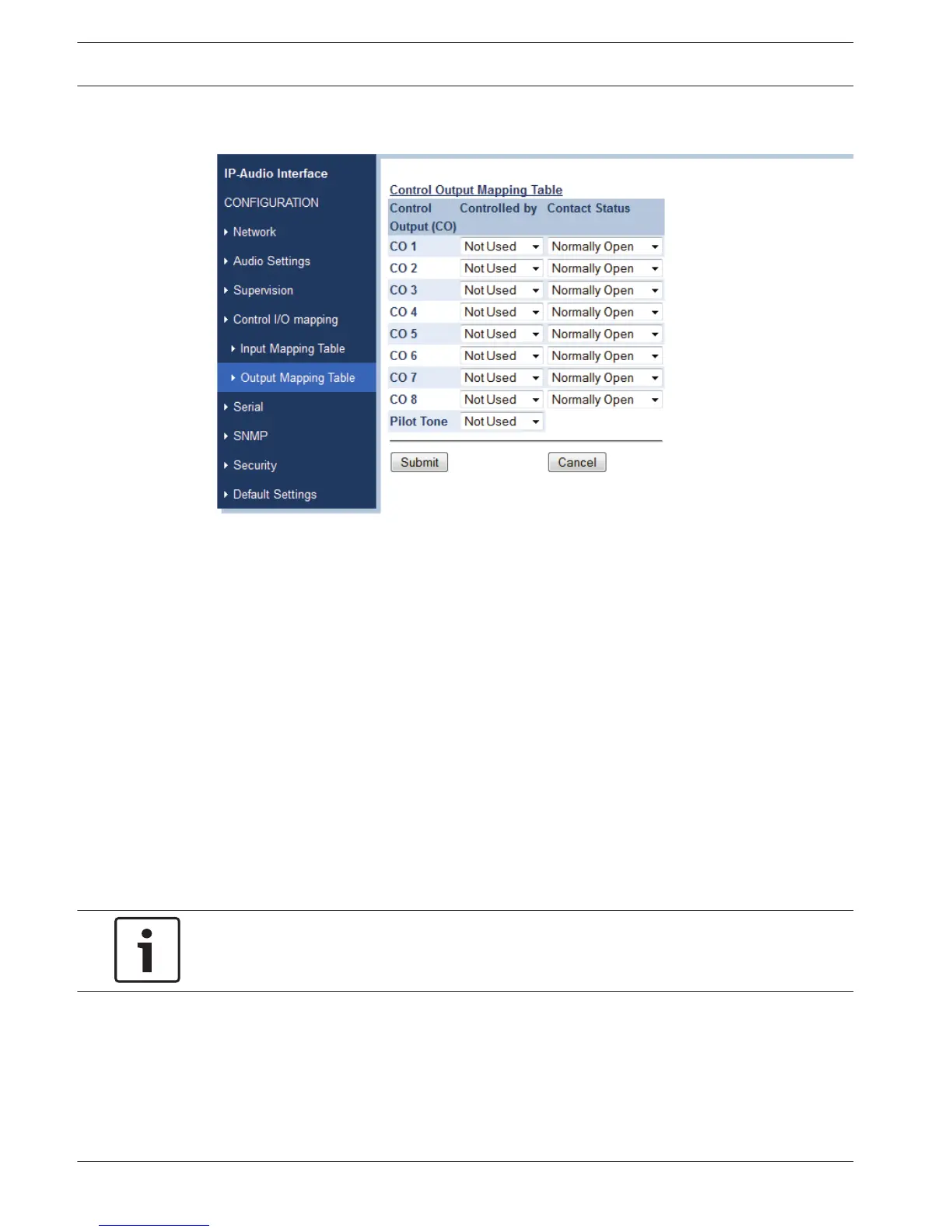

Figure 6.10: Control Output Mapping Table (default)
Defaults: Not Used/Normally Open
In the Control Output Mapping Table for each of the Control Outputs the activator (trigger) can
be defined and the way the relay contact behaves.
Options for the Control Outputs are Not Used, Permanent, Remote, Remote & Audio Loss.
– Permanent means that the Control Output contact is always Open or Closed, depending
on the Contact Status.
– Remote means that the Control Output contact is allowed to be activated by remote
actions of partner devices, see Control Input Mapping Table, page 29.
– Remote & Audio Loss means that the Control Output contact is deactivated when the
connection to one of the partner devices is lost.
In Contact Status you can set whether the Control Output is Normally open and will make
(close) on activation, or Normally Closed and will break (open) on activation.
The presence of a Pilot Tone on Audio Output 2 is considered to be special type of Control
Output. The Pilot Tone can be permanently or conditionally present or not.
Notice!
When both the main and backup power supplies are lost all contacts will be Open regardless
of the settings. The Fault Relay contact will be Closed.
Submit / Cancel button
Submit saves the set values, restarts the device and returns back to the last screen. Cancel
restores the last submitted values.
6.2.9
30 en | Configuration IP Audio Interface
2013.03 | V2.0 | Operating Manual Bosch Security Systems B.V.
