Submit / Cancel button
Submit saves the set values, restarts the device and returns back to the last screen. Cancel
restores the last submitted values.
Partner Table
The Partner Table is used to set the route parameters of up to 16 remote IP Audio Interface
devices (Partners).

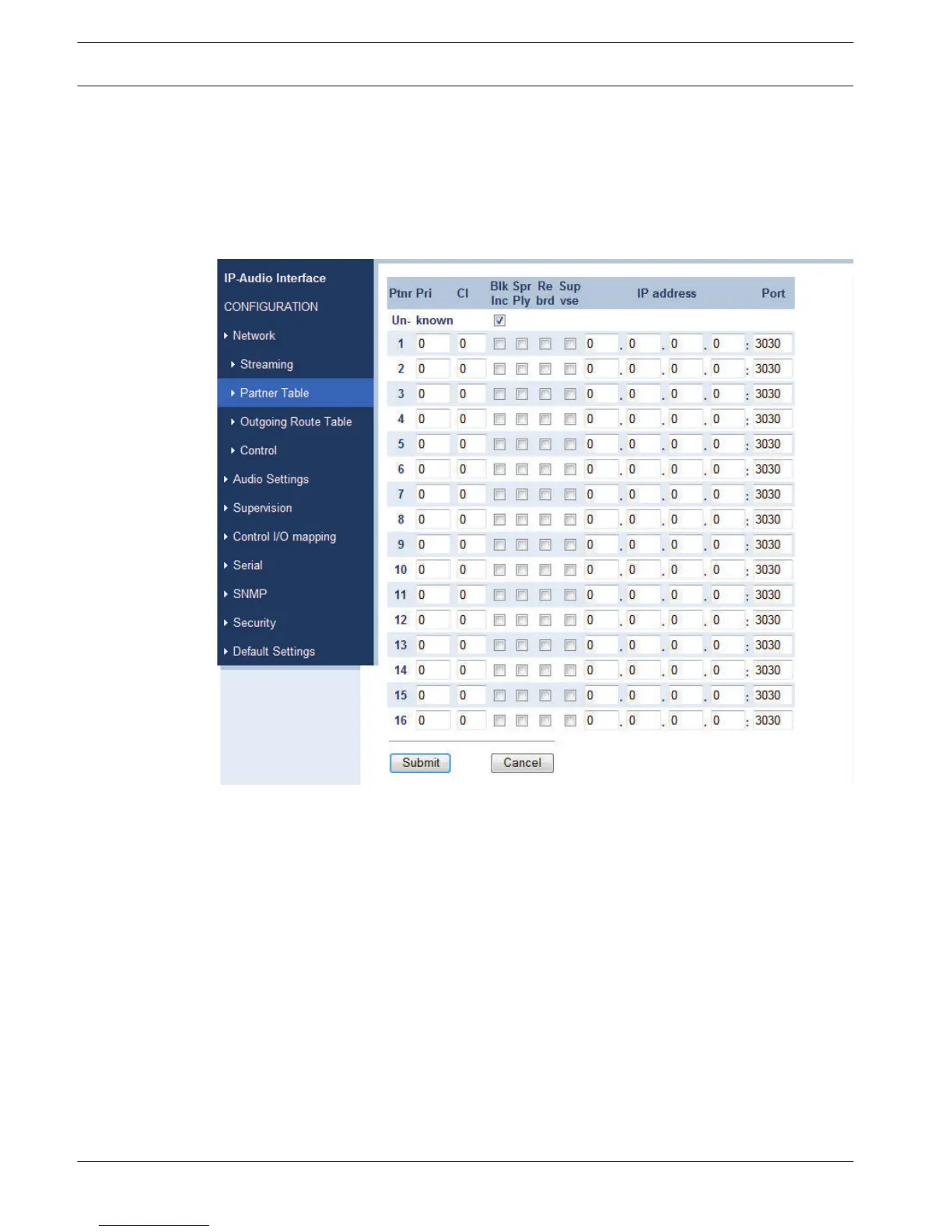

Figure 6.4: Partner Table screen (default)
Ptnr (Partner)
The first row, Un-known, is to configure the behavior of the receiving device for unknown
partners, i.e. partners that are not identified by their IP address. Then the table continues with
16 partner entries. A multicast group must always be known, so multicast addresses are
always compared with entries in the table. Unknown partners cannot have a priority assigned
and cannot be activated by a Control Input.
Pri (Priority)
In this column enter the Priority of the incoming audio streams from partners (0 - 255). The
stream with the highest priority (highest number) is accepted. Existing streams with a lower
priority are overridden, even if selected by a Control Input. Full duplex connections are
considered to be permanent one-to-one connections for which Priority settings are ignored.
6.2.3
20 en | Configuration IP Audio Interface
2013.03 | V2.0 | Operating Manual Bosch Security Systems B.V.
