Operation
Status page
The built‑in web server generates the STATUS page in the web browser by default. Note that
the STATUS page refreshes about every three seconds (screen flash).
Click STATUS on top of the page when the page is not visible. Note that Some browsers, for
example, Google Chrome, do not support automatic refreshes.
The STATUS page is divided into sections and provides real-time information about:
Control Inputs (1..8)
Control Outputs (1..8)
Audio
Codec
Power, Fault & Temperature
Last Caller

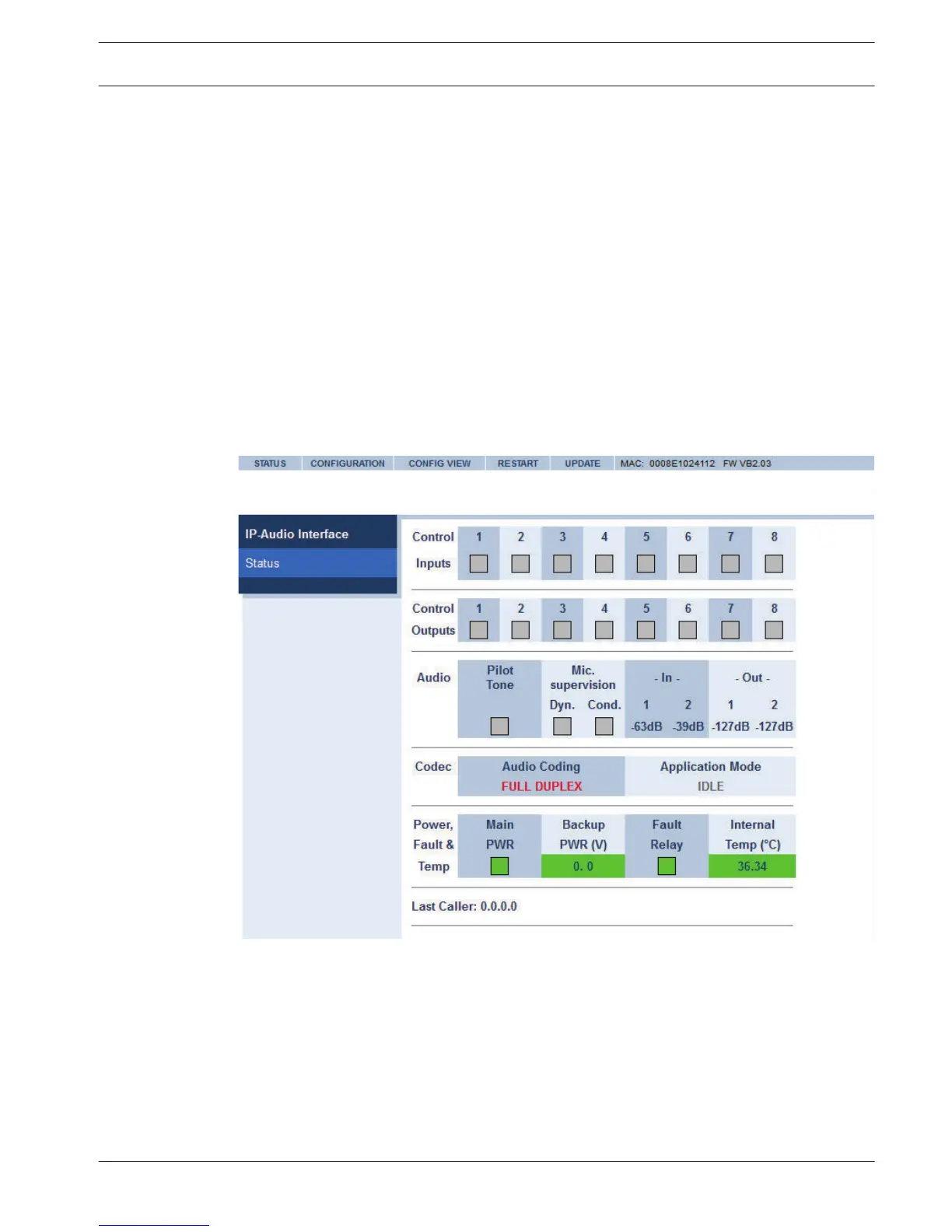

Figure 7.1: Status example screen
Control Inputs (1..8)
Visual indication of the Control Input status.
– Grey box: open contact
– Yellow box: open or shorted line
– Green box: closed contact
