SNMP
The IP Audio Interface contains an SNMP agent that can report the device status information
to a managing system using a Trap protocol operation.
The PRS‑1AIP1 IP SNMP provides fault information via the following branches:
– The commonly defined and shared “MIB II”:
iso(1).org(3).dod(6).internet(1).mgmt(2).mib-2(1)
– The audio left and right channel states defined under the Barix branch at:
iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).barix(17491).systems(2).
audio(1).states(1)
– The Bosch specific branch (where the Bosch specific traps are assigned sequentially):
iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).barix(17491).oem(10).
bosch(2)
The Bosch branch is further subdivided to define the supervised faults as data objects:
prs1aip1(1).faults(1)
One trap is defined which shall deliver a 16 bit fault register value as an INTEGER and a fault
reason as an enumerated INTEGER. This closely mimics the information found in the Config
View.
A formal definition of the required MIB is defined in BARIXOEMBOSCH.MIB which is provided
as part of the release package on the CD.

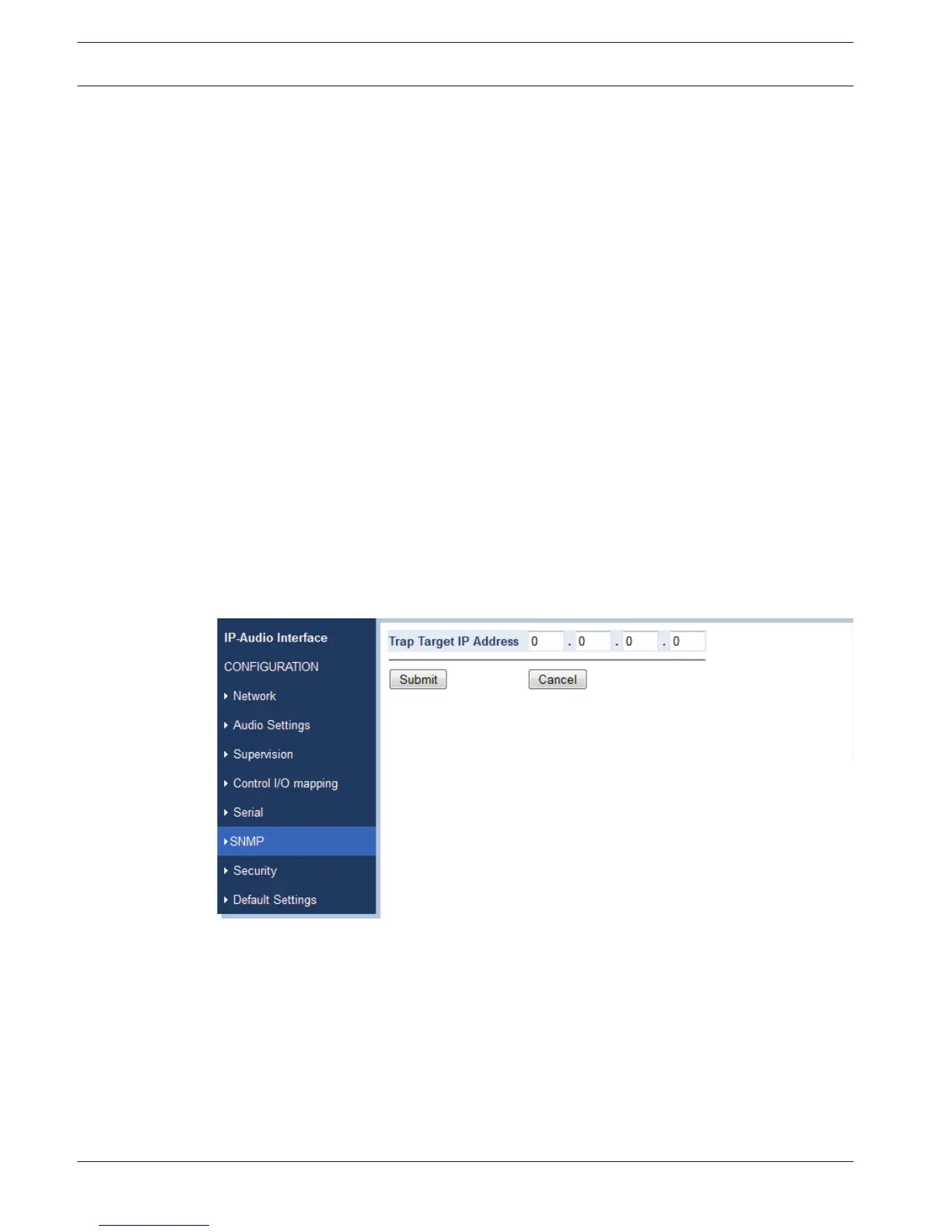

Figure 6.12: SNMP screen (default)
Trap Target IP Address
Default: 0.0.0.0
Enter the IP address of the SNMP trap destination.
Submit / Cancel button
Submit saves the set values, restarts the device and returns back to the last screen. Cancel
restores the last submitted values.
