Outgoing Route Table
The Outgoing Route Table is used to set the data stream for up to 16 remote IP Audio Interface
devices (Partners).

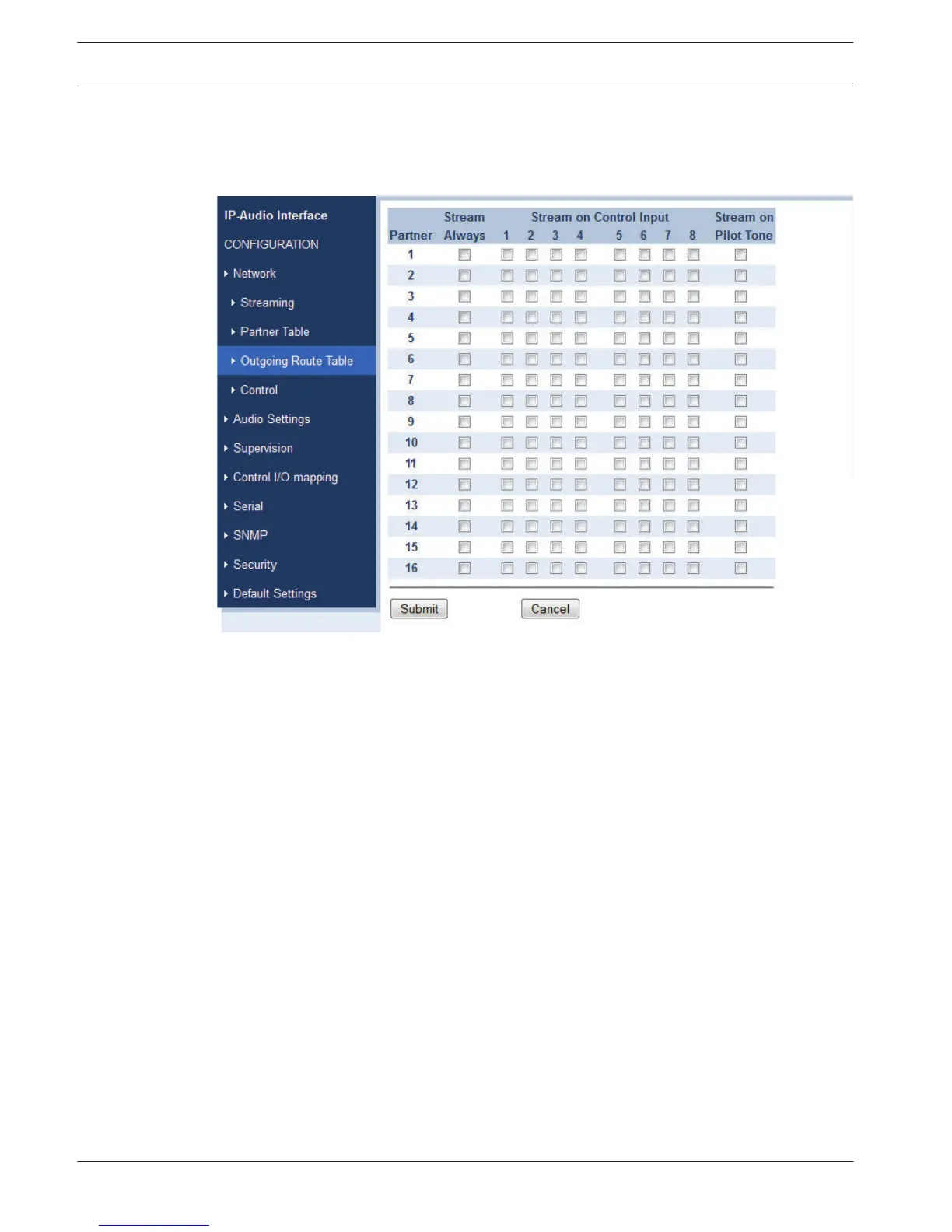

Figure 6.5: Outgoing Route Table screen (default)
Configure the streaming depending on the following events:
Stream Always
Default: unchecked
Check the check box to automatically stream to the selected partners (1..16) on start-up.
Instead of being always on, the stream can be activated on one or more Control Inputs or on
detection of an incoming Pilot Tone. Please note that this activation is edge triggered and not
level triggered, so streaming starts when one or more Control Inputs become active or when a
Pilot‑Tone is detected, but the streaming stops as soon as one of them is deactivated.
Stream on Control Input 1-8
Default: unchecked
Check the check box to stream to the selected partner (1..16) on activation of a Control Input
(1..8).
Stream on Pilot Tone
Default: uncheckedCheck the check box to stream to the selected partner (1..16) on detection
of a 20 kHz Pilot Tone on Audio Input 2.
Submit / Cancel button
Submit saves the set values, restarts the device and returns back to the last screen. Cancel
restores the last submitted values.
6.2.4
22 en | Configuration IP Audio Interface
2013.03 | V2.0 | Operating Manual Bosch Security Systems B.V.
