3−1Bosch Rexroth AGBT 6.1901070087068 / 01
Assembly and Connection
3 Assembly and Connection

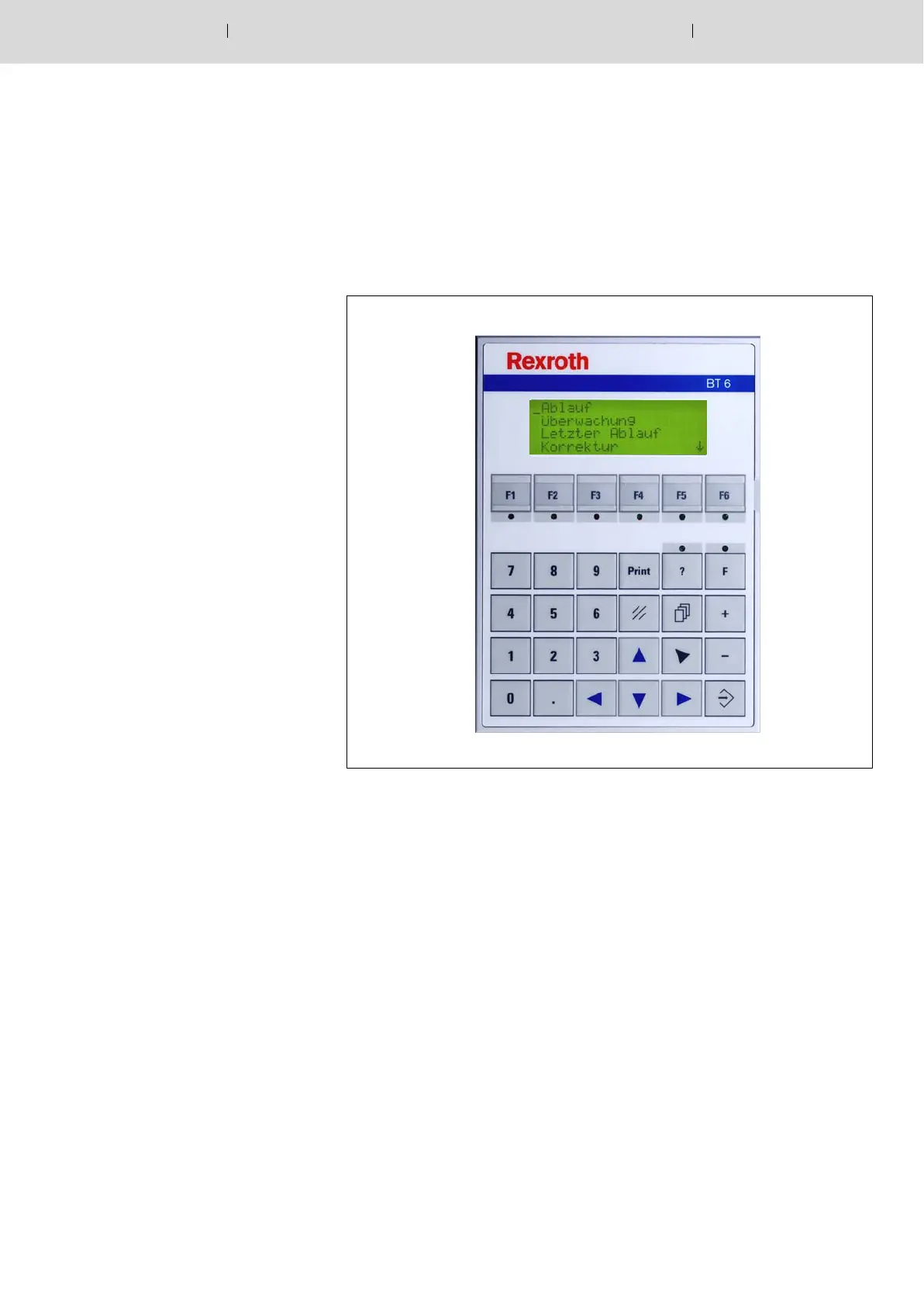

3.1 BT 6.190 built−in unit
3.1.1 Dimensions and assembly
Weight: approx. 0.6 kg
Installation location: console / hinged frame or switch
cabinet; insulated according to IP 65.
Installation position: as desired
Protection class
(according to EN 60529): front: IP 65
back: IP 20
Operating temperature range: 0_C to +50_C
Storage temperature range: −20_C to +60_C
Air humidity 3k3 according to EN 60721
condensation not permitted.
