Assembly and Connection

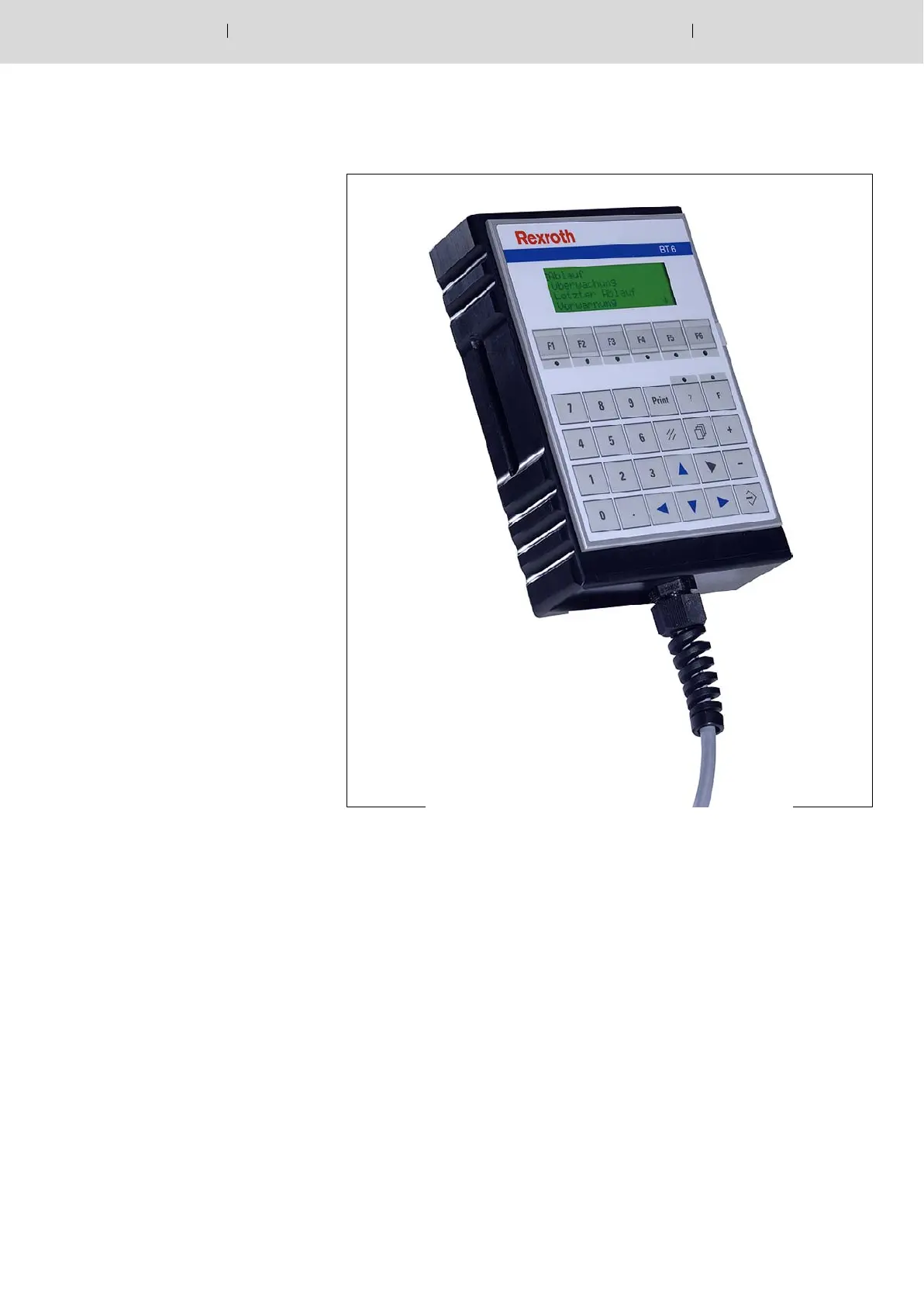

3.2 BT 6.190 − hand−held terminal (BT 6.190 HPG)
Dimensions (WxHxD; in mm): 130 x 201 x 52
Weight: approx. 1.2 kg
Housing: polyamide 6, silicon−free
Protection class: IP 54 acc. to EN 60529.
Operating temperature range: 0_C to +40_C
Storage temperature range: −20_C to +60_C
Climate class 3k3 according to EN 60721
condensation not permitted.
Connection: via cable with max. 1.5 m and 15 pins.
Sub-D plug. Connection to welding unit
housing or, using additional adapter,
directly to the weld timer.
Order No. Adapter: 1070 088 302
Fastening method: using the lifting eye (top rear) or with
the magnetic back side.
