14 | Recording
82/136 Vehicle_Control_Unit_VCU_Manual Bosch Motorsport
14.2.2 Logger settings

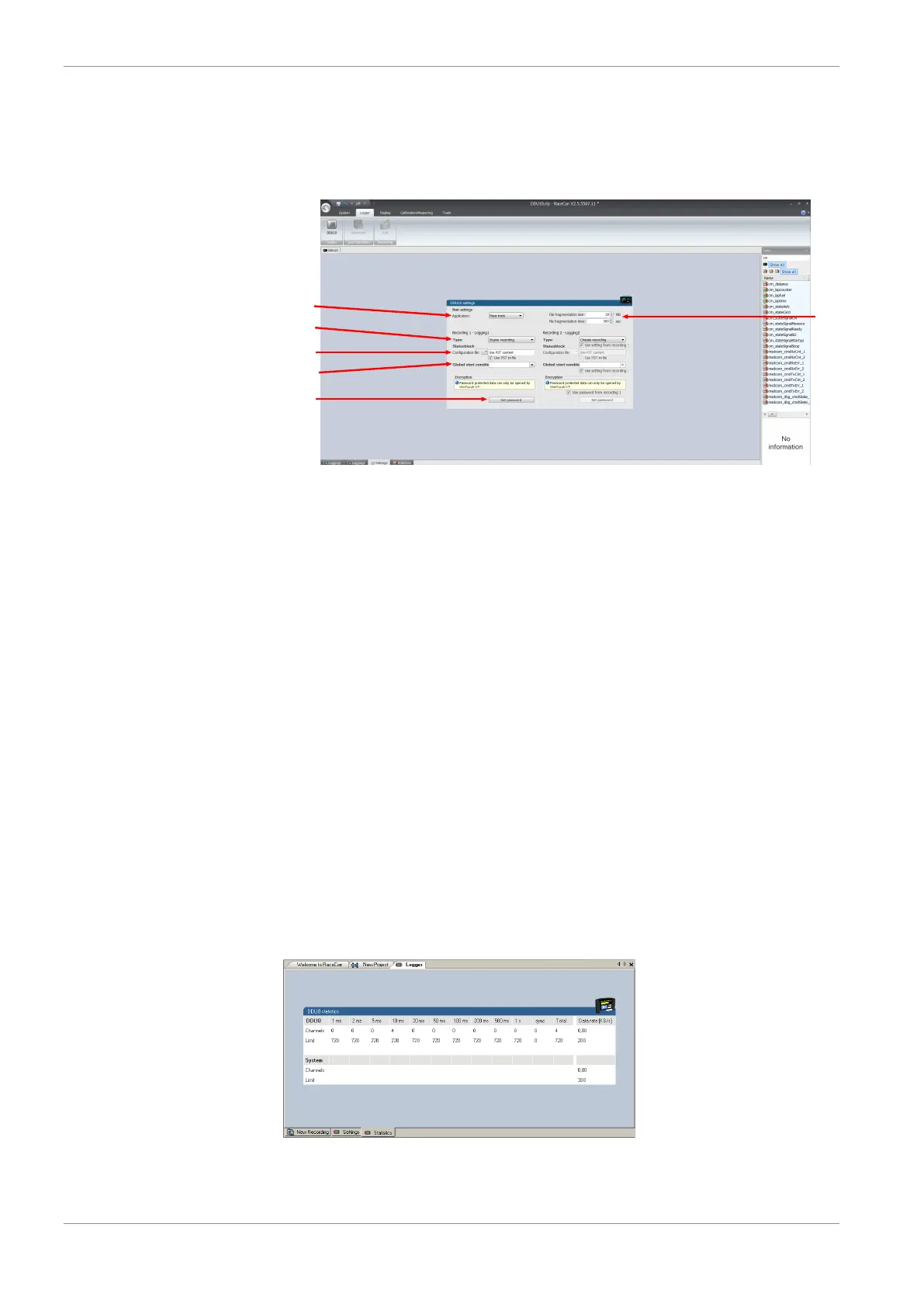

To display the global Vehicle Control Unit VCU settings, open the ‘Logger’ window and
click on the ‘Settings’ tab at the bottom.
a)
b)
c)
d)
e)
f)
a) Choose setting for outing counter mode:
– For testbench (without lap trigger) select ‘Testbench’.
– For racetrack (with lap trigger) select ‘Racetrack’.
b) Choose wether the logging partition shall be named Engine recording or Chassis re-
cording.
c) Advanced setting: Select your logging configuration file, if provided by your Bosch Sup-
port Engineer.
d) Choose or create the condition to start recording
e) Enter a password hint and a password (optional).
f) Setting for automatic fragmentation. Do not change!
14.2.3 Recording statistics
The tab ‘Statistics’ shows the channels’ allocation and their current data rate related to the
transmission frequency of the Vehicle Control Unit VCU and the whole transmission sys-
tem.
The overview helps to detect bandwidth bottlenecks of channels. Bandwidth bottlenecks
can be solved by changing the logging rate setting for each channel.
The data rate of the whole system is often less than the data rate of the Vehicle Control
Unit VCU and limits the overall transmission speed.
