Bose AMPLUS 50 User Manual

56

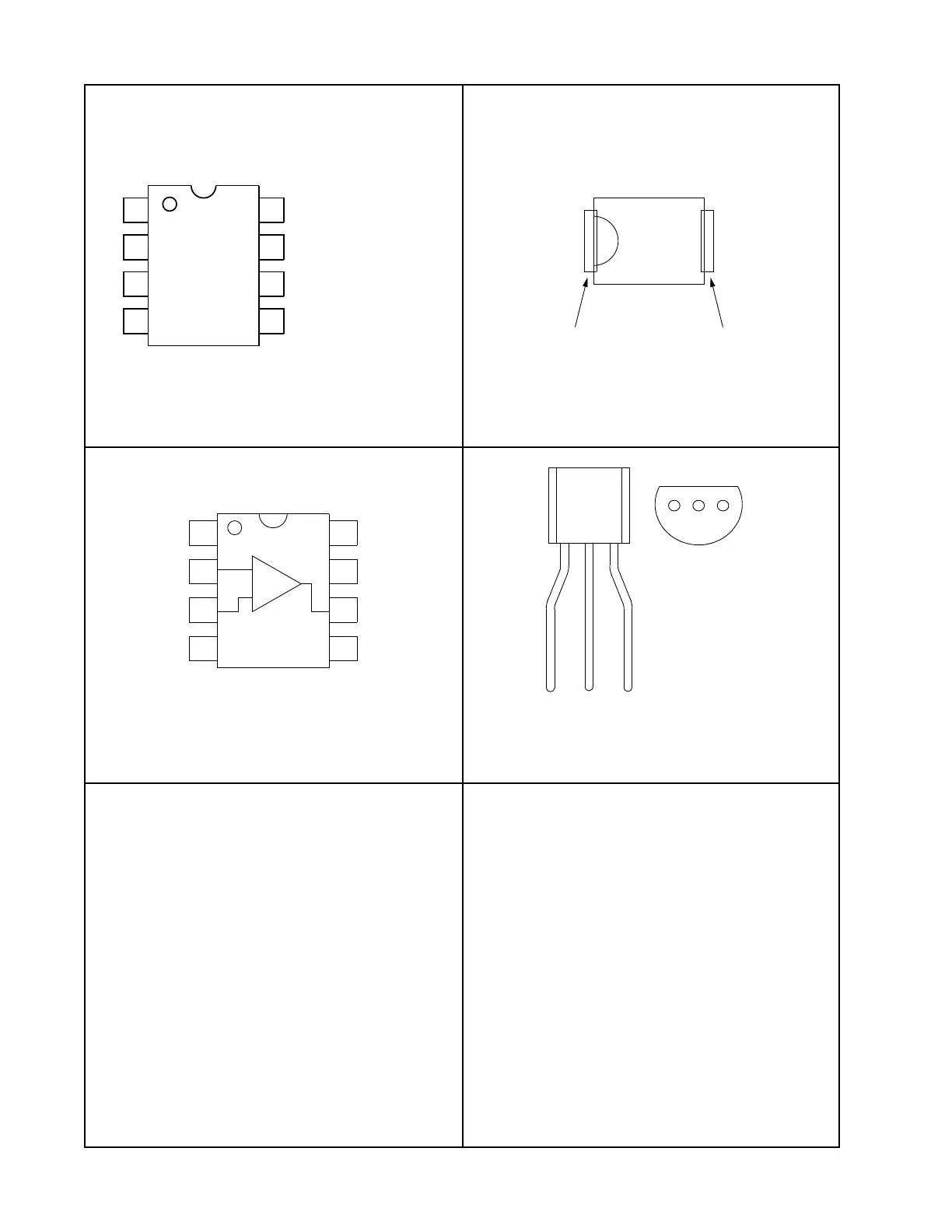

DEVICE PIN-OUT DIAGRAMS
1
2
3
4 5
6
7
8
Pin function

1. Gnd
2. + Input
3. - Input
4. V-
5. Bal
6. Bal/Strobe
7. Output
8. V+
Bose
®
P/N: 187477, NJM311M Bose P/N: 187479-001 S2A SMD Diode
CATHODE
ANODE
1
2
3
4
5
6
7
8
-
+
NC
INV. INPUT
NON-INV.
INPUT
V-
NC
V+
OUTPUT
AMPLIFIER
BIAS INPUT
BCE
BCE
BOTTOM VIEW
FRONT VIEW
Bose P/N: 188634-001, J107Bose P/N: 187617, CA3080
