Bose PANARAY System User Manual

Input CH1
Input
trim
Input
Meter
EQ
CH1
X-
over
CH1
Input CH2
Input
trim
EQ
CH2
X-
over
CH2
Input
meter
High
Low
High
Low
1 CH1 High
2 CH2 High
3 Mono High
4 CH1 Low
5 CH2 Low
6 Mono Low
7 CH1 FR
8 CH2 FR
9 Mono FR
10 CH1 No EQ
11 CH2 No EQ
12 Mono No EQ
Delay
line
Limiter
Delay
line
Limiter
Delay
line
Limiter
Delay
line
Limiter
11

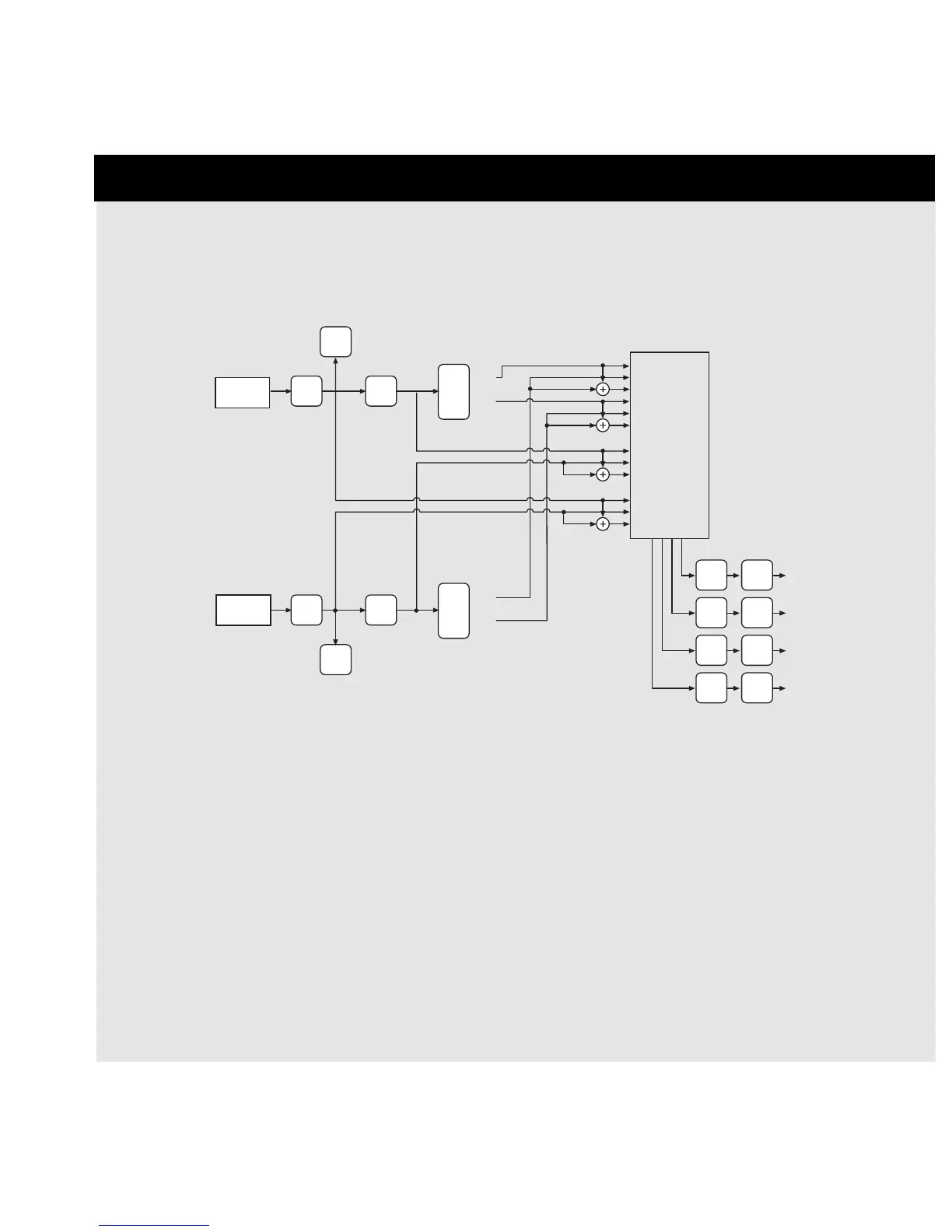

4.0 Signal Flow
The PANARAY
®
system digital controller has the ability to run a single stereo preset, a single mono preset, or
to run in dual mono mode. In the following section, the controller’s signal flow is broken down to provide a
better understanding of its full functionality.
Output 4
Output 1
Output 3
Output 2
Stereo Operation: When a preset is loaded from the stereo bank, the EQ/crossover blocks both process
each input the same way, meaning that the parameters are “linked”. The signal then passes through the router
section where the CH1 and CH2 inputs are sent to independent output channels for stereo operation.
Mono Operation: When a preset is loaded from the mono bank, the EQ/crossover blocks both process each
input the same way, meaning that the parameters are “linked”. The signal then passes through the router sec-
tion where the CH1 and CH2 inputs are summed to mono. The controller has the ability to sum a stereo signal
to mono, or, it can process a single input for mono operation. Audio information is routed to the same outputs
regardless of the number of inputs that are connected.
Dual Mono Operation: When the PANARAY
®
system digital controller is used in dual mono mode, the
EQ/crossover blocks process each input independently – allowing the user to run two independent speaker
EQs. The router also processes each input independently, so each output is discrete.

Bose PANARAY System Specifications

General

Brand	Bose
Model	PANARAY System
Category	Controller
Language	English
