Bose PANARAY System User Manual

10

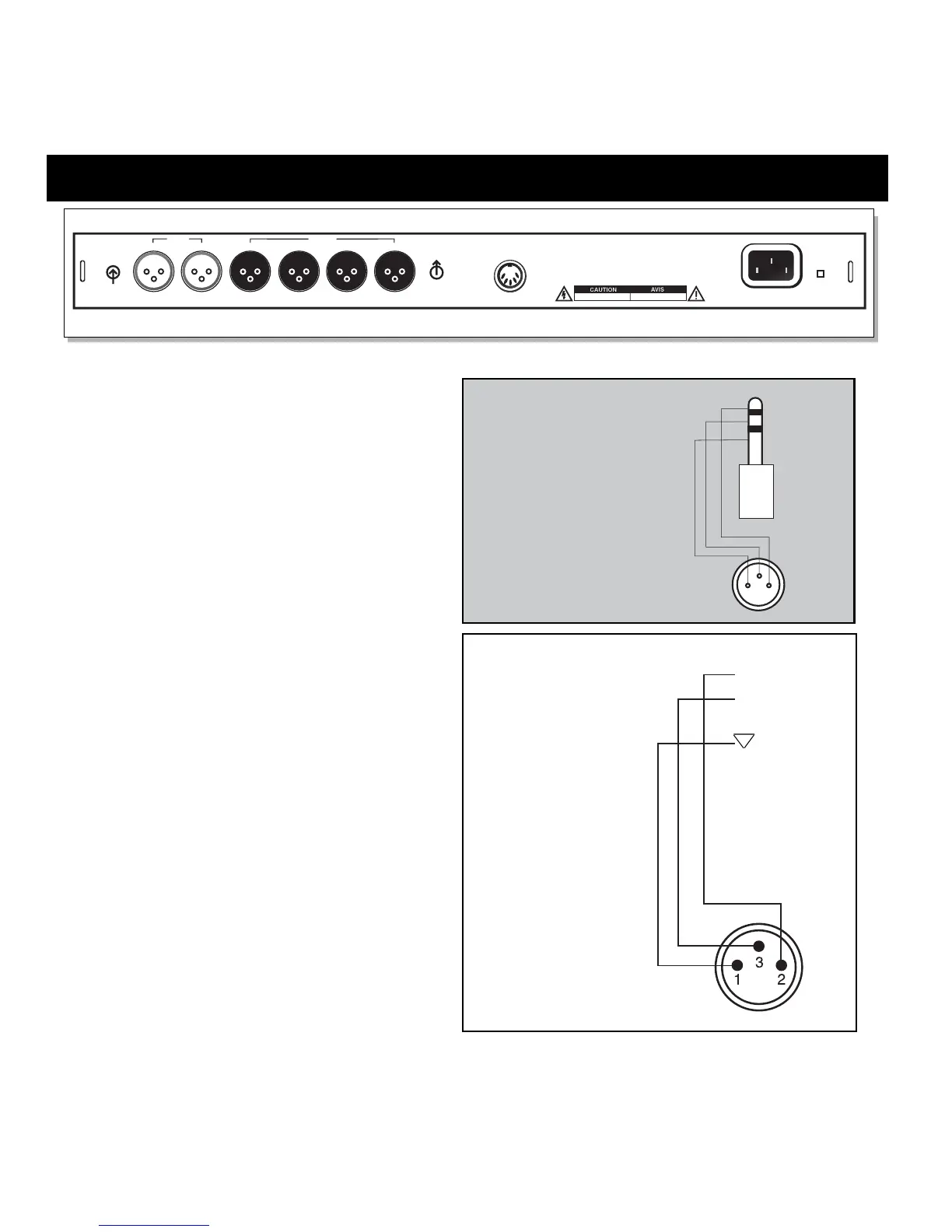

3.0 Rear Panel
Bose Corporation, Framingham, MA 01701-9168
Made in the U.S.A.
OUTPUTS
INPUTS
CH1
CH2 CH3
CH4
CH2
CH1/MONO
100-240V~AC
50-60Hz
300W MAX
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
RISK OF ELECTRICAL
DO NOT OPEN
POWER
COM
Balanced XLR Inputs:
Two balanced XLR inputs
Balanced XLR Outputs:
Four balanced XLR outputs
COM Port:
5-pin DIN that will be used for future
software upgrades or for adding new
Bose
®
speaker EQ presets
Power Input:
100-240VAC switching power supply
input
XLR Wiring
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
+ Hot
– Cold
Ground
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
1
2
3
TIP
RING
GND
