5.1.1 PRESET Button – Stereo Bank

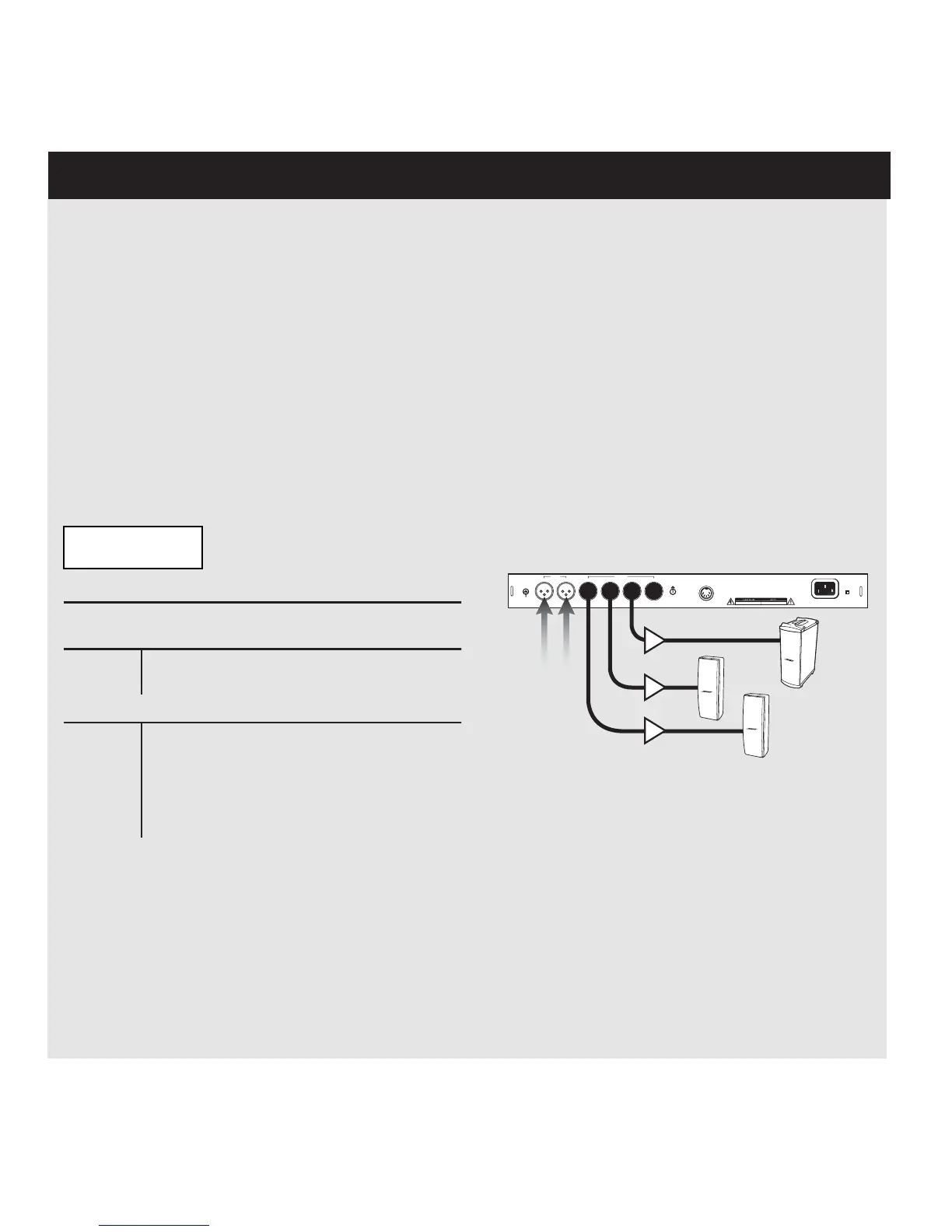

Example 3: Stereo Mid-High with Mono Bass
Bose Corporation, Framingham, MA 01701-9168
Made in the U.S.A.
OUTPUTS
INPUTS
CH1
CH2 CH3
CH4
CH2
CH1/MONO
100-240V~AC
50-60Hz
300W MAX
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
RISK OF ELECTRICAL
DO NOT OPEN
POWER
COM
Left
Right
From mixer
MB4 speaker
Mono
(Low freq)
402-II speaker
Left
(High freq)
402-II speaker
Right
(High freq)
Due to space limitations in the PANARAY
®
system digital controller, there are no Presets that default to
a Stereo Mid-High with Mono Bass configuration. To set up the controller for this operation, simply per-
form the following steps.
1. Select the desired Preset from the Stereo bank.
2. Press the UTILITY Button and use the Arrow DOWN button to navigate to Output Route 3 and
Output Route 4. Set both outputs to Mono/Low.
Now all of the bass content is set up to be summed to mono, but the mid-high devices will still be
stereo.
Note: Save all changes before loading a new Preset. Unsaved router changes will be lost if another
speaker EQ Preset is loaded. To save settings see section 11.0.
Stereo
402II+MB4
PANARAY System Digital Controller Display
