9

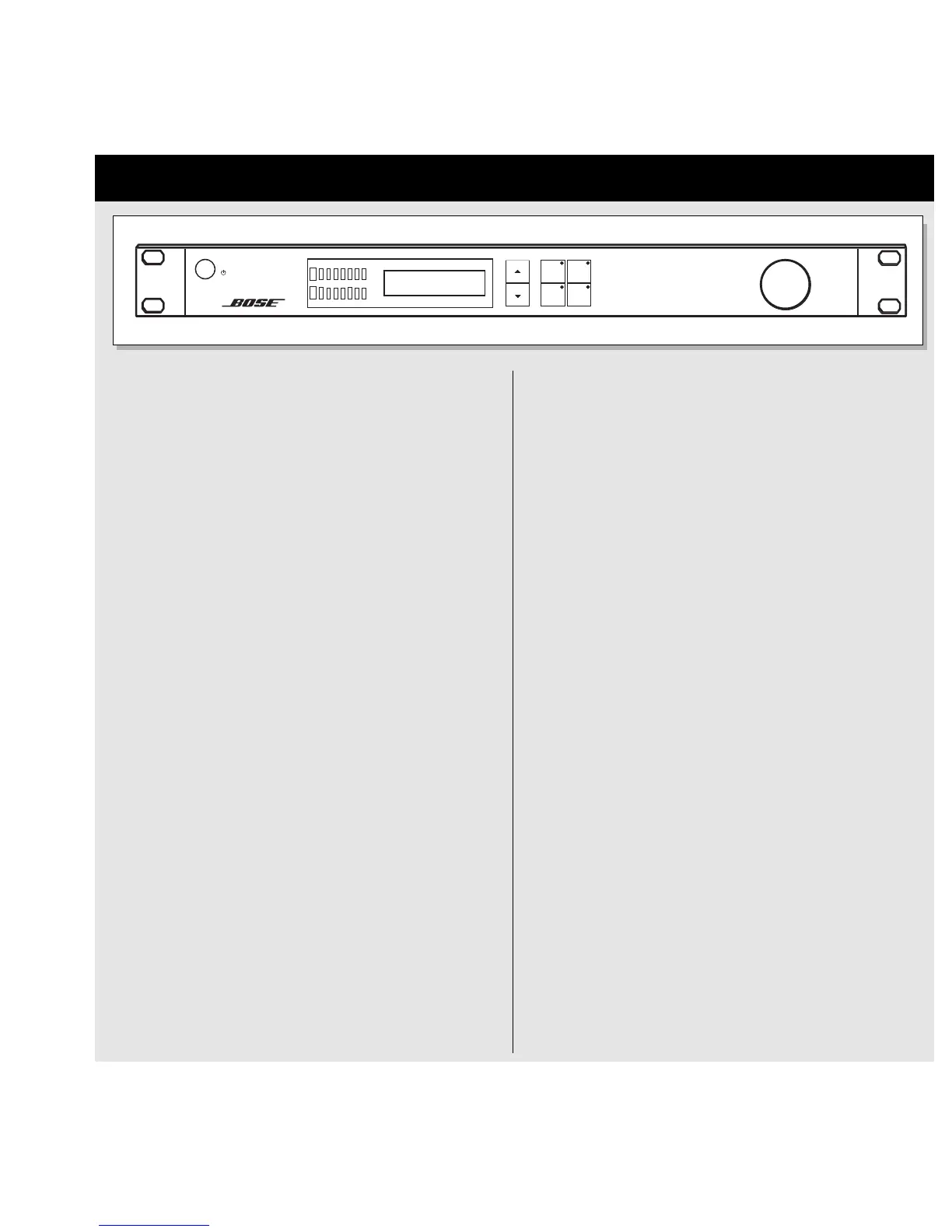

2.0 Front Panel
STANDBY button:
Standby on/off
Input Meters:
The peak meter shows the input level of left
and right channels. The meter range is:
O (Overload), 0, -6, -12, -24, -40dB
Overload LEDs:
The Overload LEDs indicate one of two
situations.
• The input level is clipping (you will hear it).
• There is an internal DSP overflow.
The Overload LED is lit when one sample is
at 0 dBFS.
Display:
The 2 x 16 LCD displays Preset names,
parameter names, and values depending on
the mode of operation.
Arrow UP Button:
Press to navigate up through the user inter-
face.
Arrow DOWN Button:
Press to navigate down through the user
interface.
PRESET Button:
Press to enter preset mode, which pro-
vides access to Bose
®
speaker EQ pre-
sets.
LIMITER Button:
Press to access output limiter parameters.
UTILITY Button:
Press to access ROUTING, LEVEL and
general SYSTEM parameters.
DELAY Button:
Press to access output delay parameters.
Encoder Wheel:
Selects presets and changes parameter
values.
S
TANDB
Y
Stereo Bank
802 Full Range
-dB
L
R
40 24 18 12 6 0 O
PA NA R AY SYSTEM DIGITAL CONTROLLER
PRESET
LIMITER
UTILITY
DELAY
INPUT METER TPM
