4.2 Signal Flow – EQ and Crossover
2. EQ and Crossover:

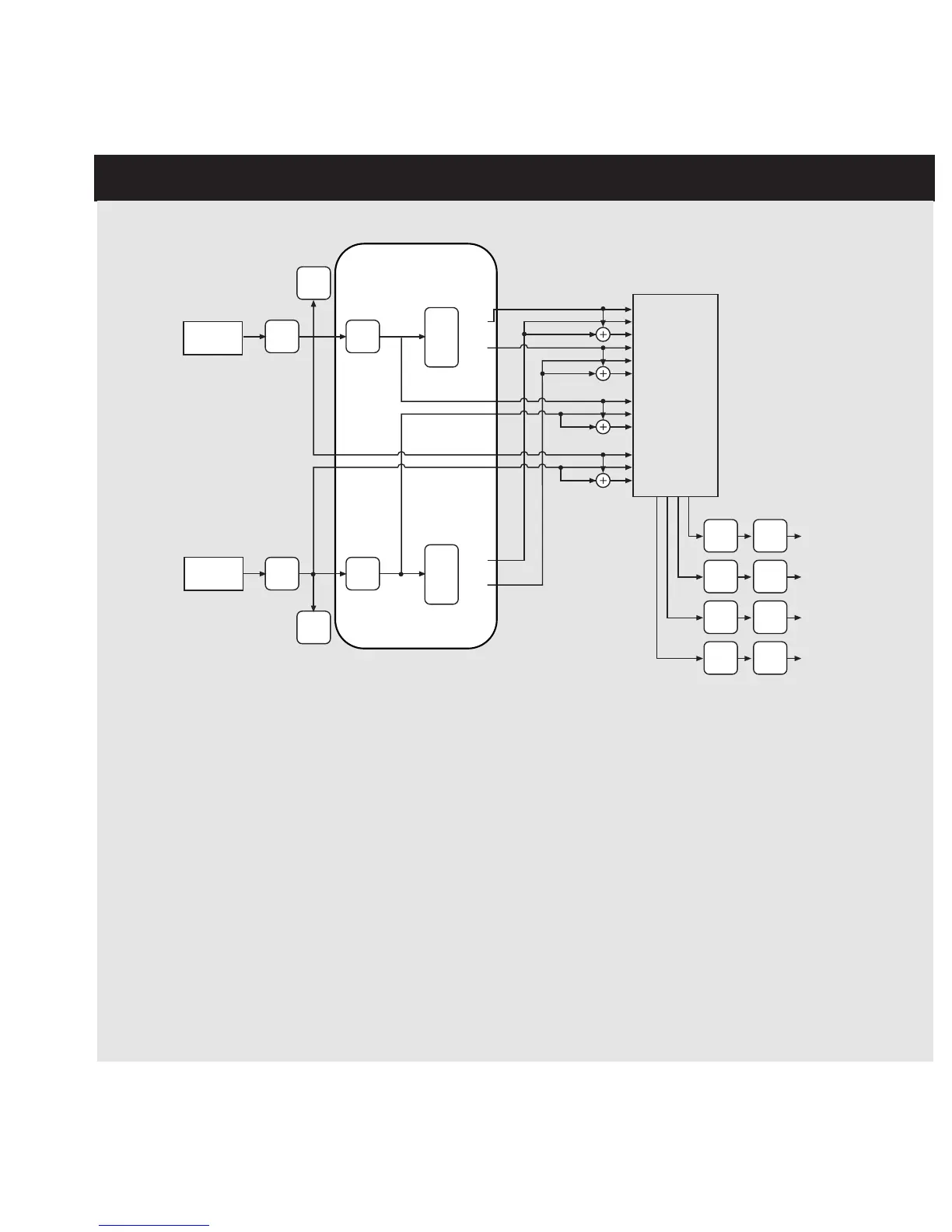

Next, the program material passes through the EQ and crossover section.
Input CH1
Input
trim
Input
Meter
EQ
CH1
X-
over
CH1
Input CH2
Input
trim
EQ
CH2
X-
over
CH2
Input
meter
High
Low
High
Low
1 CH1 High
2 CH2 High
3 Mono High
4 CH1 Low
5 CH2 Low
6 Mono Low
7 CH1 FR
8 CH2 FR
9 Mono FR
10 CH1 No EQ
11 CH2 No EQ
12 Mono No EQ
Delay
line
Limiter
Delay
line
Limiter
Delay
line
Limiter
Delay
line
Limiter
Output 4
2. EQ and Crossover
Output 3
Output 2
Output 1
