8
1.0 Introduction
Thank you for purchasing the Bose
®
PANARAY
®
system digital controller.
The PANARAY system digital controller uses a digital signal processing (DSP) architecture to provide
smooth, accurate spectral response for Bose professional loudspeakers that require active equalization.
Bose professional loudspeaker EQ can be applied by simply selecting the appropriate preset and config-
uration. No additional programming is required.

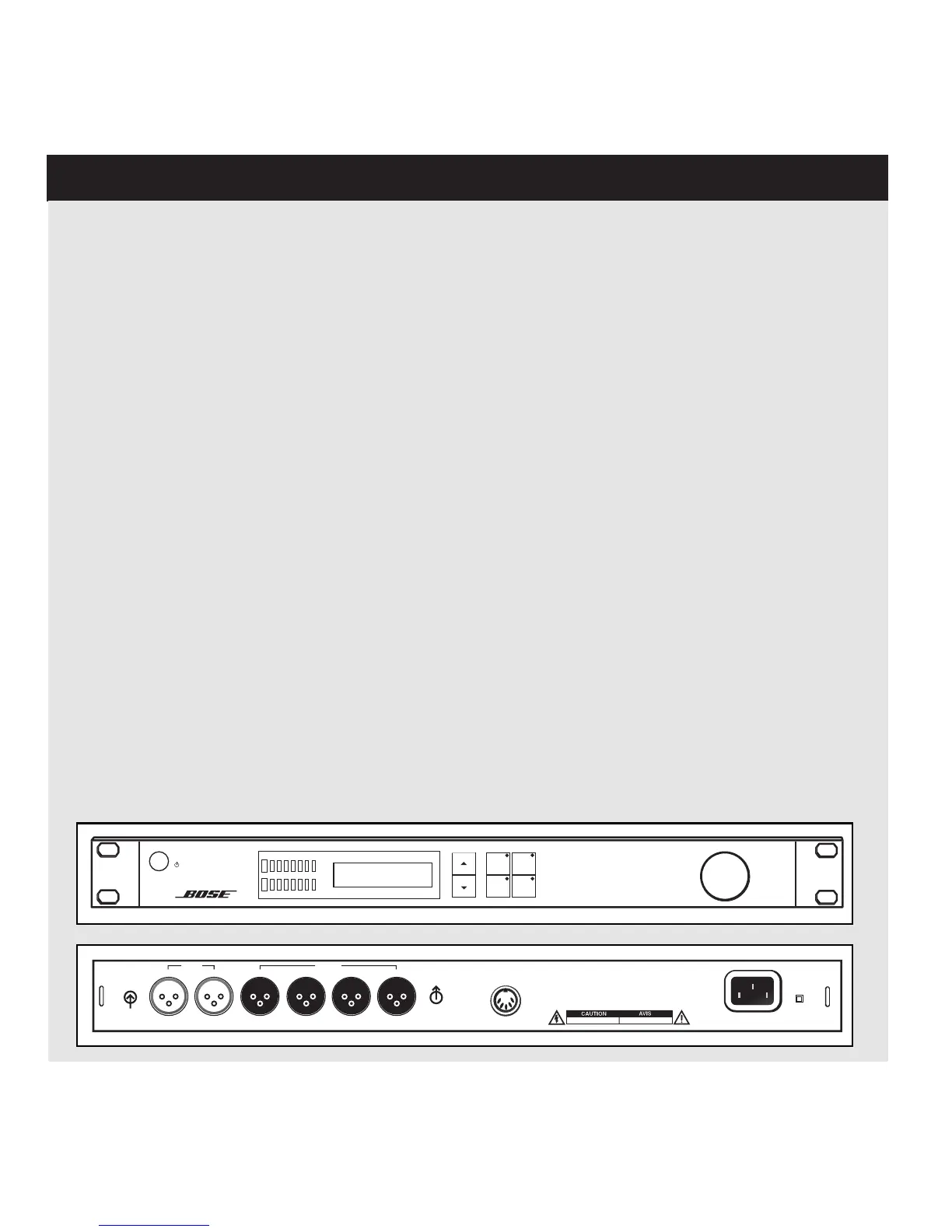

The PANARAY system digital controller has two balanced XLR analog inputs and four balanced XLR
analog outputs. It can be configured to run two mono Bose speaker EQ presets or a single stereo Bose
speaker EQ preset (including preset crossover settings).
There are a total of 180 presets, which are separated into Stereo, Mono, and Bass Array Banks. All rout-
ing is automatic, based on the selected preset and configuration. See the preset chart in section 13.0 for
a full list of presets with descriptions and output routing defaults.
In addition to providing Bose speaker equalization, the PANARAY system digital controller also has the
following easy-to-use programmable features:
• Four independent programmable line delays (200 ms per output) that can be used for decentralized or
distributed speaker alignment and for creating custom bass arrays.
• Four independent programmable output limiters that can be set to protect speakers from unpredictable
spikes in program material.
• Programmable signal router that allows each output to select Full Range, High Pass, Low Pass or
Bypass EQ combinations of input signals.
Stereo Bank
802 Full Range
-dB
L
R
40 24 18 12 6 0 O
PANARAY SYSTEM DIGITAL CONTROLLER
PRESET
LIMITER
UTILITY
DELAY
INPUT METER TPM
Bose Corporation, Framingham, MA 01701-9168
Made in the U.S.A.
OUTPUTS
INPUTS
CH1
CH2 CH3
CH4
CH2
CH1/MONO
100-240V~AC
50-60Hz
300W MAX
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
RISK OF ELECTRICAL
DO NOT OPEN
POWER
