4. Description
Pos: 25 /679-BOW A/HF-Geräte/ ARC 200/250/3 00e/4 Beschreib ung/Symbole am Produkt @ 6\mod_12988 73497580_6.doc @ 48986 @ 2

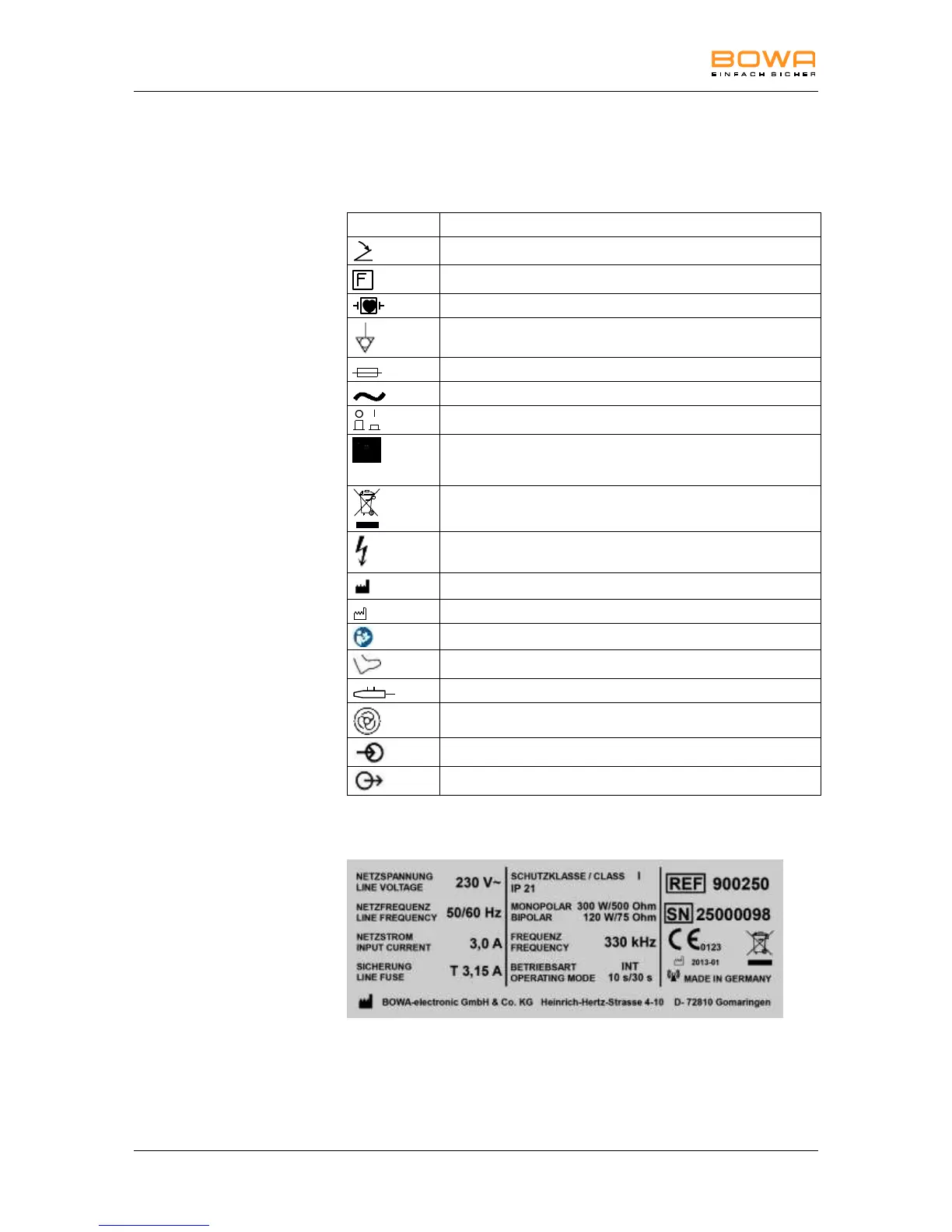

4.1. Icons on the device
Symbol
Designation
Foot switch connector
Neutral electrode isolated from ground for HF
CF-type device with defibrillation protection
Equipotential bonding
Fuse
Alternating current
On/off switch
During activation (of the HF device) RF energy in the
radio frequency range 9 kHz to 400 GHz is applied,
which produces electromagnetic radiation.
Labeling of electrical and electronic devices in accordance with
Directive 2002/96/EC (WEEE), see Disposal
Identification of (active) HF output;
caution: dangerous electrical voltage!
Manufacturer
Date of manufacture
Comply with the user manual
Foot switch
Finger switch
AUTOSTART
Fiber-optic signal input
Fiber-optic signal output
Pos: 26 /679-BOW A/HF-Geräte/ ARC 200/250/3 00e/4 Beschreib ung/Typensc hild @ 6\mod_12 97065978136 _6.doc @ 478 95 @ 3
4.1.1. Rating label
Figure 4-1: ARC 250 rating label
(An ARC 250 rating label is shown here. REF and SN are
different for the ARC 303 (e.g. REF 900-303,SN 30300815)
