Legend
6 Operating Manual ARC 250 / 303 900-301_IFU-V2.2_11316-S0-20131023-EN

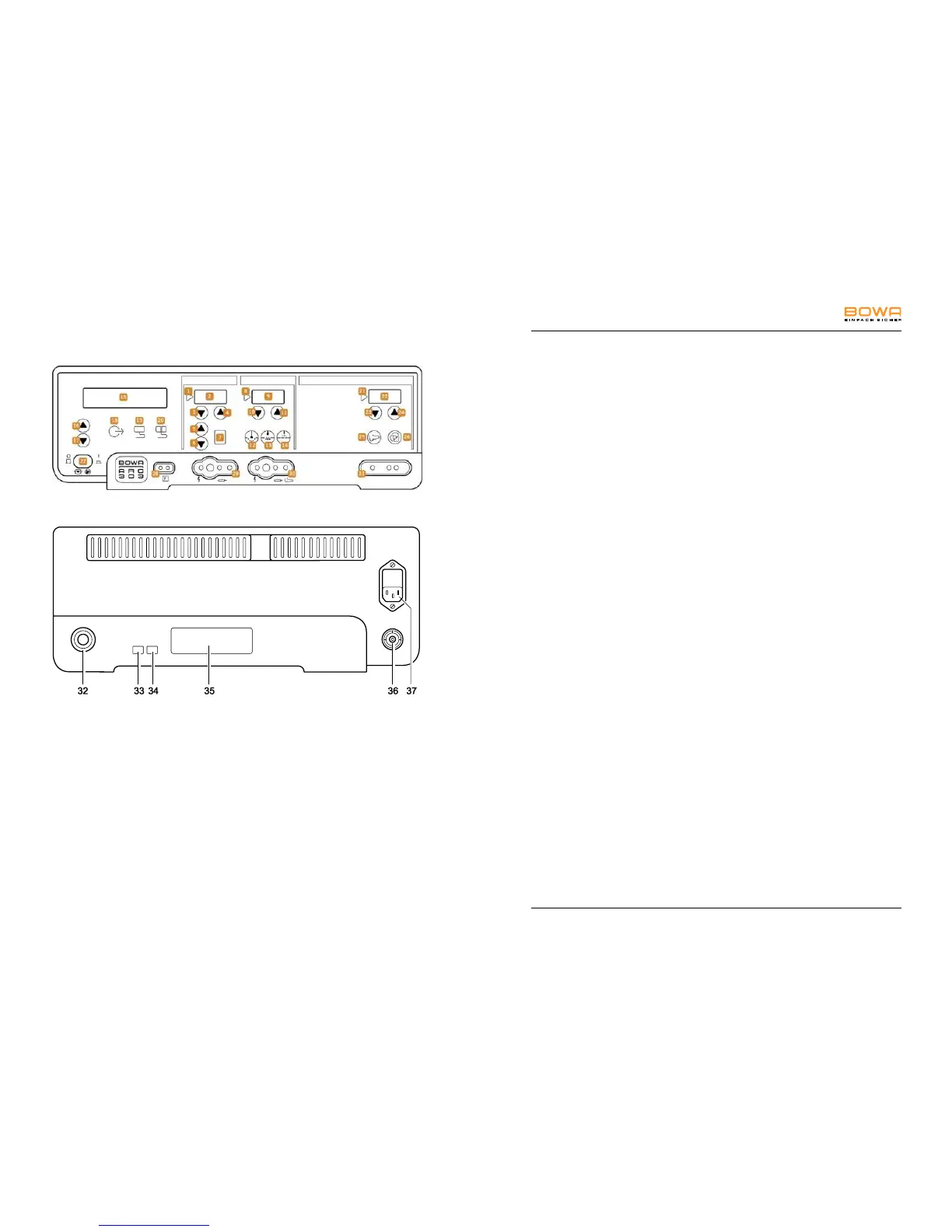

Legend
1
"Monopolar Cut" indicator arrow (yellow)
2
"Monopolar Cut" 7-segment display
3/4
Power limitation for monopolar cutting
5/6
Key for the degree of scabbing during monopolar cutting
7
"Monopolar Cut" blend factor indicator
Blend settings 0–9
8
"Monopolar Coag" indicator arrow (blue)
9
"Monopolar Coag" 7-segment display
10/11
Power limitation for monopolar coagulation
12
Key/indicator for "Moderate Coagulation" current mode
13
Key/indicator for "Forced Coagulation" current mode
14
Key/indicator for "Spray Coagulation" current
15
Indicator on main display: programs and information
Current indicator on 2-line display
16/17
Program key
18
Error status indicator
19
EASY monitoring for one-piece neutral electrode (EASY
one-piece monitoring)
20
EASY monitoring for split neutral electrode (EASY split
monitoring)
21
Indicator arrow for "Bipolar Coag" (blue)
22
"Bipolar Coag" 7-segment display
23/24
Power limitation for bipolar coagulation
25
Key/indicator for "Bipolar Output" FOOT SWITCH
(socket connector 31)
Only for bipolar coagulation!
26
Key/indicator for AUTOSTART "Bipolar Output" (socket
connector 31)
Only for bipolar coagulation!
27
On/off switch
28
Socket for the neutral electrode (NE)*
29
Socket connector for monopolar instruments with hand
switch* (only for ARC 303)
30
Socket connector for monopolar instruments with hand or
foot switch, Bovie connector or 4 mm monopolar endoscope
connector, or 3-pin connector*
31
Socket connector for bipolar instruments with foot switch or
AUTOSTART*
*
Application part F according to IEC 60601-1
