BÖWE P 12 - Side View of the Machine

11
3 View of the Machine

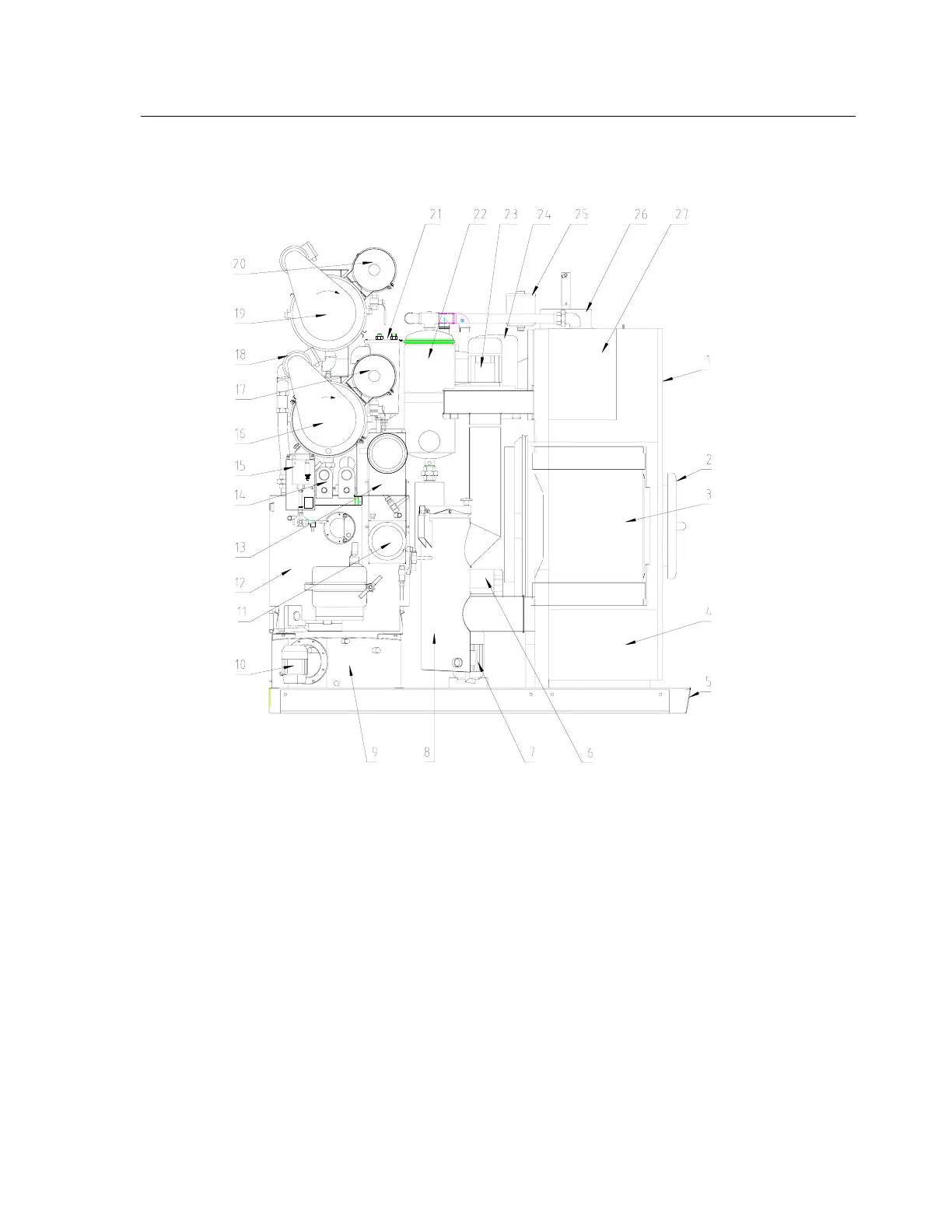

3.2 Side View of the Machine
Slimline
707758-02-0
1 Switch panel 14 Dosing unit
2 Loading door 15 Spraymatic SPP
3 Cage 16 Economy filter 1
4 Tanks 1 + 2 17 Cartridge adsorption filter 1 *
5 Safety trough 18 Filter drive
6 Cage drive 19 Economy filter 2 **
7 Solvent pump 20 Cartridge adsorption filter 2 *
8 Button trap/lint filter 21 Condenser
9 Special tank 3 ** 22 Slimsorba carbon container **
10 Pump for still rake out system 23 Fan
11 Safety separator ** 24 Refrigeration unit
12 Still 25 Venting and aeration filter
13 Water separator 26 Air shaft flap
27 Air shaft
* Option, USA standard
** Option
P12
