35
7 Functional Units
7.13 Cool-Down

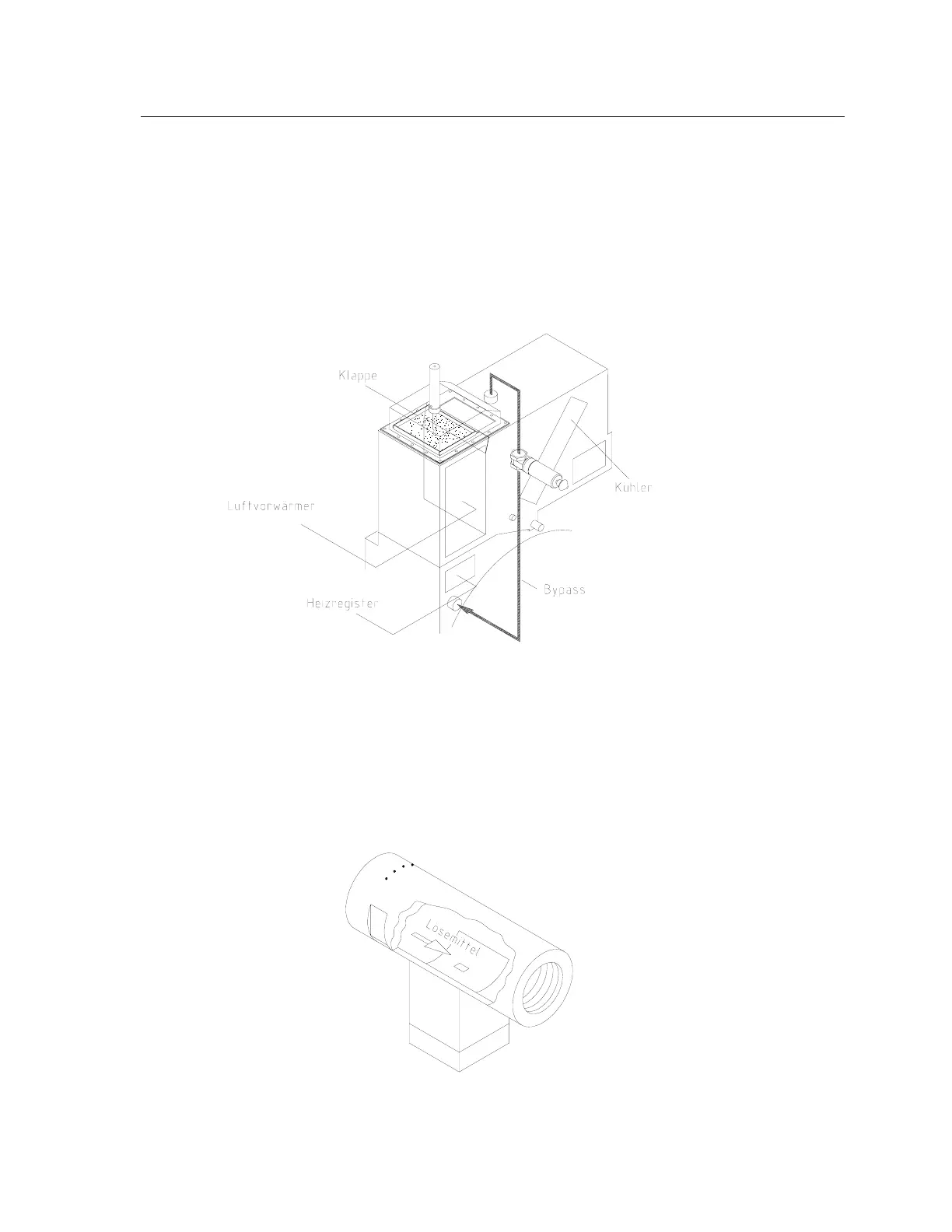

The cool-down is the process of guiding the air that was cooled in the airshaft in such a way that it
avoids the pre-heater and the heater battery.
There is a flap built into the airshaft for turning the air. Consequently, in machines with an
adsorption unit, cold air is directed over the carbon, which increases the useful life of the carbon.
In machines without Slimsorba, the cooled air is guided around the pre-heater and heater battery
via a bypass line to the cage. This results in garments that are relatively cool and easy to iron.
7.14 Drying Controller (Volumendrystat)
The drying controller is in the solvent drain line from the airshaft to the water separator.
During the drying process, the recovered solvent cools a sensor.
The drying process continues to run until the specified sensor temperature
has been reached.
703888-12-0
P12
