53
11 Maintenance 11

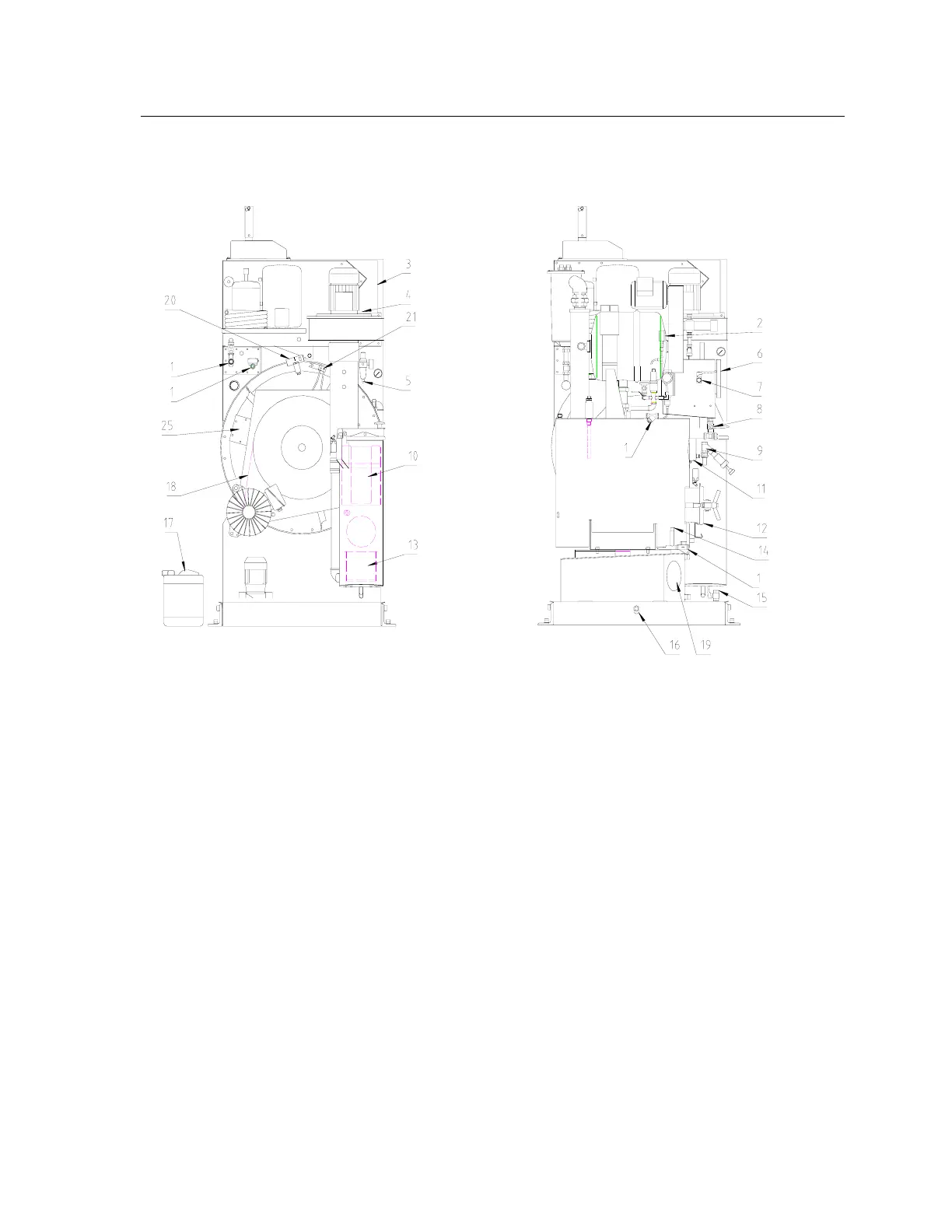

11.2 Maintenance Points
11.2
Slimline
707757-09-0
707757-10-0
1 Strainer (23)* Safety separator drain
2 Pressure gauge, steam generator (elec.) (24)* Sight-glass, safety separator
3 Inspection cover for air cooler 25 Inspection cover, cage flange
4 Grease nipple, fan (26) Detergent solution cooler drain
5 Compressed air drain (27) Water supply strainer for
6 Sight-glass, water separator distillation (elec.) with water addition
7 Water drain valve (28) Venting and aeration filter
8 Water separator drain
9 Gas displacement line connection
10 Lint filter Additional maintenance points
11 Sight-glass, still - Sight-glasses, tanks 1 + 2 (front side)
12 Still rake-out door - Overfill sensor, disposal vessel
13 Button trap strainer - Filter pressure gauge (Front)
14 Filler stub for water (elec) - Sight-glass, filter circuit (front)
15 Solvent filling valve
16 Strainer for water supply
(machine with tank cooler)
17 Process water collecting tank
18 V belt
19 Sight-glass, tank 3
20 Drying controller * Only on machines that conform
21 Grease nipple, cage to the EN ISO 8230 standard
(22)* Process water drain valve
