11 Maintenance 11
Crossline
707757-11-0

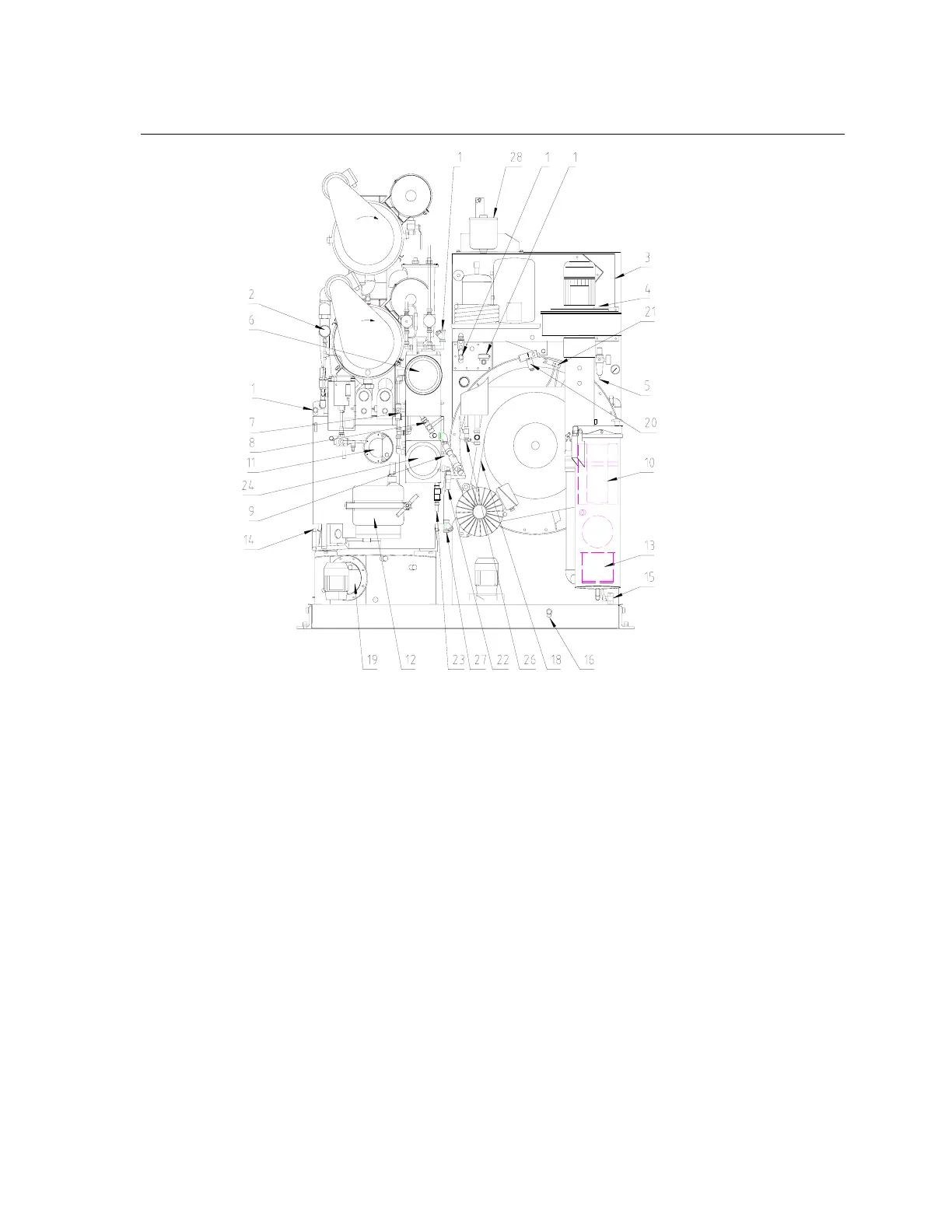

1 Strainer 23* Safety separator drain
2 Pressure gauge, steam generator (elec) 24* Sight-glass, safety separator
3 Inspection cover for air cooler (25) Inspection cover, cage flange
4 Grease nipple, fan 26 Detergent solution cooler drain
5 Compressed air drain 27 Water supply strainer for
6 Sight-glass, water separator distillation (elec.) with water addition
7 Water drain valve 28 Venting and aeration filter
8 Water separator drain
9 Gas displacement line connection
10 Lint filter Additional maintenance points
11 Sight-glass, still - Sight-glasses, tanks 1 + 2 (front side)
12 Still rake-out door - Overfill sensor, disposal vessel
13 Button trap strainer - Filter pressure gauge (front)
14 Filler stub for water (elec) - Sight-glass, filter circuit (front)
15 Solvent filling valve
16 Strainer for water supply (machine
with tank cooler)
(17) Process water collecting tank
18 V belt
19 Sight-glass, tank 3
20 Drying controller
21 Grease nipple, cage * Only on machines that conform
22* Process water drain valve to the EN ISO 8230 standard
