BÖWE P 12 - Water Separator

37
7 Functional Units 7

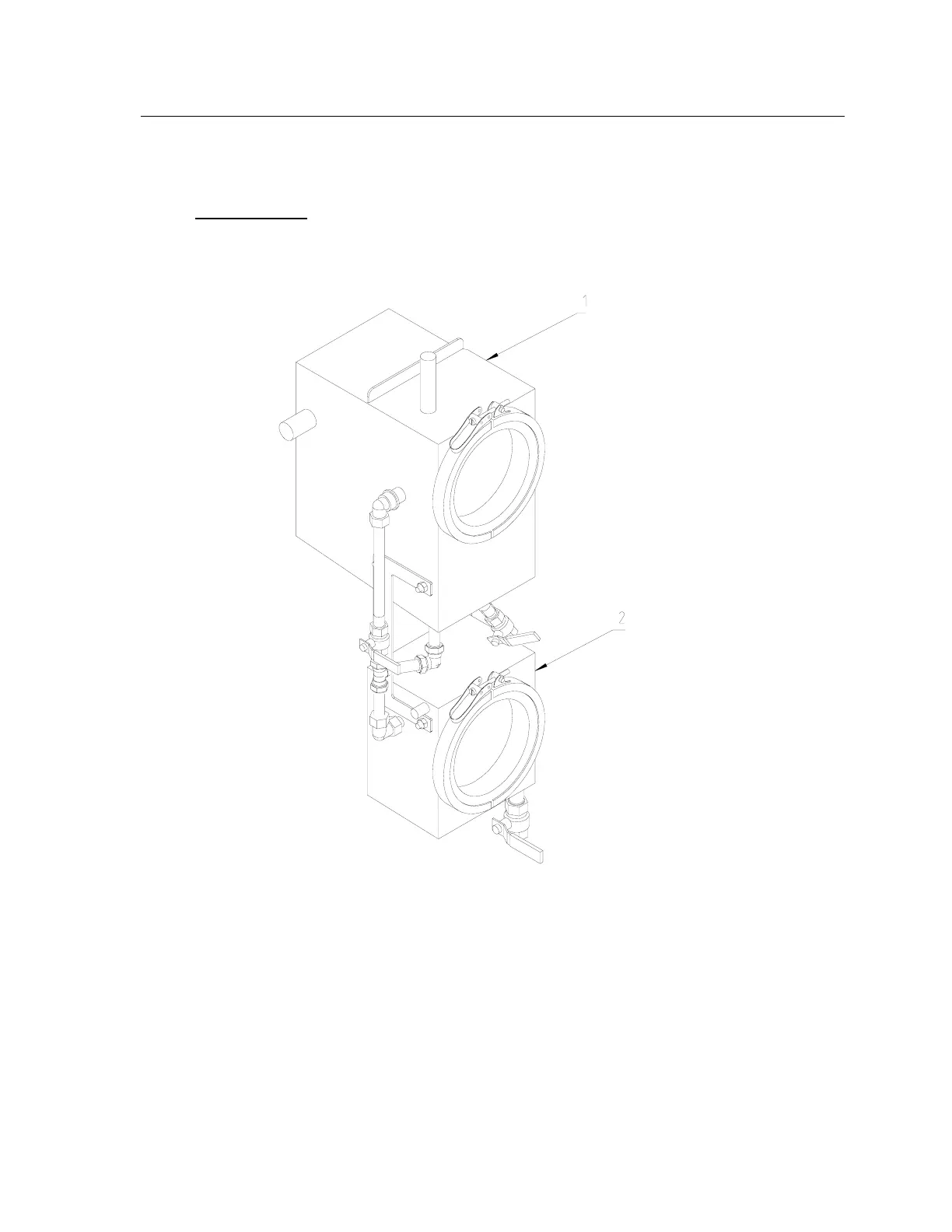

7.18 Water Separator
7.18
The distillation and recovery rates can be observed at the water separator inlet.
The water phase from the water separator flows continuously to the process water
tank or safety separator
(optional equipment) and the solvent flows to the clean tank.
707757-04-0
P12
