46

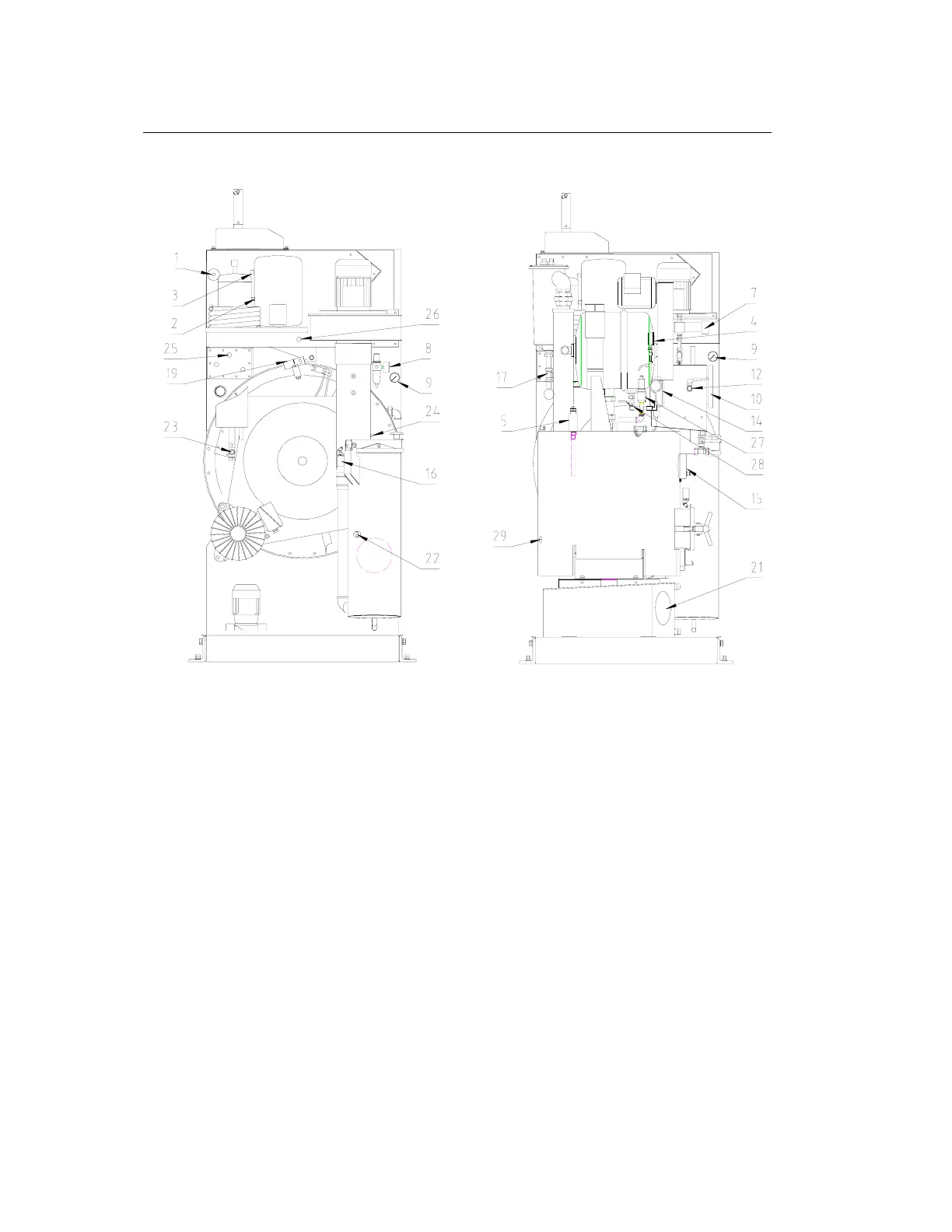

10 Operating and Monitoring Systems 10
Slimline
707757-06-0 707757-07-0
1 Sight-glass, refrigeration unit 17 Thermal sensor, distillation condenser
2 High pressure control switch,
refrigeration unit
(18) SPP sprayer
3 Low pressure control switch, refrigeration
unit
19 Drying time controller
4 Pressure gauge, steam pressure (elec.) (20)** Sight-glass, safety separator
5 ** Distillation overfill preventer 21 Sight-glass, tank 3
(6) Cooling water regulator, refrigeration unit 22 Sensor, high level
7 Cooling water regulator, distillation 23 Thermal sensor, solvent
8 Pressure gauge, compressed air 24 Thermal sensor, cage outlet
9 Safety thermostat, air heater (elec) 25 Thermal sensor, air heater (elec.)
10 Sight-glass, water separator 26 Thermal sensor, aftercooler
(11) Pushbutton, dosing unit 27 Safety valve, steam heater (elec.)
12 Water drain valve 28 Aeration valve, steam heater (elec.)
(13) Dosing unit 29 Thermal sensor, distillation
14 Pressure control switch, steam chest
distillation (elec)
(30) Heating element, overheating
protection (elec.)
15 Sight-glass, still
16 Limit switch
P12
