7 Functional Units
7.6 Cartridge Adsorption Filter
(Optional equipment /USA standard)

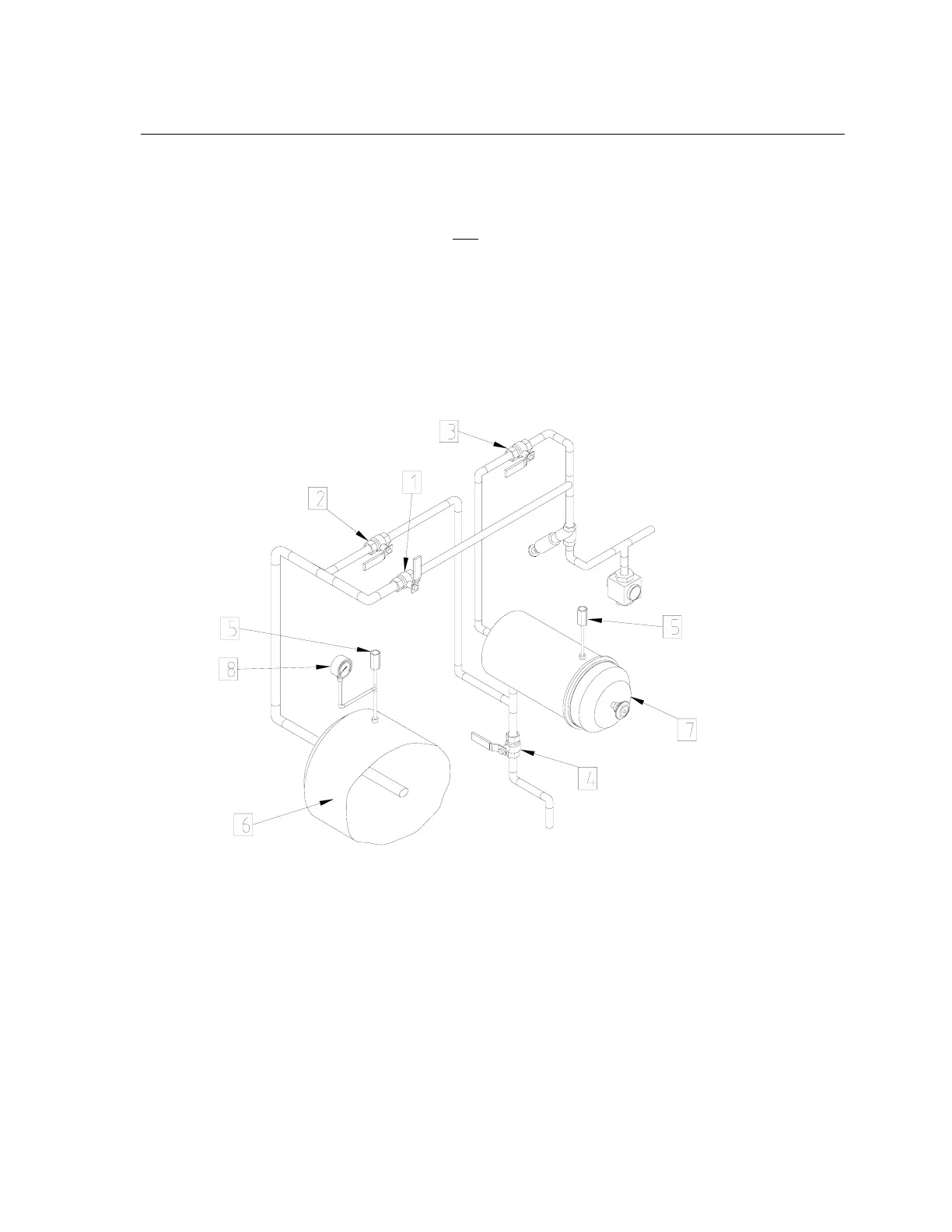

Cartridge adsorption filter 1 (cartridge adsorption filter 2 is optional equipment)
The reason for using both the economy filter and
the cartridge adsorption filter on one machine is that
this provides separate filtration of pigment dirt and soluble dirt (fatty acids, dyes).
The insoluble pigment dirt is separated with the help of the extraction filter
and the soluble dirt is adsorbed on the cartridge.
If the solvent discolors during the cycle, it is possible to manually activate the cartridge filter (7) in the
filter circuit after the economy filter (6).
703867-11-A
Steps for activating the cartridge filter:
- Open ball valves (2) and (3)
- Close ball valve (1)
If you want to remove the filter from the solvent circuit again and use only the economy
filter, make the following setting by hand:
- Open ball valve (1)
- Close ball valves (2) and (3)
