Operating Controls
2.6

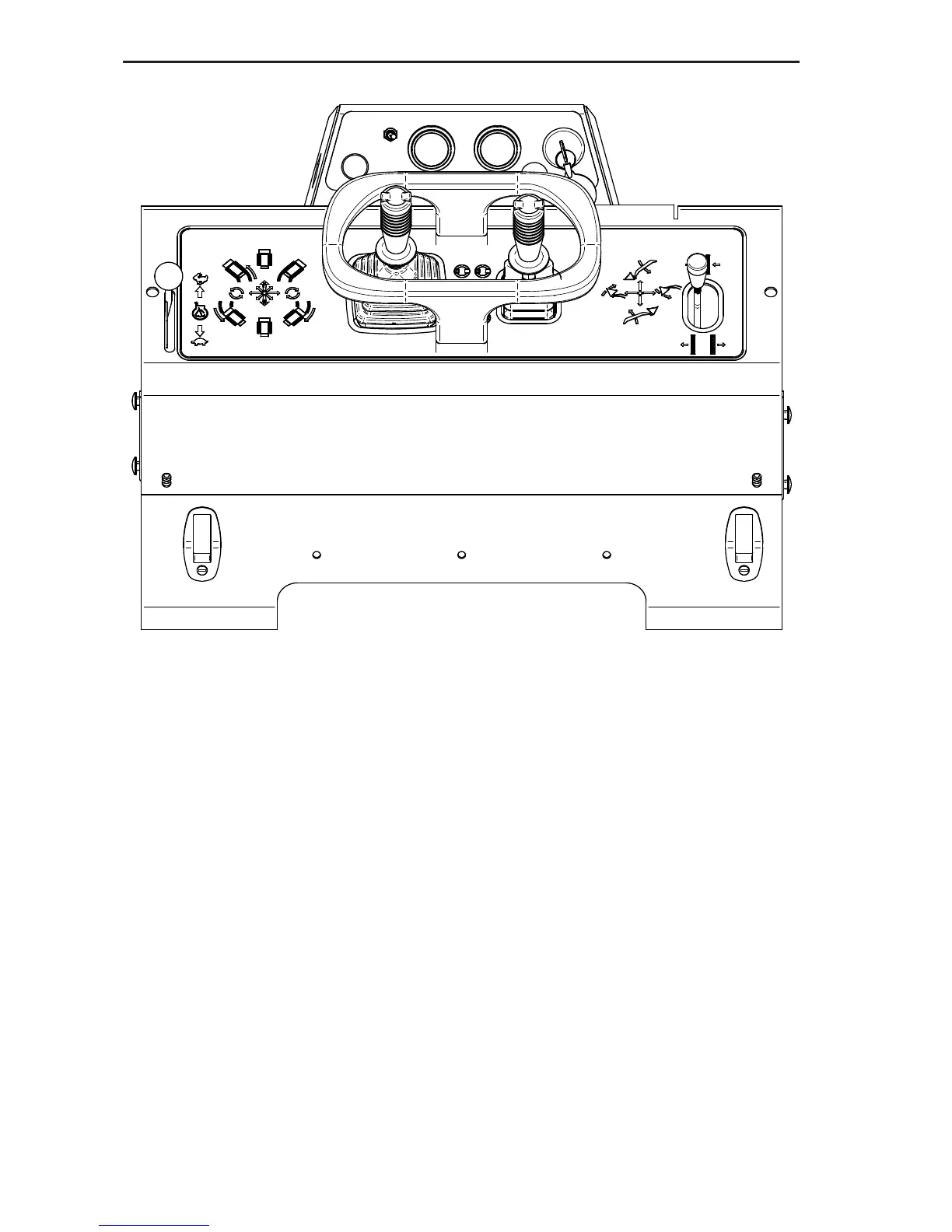

Operating Controls Description
1. Engine Coolant Temperature Gauge – Gauge indicates the temperature of the
engine coolant.
2. Engine Oil Pressure Gauge – Gauge indicates the engine oil pressure when the
engine is running.
3. Ignition Switch – Rotating the key switch to the left activates the engine glow plug.
Rotating the key switch one position to the right turns on the electrical controls.
Rotating the switch fully to the right activates the engine starter.
4. Ignition Key
5. Track Widen Control – Pushing the lever forward retracts the track. Pulling the
lever backwards widens/expands the track to the normal track width.
6. Right Joystick – Push joystick forward to lower the boom arm. Pull joystick
backwards to raise the boom arm. Push joystick to the right to tilt the attachment
to the down position. Push the joystick to the left to tilt the attachment to the up
position.
7. Left Joystick – Push the joystick straight forward to move the machine forward.
Push the joystick forward and slightly left to turn left while moving forward. Push
the joystick forward and slightly right to turn right while moving forward. Pull the
joystick straight backwards to move the machine in reverse. Pull the joystick
