Pre Start Inspection and Operation
3.13

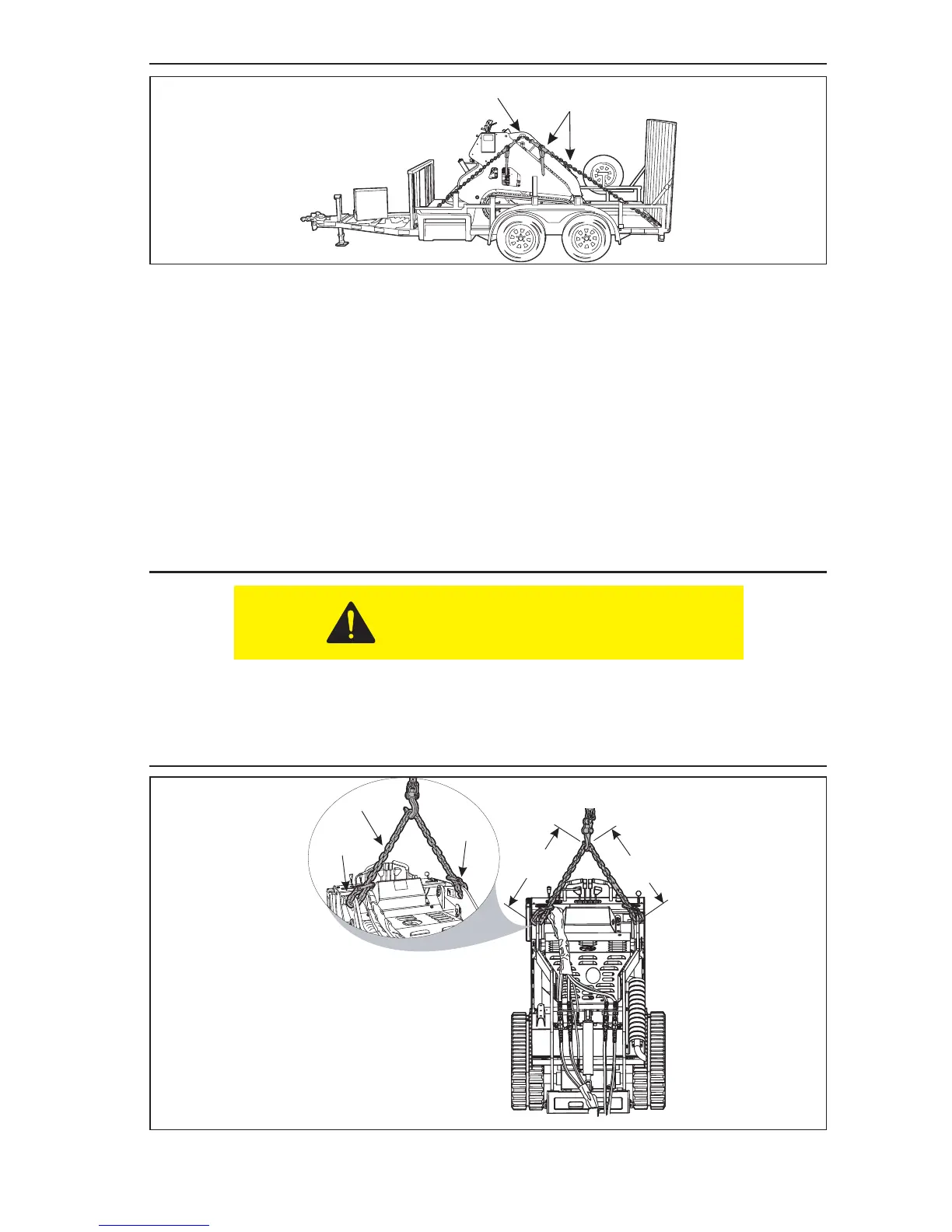

Figure 3-14 Travel Chains and Binders
Lifting Procedures
When it becomes necessary to lift the machine
1. Use a lifting device that can safely lift 4,000 lbs (1820 Kg).
2. Use appropriate lifting chains (Item 1, Figure 3–15) that can safely lift 4,000 lbs
(1820 Kg).
3. Route the chains through the lifting eyes (Item 2, Figure 3–15) located at the top
of the boom arms.
4. Make sure that the length of chain on each side of the lifting point is the same
(Item 3 A, Figure 3–15) is the same as (Item 3 B, Figure 3–15) so that the machine
is lifted straight upwards.
• Lift the machine approximately 12” to make sure that the machine is balanced
before completing the lift.
• If lifting the machine with an attachment installed, the overall machine may not
be balanced from front to back.
Figure 3-15 Machine Lifting
CAUTION
1
2
2
3 A
3 B
1
2
