BOXER 700HDX - Removal of Attachment; Installation of Hydraulically Powered Attachments

Pre Start Inspection and Operation
3.21
1. Position the attachment on a level surface.
NOTE: Clean the lower edge of the female attachment mounting plate to remove
any debris that might interfere with the attachment installation.
2. Start the machine engine, lower the loader arm and tilt the mounting plate
forwards
NOTE: Make sure that both of the attachment lock pins (Item 1, Figure 3–31) are
in the “unlocked” position.

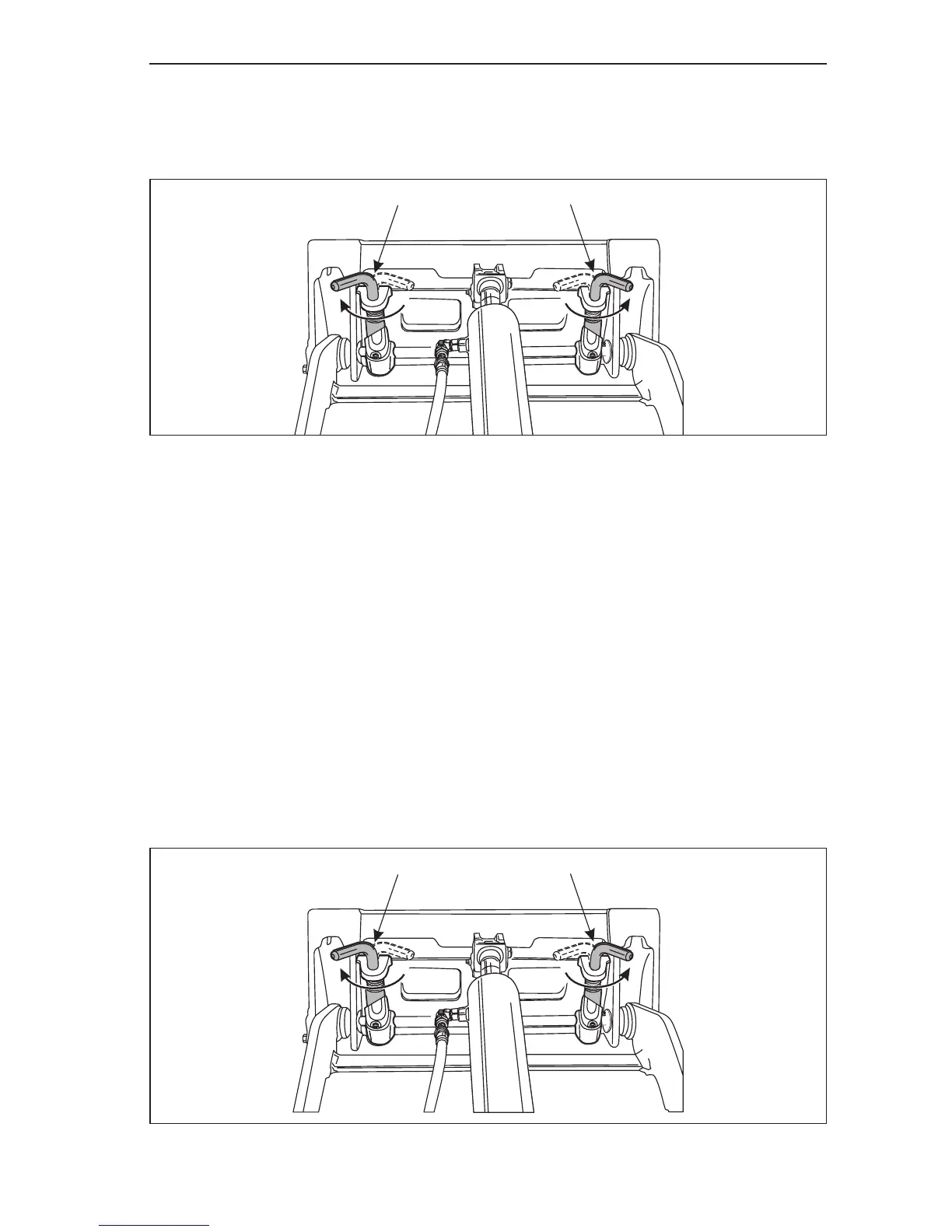

Figure 3-31 Attachment Locks in Unlocked Position
Removal of Attachment
1. Lower the attachment onto a rm, level surface.
2. Shut off the machine engine.
3. Rotate the attachment lock pins to the UNLOCKED position (Item 1, Figure 3–30).
Figure 3-30 Attachment Locks in Unlocked Position
4. Start the engine and rotate the mounting plate downwards.
5. Back away from the attachment.
NOTE: It may be necessary to lower the loader arm assembly slightly to fully
disengage from the attachment.
Installation of Hydraulically Powered Attachments
There are many hydraulically powered attachments available that are very easy to install. To
install any of these attachments:
1
1
Pins Unlocked
1
1
Pins Unlocked
