Pre Start Inspection and Operation
3.19
Installation of Non-Hydraulically Powered Attachments
Make sure to keep your hands and feet away from the attachment during the unlocking
process. As the attachment becomes free from the machine, it may move.

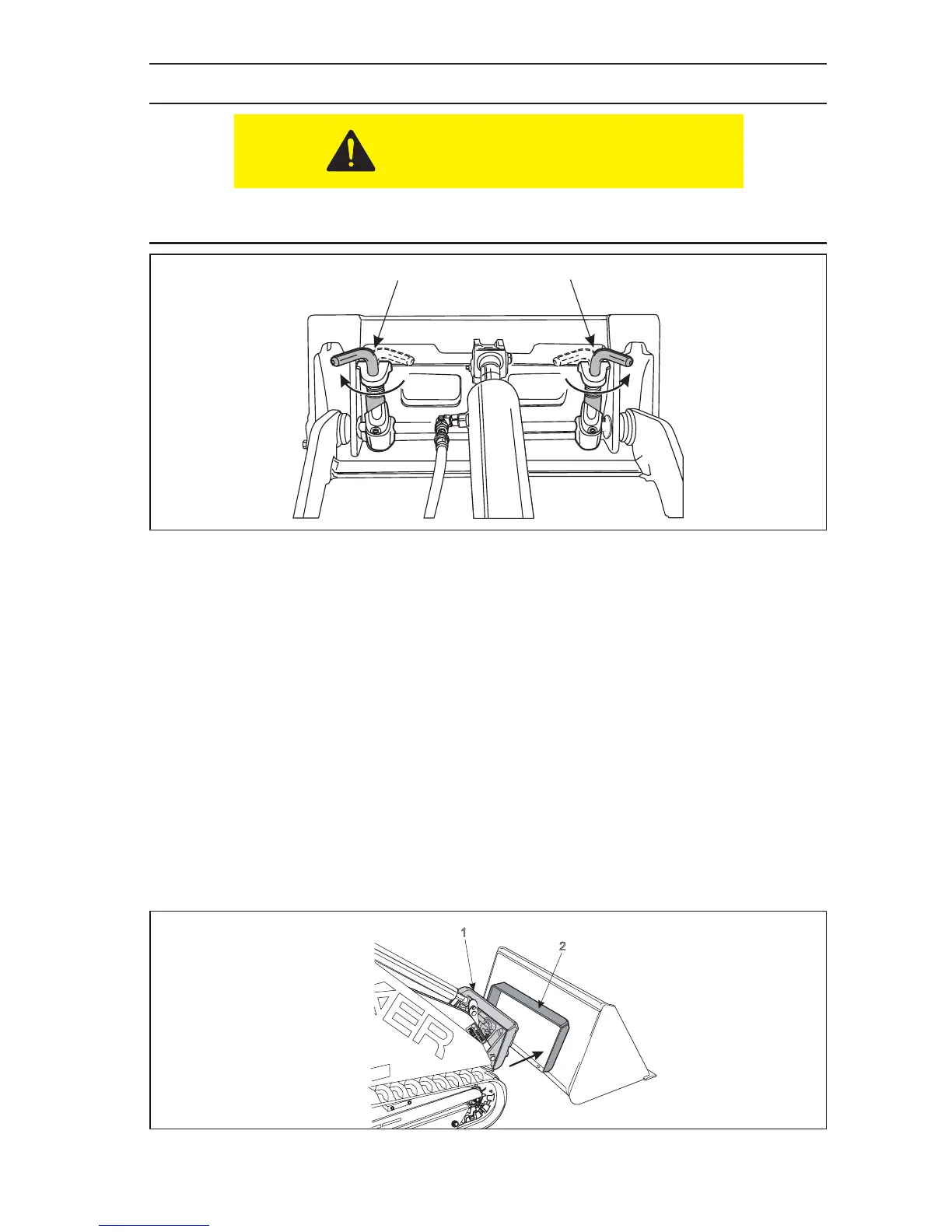

Figure 3-26 Attachment Locks in Unlocked Position
There are many available attachments that are very easy to install. To install any of the non-
hydraulically powered attachments:
1. Position the attachment on a level surface.
NOTE: Clean the inside lower edge of the female attachment mounting plate (Item
2, Figure 3–27) to remove any debris that might interfere with the attachment
installation.
2. Start the machines engine, lower the loader arm and tilt the mounting plate
forwards
NOTE: Make sure that both of the attachment lock pins (Item 1, Figure 3–26) are
in the “unlocked” position. Refer to “Attachment Lock Pins” on page 3-18.
3. Slowly drive towards the attachment and align the top edge of the male mounting
plate (Item 1, Figure 3–27) and the upper lip of the female attachment mounting
plate (Item 2, Figure 3–27). Slide the upper edge of the male mounting plate into
the upper lip of the female attachment mounting plate.
Figure 3-27 Installing a Non-powered Attachment
1
1
Pins Unlocked
1
2
CAUTION
