Pre Start Inspection and Operation
3.22
3. Slowly drive towards the attachment and align the top edge of the male mounting
plate (Item 1, Figure 3–32) and the upper lip of the female attachment mounting
plate (Item 2, Figure 3–32).
Make sure to position the attachments hydraulic hoses (Item 4, Figure 3–32) so that they are
not damaged during the installation process.
4. Tuck the upper edge of the male mounting plate into the upper lip of the female
attachment mounting plate.

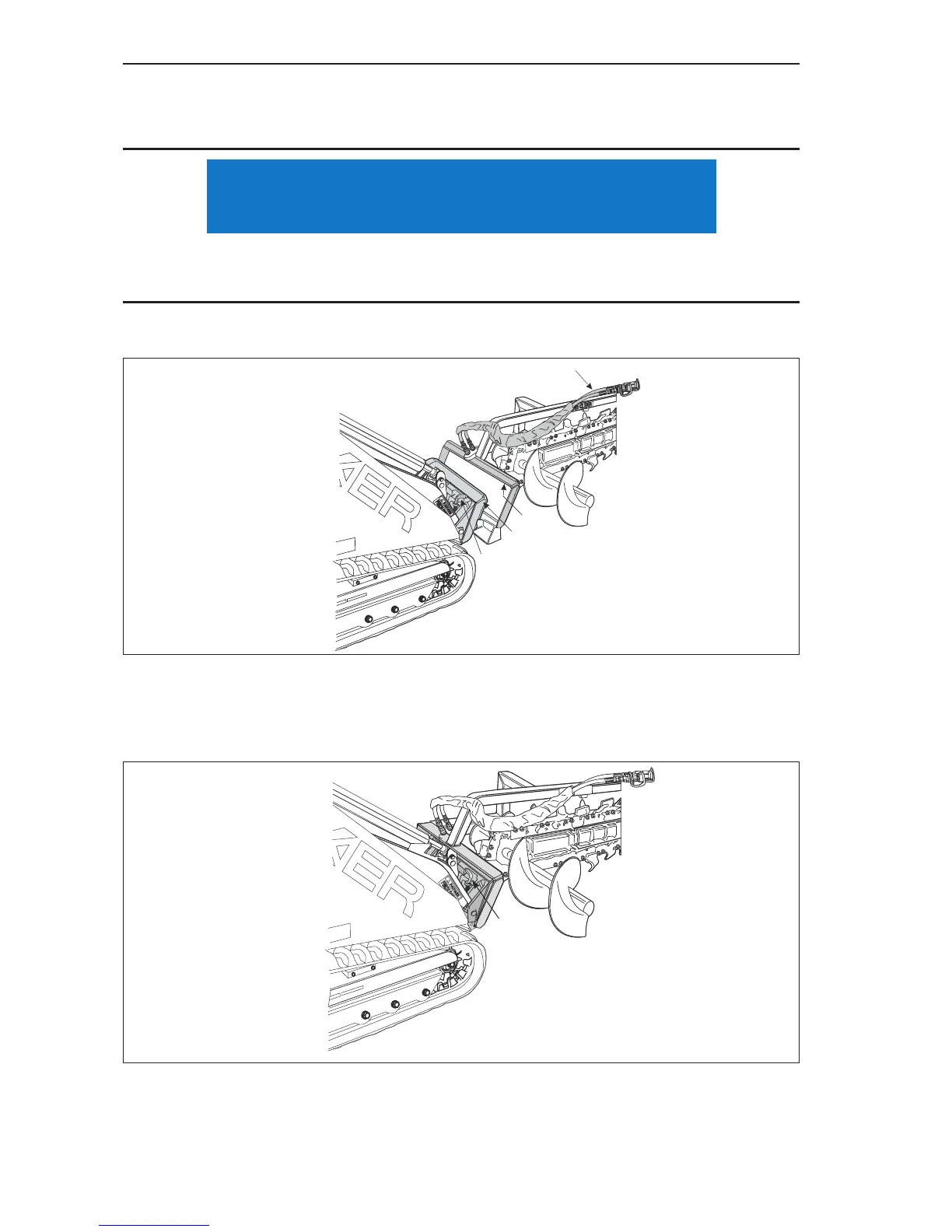

Figure 3-32 Hydraulically Powered Attachment Installation
5. When the machines mounting plates top edge is seated in the attachment
mounting plate, tilt the machines mounting plate backwards slightly to allow the
lower edge of the machines mounting plate to slide into position. See Figure 3–33.
Figure 3-33 Hydraulically Powered Attachment Installed
NOTICE
3
2
1
4
