BOXER 700HDX - Page 56

Routine Service and Maintenance
4.3
3. Check engine oil -
a. Make sure that the engine is OFF.
b. Pull out the dipstick (Item 1, Figure 4–2) and look for the “FULL” line.

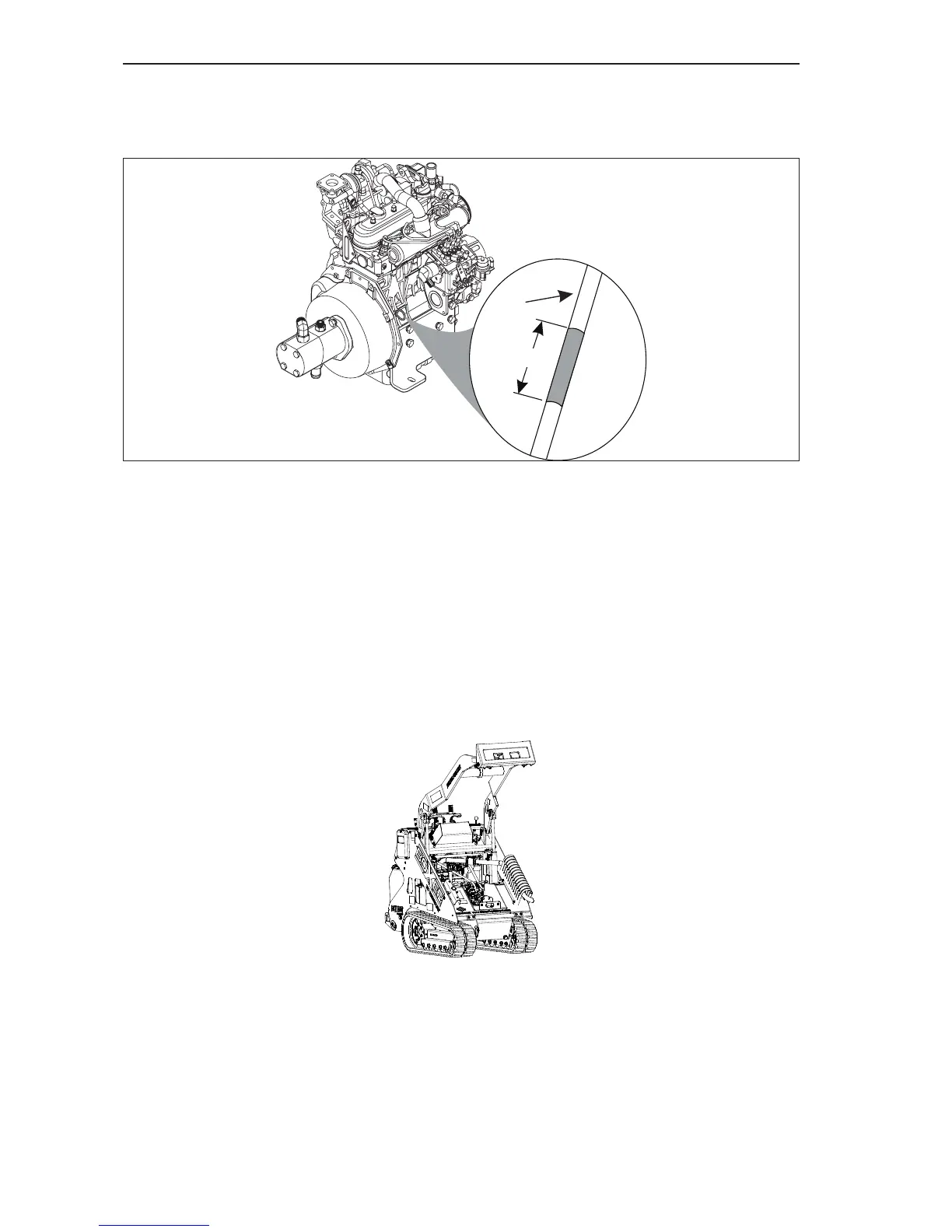

Figure 4-2 Oil Level Check
c. If the engine oil level is below the add line, indicated by the letter “A” on the dipstick,
carefully add the proper amount of oil through the engine oil ller (Item 1, Figure
4–3). The correct SAE viscosity grade of oil is determined by the minimum ambient
temperature during cold engine start-up, and the maximum ambient temperature during
operation. The engine is lled at the factory with Chevron Delo 400 Multigrade SAE
15W-40. The recommended ambient temperature range for this oil is 14° F (-10° C)
minimum to 122° F (50° C) maximum. Refer to the engine Operation and Maintenance
Manual for additional information on the proper selection of engine oil.
NOTE: Make sure to reinstall and secure the oil ller cap.
Figure 4-3 Engine Oil Fill
NOTE: Extremely dusty or dirty working conditions may require more frequent
checking, lling and/or changing of engine oil.
d. After lling the oil, wait a few minutes and check the oil level again.
e. Make sure to securely reinstall the dipstick into the dipstick tube before starting the
engine.
