Routine Service and Maintenance
4.9

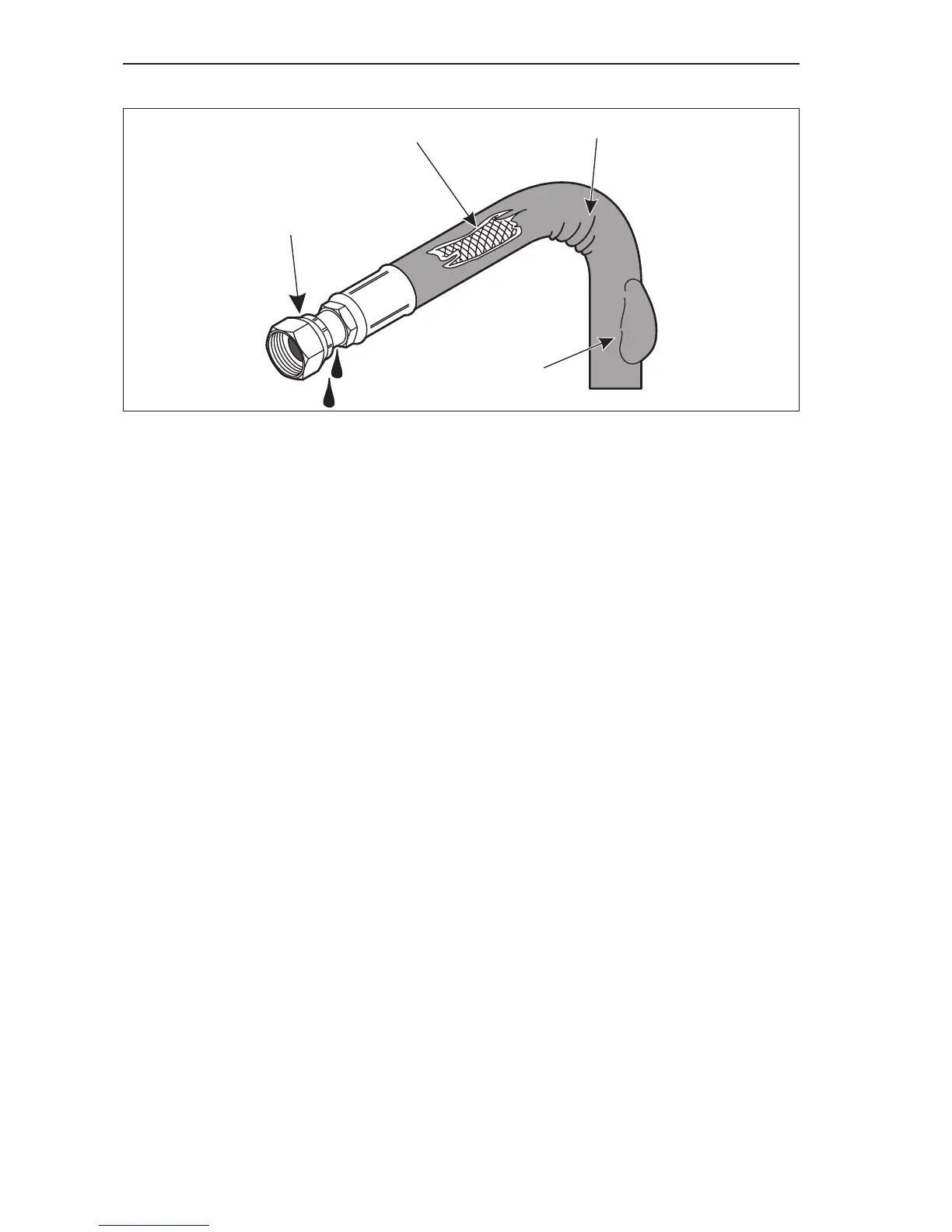

e. Some examples of common hydraulic hose damage are shown in Figure 4–9:
Figure 4-9 Hydraulic Hose Damage
9. Lubricate pivot shafts with grease. There are 14 lubrication points on this machine,
see Figure 4–10.
Figure 4-10 Lubrication Points
NOTE: Extremely dusty or dirty working conditions may require more frequent
service/replacement.
1. End ttings damaged or leaking.
2. Outer covering chafed or cut, and wire reinforcing is exposed.
3. Hose shows signs of kinking or crushing.
4. Outer covering ballooning
1
3
4
2
