Routine Service and Maintenance
4.11

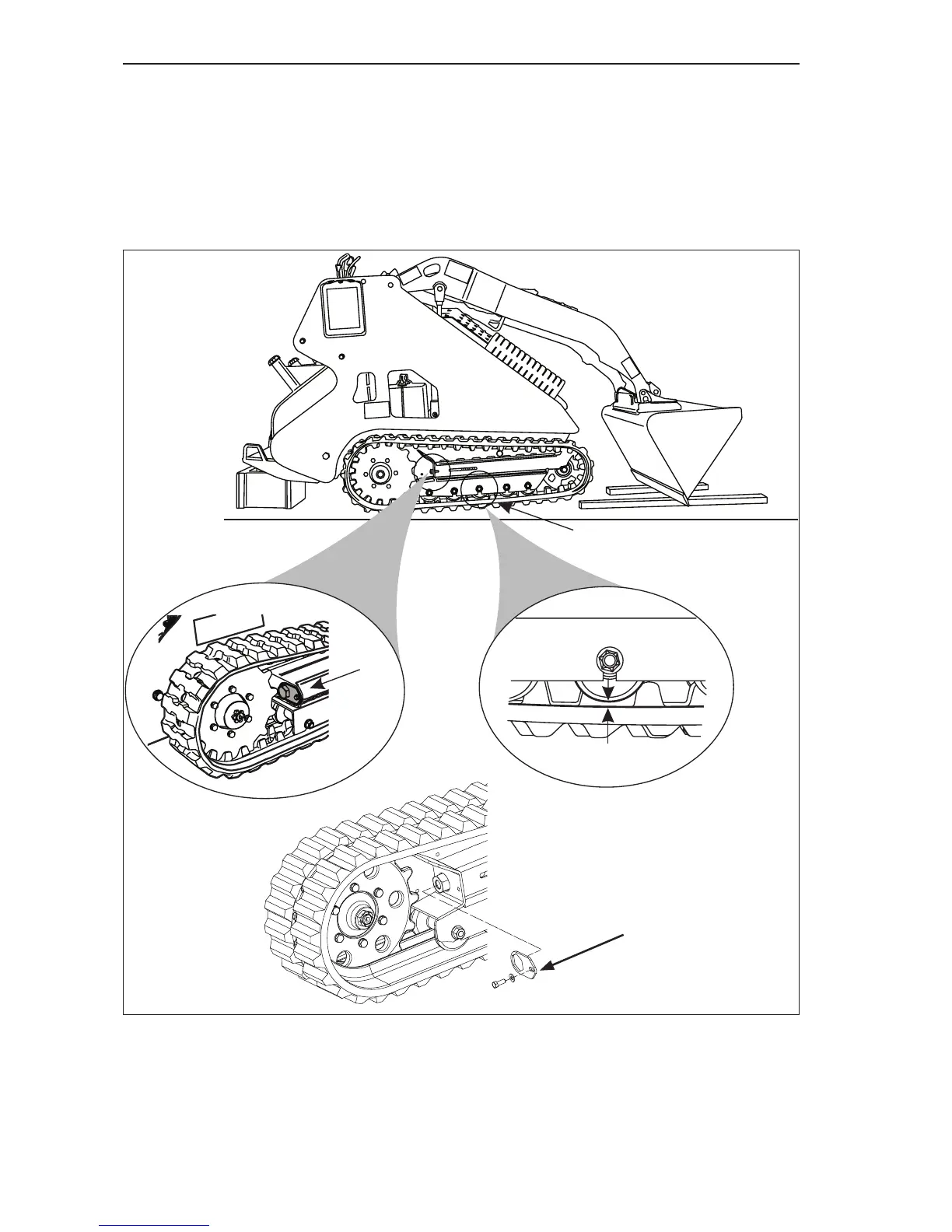

Figure 4-11 Track Deection Measurement and Adjustment
NOTE: The distance between the inner edge of the mounting block and inner
edge of the stop bolt head must be 6 3/4” (17 cm). If this measurement is not
maintained, damage to the machine may occur.
b. Make sure that the stop bolt lock nuts (Item 2, Figure 4–12) are tight against the
mounting block (Item 3, Figure 4–12).
c. Make sure to check both track assembly stop bolts.
1
2
1/4”-3/8”
3
