Routine Service and Maintenance
4.13
13. If the stop bolt lock nut (Item 3, Figure 4–13) is loose, check the distance between
the mounting block (Item 4, Figure 4–13) and bottom side of the bolt head (Item 1,
Figure 4–13). The correct measurement is 6 3/4” (17 cm) from the outside edge of
the stop block to the bottom edge of the head of the stop bolt (Item 1, Figure 4–13).
14. If an adjustment to the track widening stop bolt is required,
a. Loosen the lock nut (Item 3, Figure 4–13),
b. Rotate the stop bolt (Item 2, Figure 4–13) to set the correct measurement of 6 3/4” (17
cm) from the outside edge of the stop block to the bottom edge of the head of the stop
bolt (Item 1, Figure 4–13).
c. After adjusting the stop bolt, make sure to fully tighten the lock nut, securing the stop
bolt.
NOTE: The distance between the inner edge of the mounting block and inner
edge of the stop bolt head must be 6 3/4” (17 cm). If this measurement is not
maintained, damage to the machine may occur.

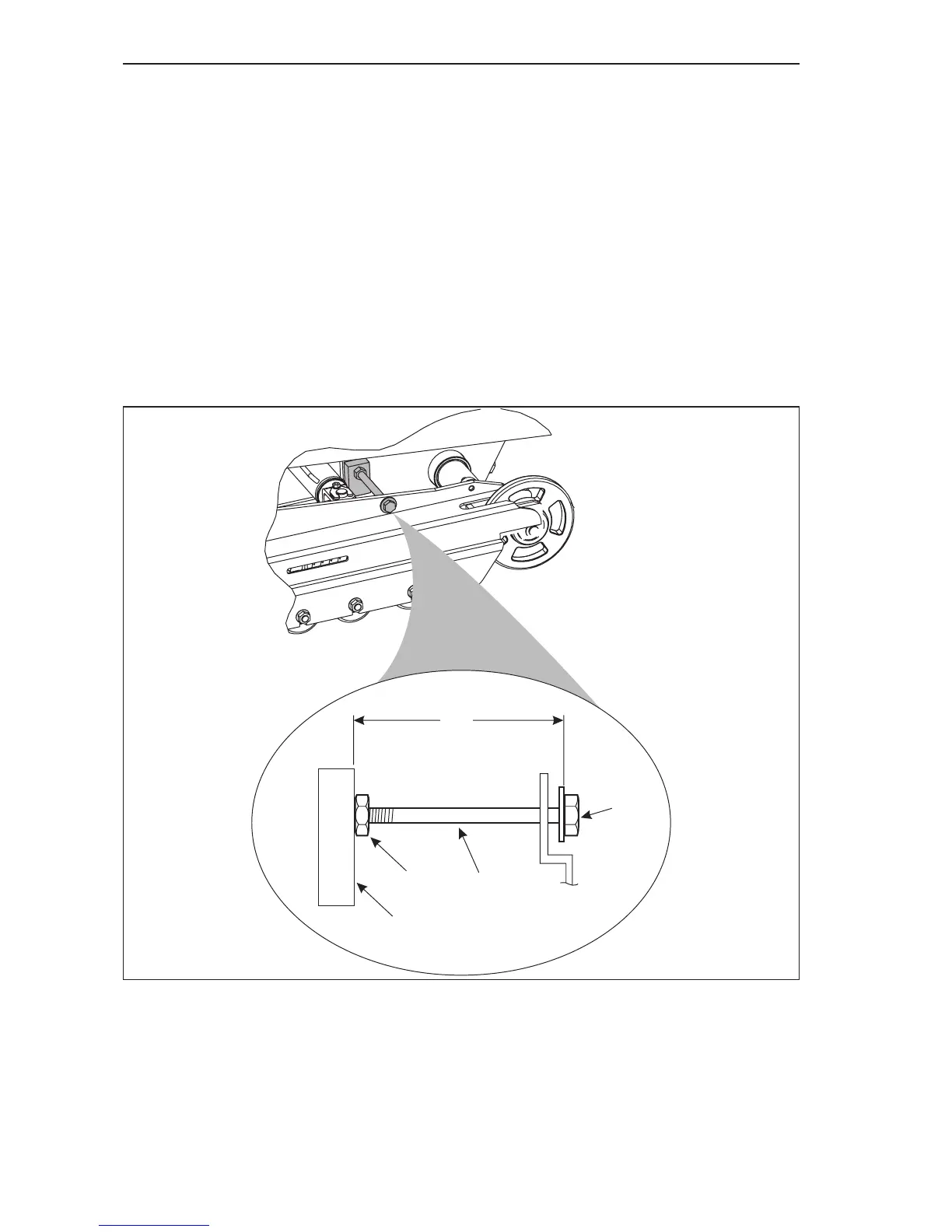

Figure 4-13 Track Widening Stop Bolt Adjustment
1
2
3
6 3/4”
4
